New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
1 / 4
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve
New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve

New Arrival Usun Model: Us-2gbd60 300-500 Bar High Pressure Double Action Nitrogen Gas Booster Pump System with Pressure Valve

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.US-GBD60
Power SupplyPneumatic
Warranty1 Year
Product NameHigh Pressure Nitrogen Gas Booster Pump
MaterialStainless Steel & Aluminum
Drive Air Range3-10 Bar
Pump Ratio60:1
Max Output Pressure480 Bar
Working MediumAir, Nitrogen, Helium, Argon, CO2
HS Code8463900090

Product Description

Why Choose Our Pump System?

This pneumatic driven gas booster system offers a flexible and efficient source for delivering high pressure gases. It is designed to charge receivers to higher pressure levels, storing gas for rapid release at a constant pressure through reducing valves.

  • High Purity Cleaning: Handled with ultrasonic cleaners and customized lubricants for oxygen compatibility without contamination risk.
  • High Flow Rates: Efficiently maintains high flow at elevated pressures.
  • Cost Savings: Utilizes all gas from supply sources (like cylinders), boosting it to required pressures and reducing waste.

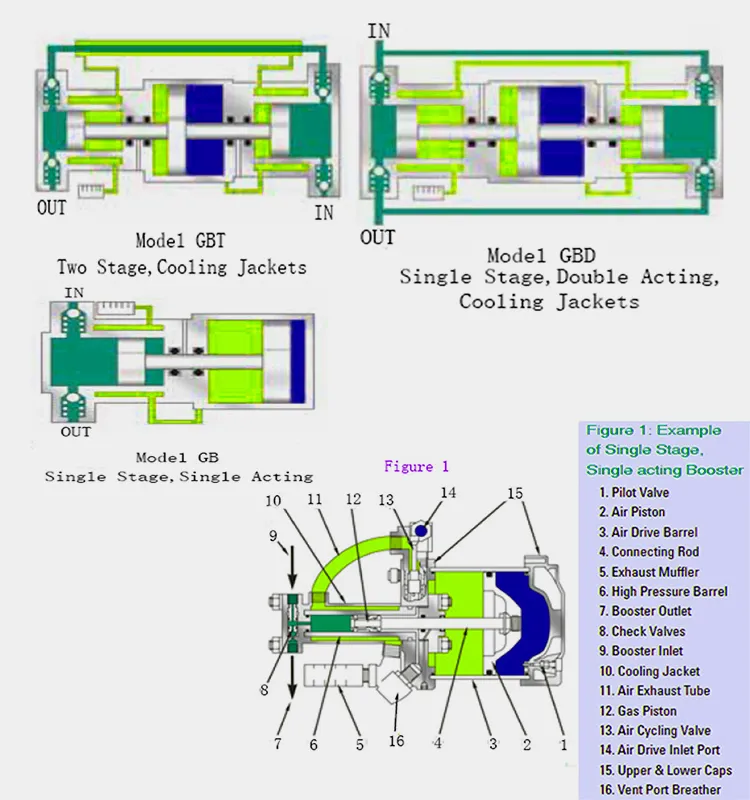

Nitrogen Gas Booster System

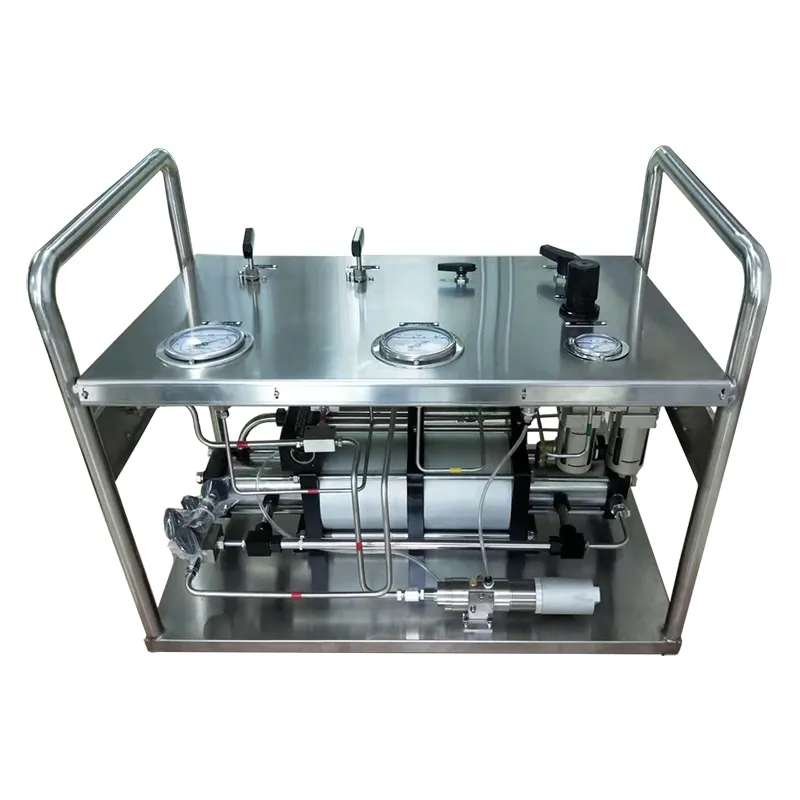

Double Action Gas Booster

Technical Specifications

Feature Details
Item ModelUS-2GBD60 High Pressure System
Action TypeDouble stage, single air drive
Air Driven Pressure3-10 Bar
Operating Temp-4°C to 65°C (Air driven) / Max 115°C (Gas barrel)
Suitable GasesNitrogen(N2), Helium(He), Breathing Air, CO2, Argon, Oxygen
Net Weight56 kgs
Dimension86 L x 53 W x 50 H CM

Key Features

Main Components
  • Reliable, easy to maintain, compact and robust design.
  • No heat, flame, or spark risk during operation.
  • Infinitely variable cycling speed and output.
  • No electrical connection required (Air driven models).
  • Seals designed for long working life; no airline lubrication required.
  • Built-in coupling system suitable for most gas boosting applications.

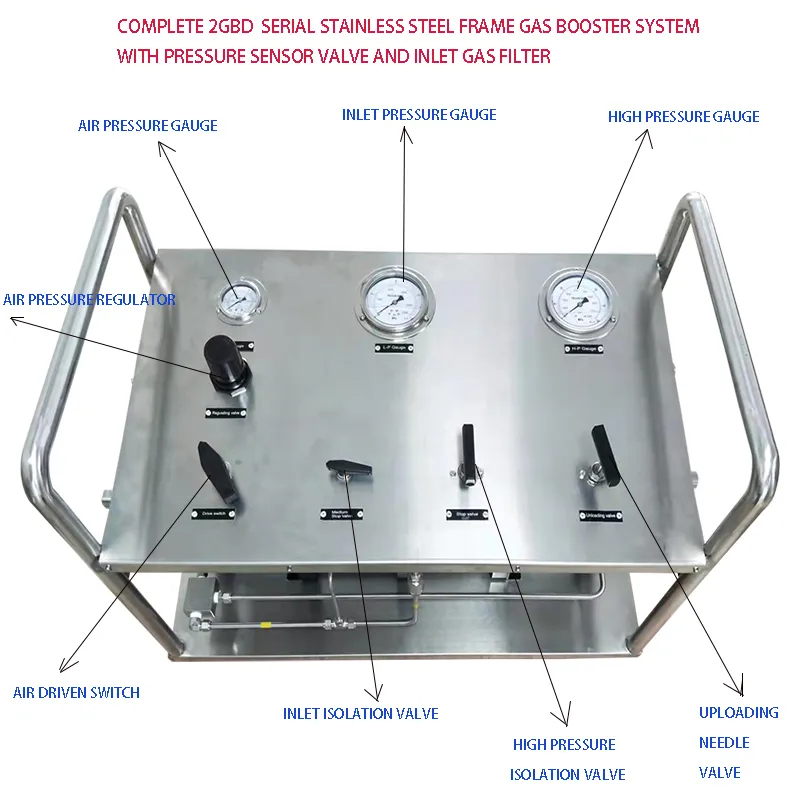

Main Components & Technical Data

List Items Function
Air Regulator ValveAdjusts air driven pressure (0-10 bar)
Pressure GaugesIndicates air drive, gas inlet, and gas outlet pressures
Hand Drive SwitchSystem ON/OFF control
Needle ValvesInlet, Outlet, and Uploading protection
GBD PumpCore unit to increase pressure

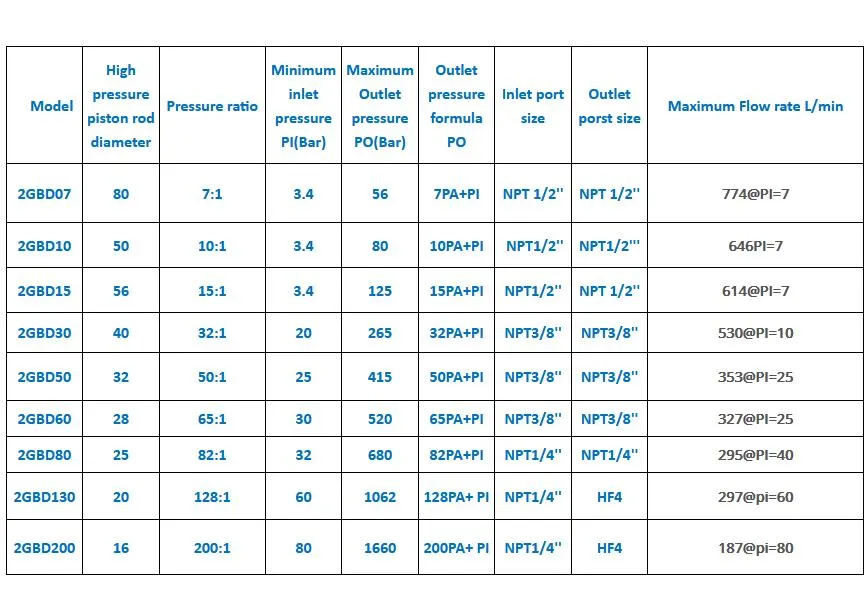

Technical Data Sheet

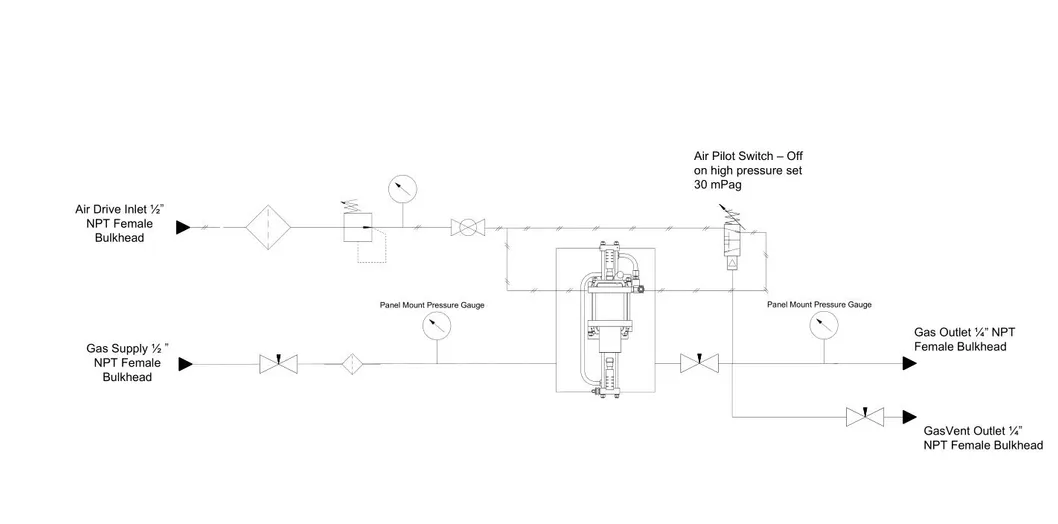

Product Diagram

Real Product Gallery

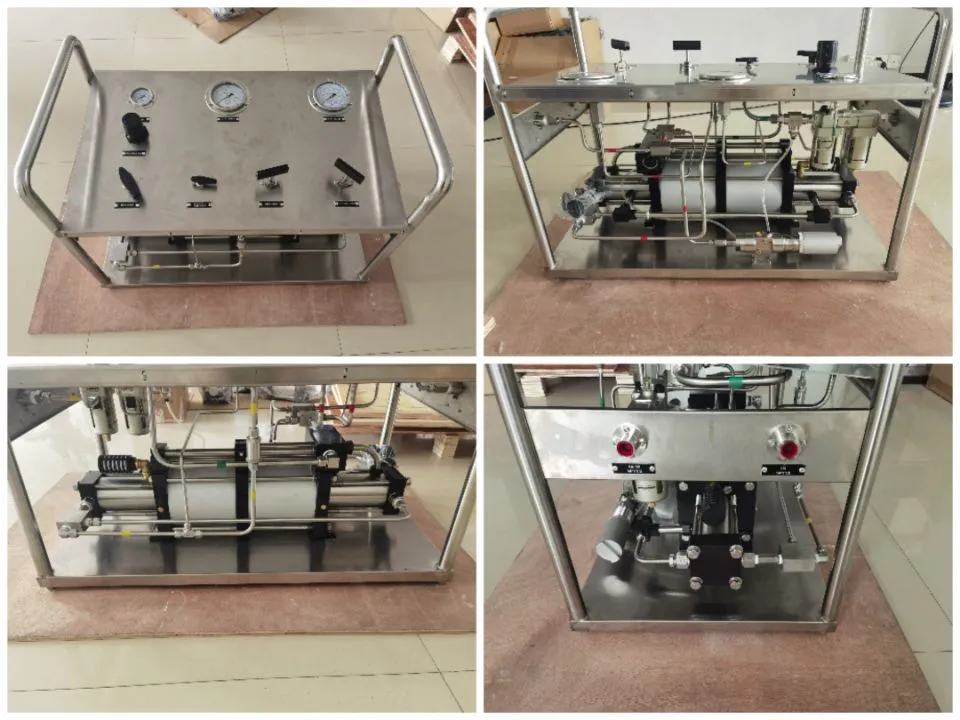

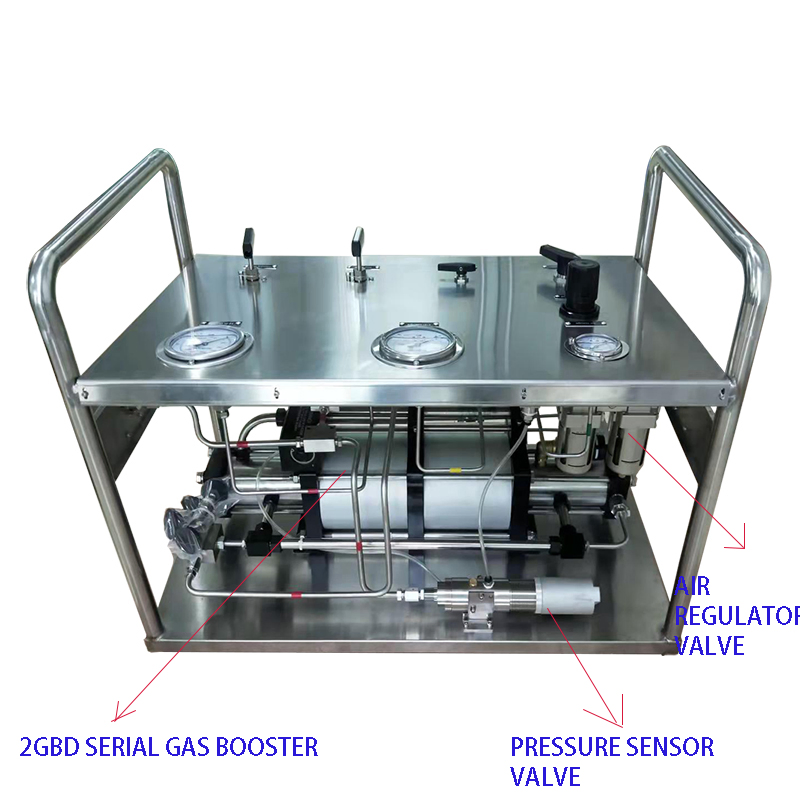

Pump System Real View
Packaging View

Packaging & Shipping

By SeaCheapest option, 18-30 days for mass shipment.
By AirCheaper than express, 5-7 days to airport.
By ExpressFastest door-to-door service (DHL/Fedex/UPS), 3-5 days.

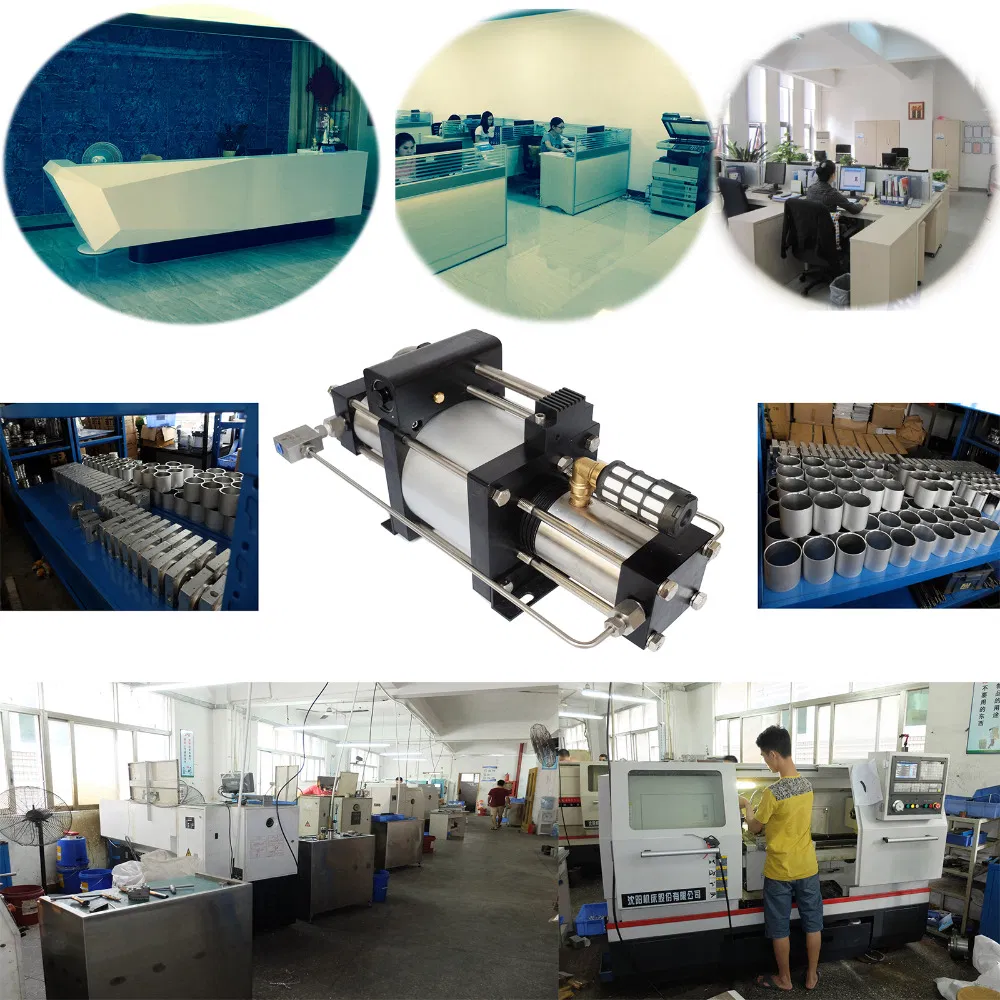

Factory Support 1

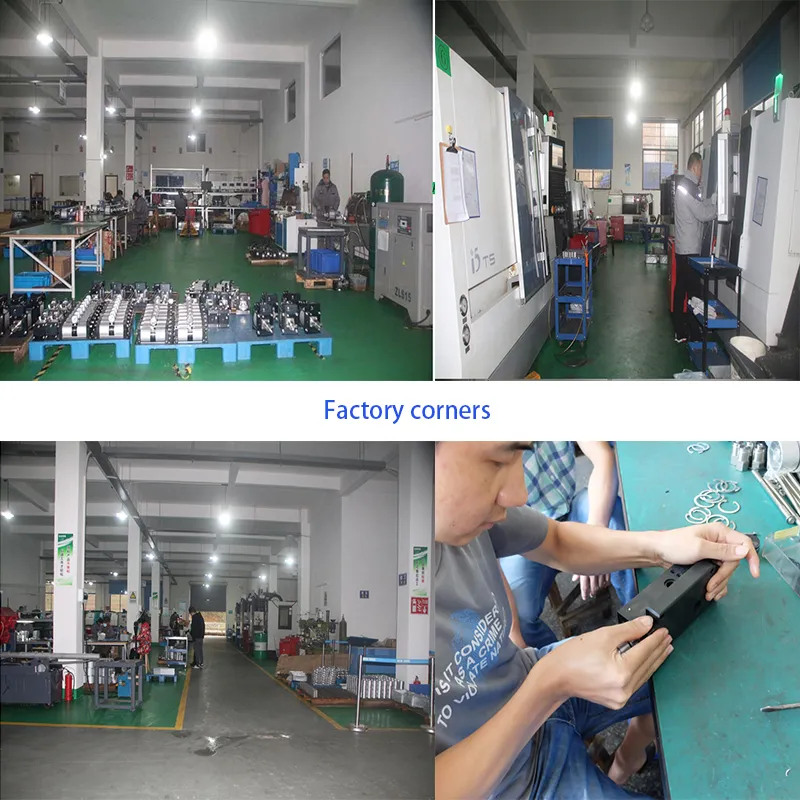

Factory Support 2

Frequently Asked Questions

1. What is the power source for this gas booster?
The system is pneumatic driven, meaning it operates using compressed air within a range of 3-10 Bar. No electrical connection is required.
2. Which gases can the US-GBD60 pump handle?
It is suitable for a wide range of gases including Nitrogen (N2), Helium (He), Argon (Ar), CO2, Oxygen (O2), and breathing air.
3. What is the maximum output pressure of this system?
The system can achieve a maximum output pressure of 480 Bar based on an 8 Bar air driven pressure.
4. Is the pump suitable for high-purity oxygen applications?
Yes, we provide high-purity cleaning using ultrasonic cleaners and specific lubricants to ensure no contamination occurs during oxygen boosting.
5. What materials are used in the construction?
The pump is constructed using high-quality Stainless Steel and Aluminum for durability and resistance to various working mediums.
6. What kind of warranty and technical support is provided?
The product comes with a 1-year warranty and we offer 24-hour technical support via email and other digital communication channels.
