| Model NO. | SHY-ZNGX1200 |

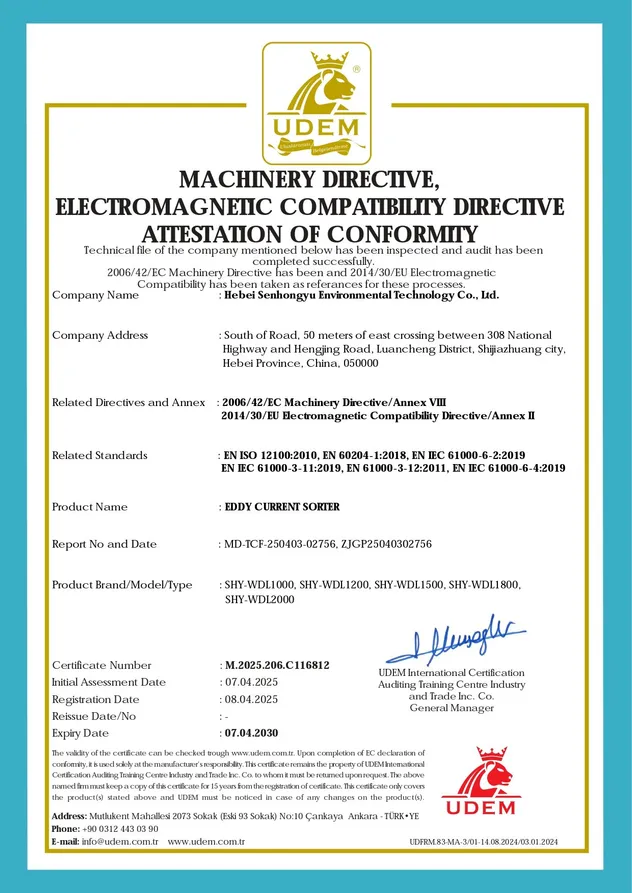

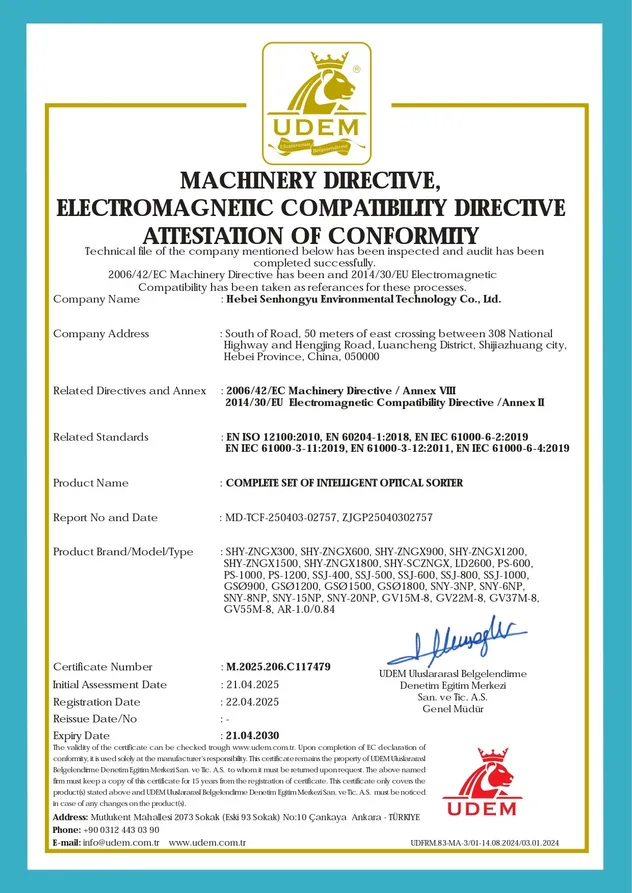

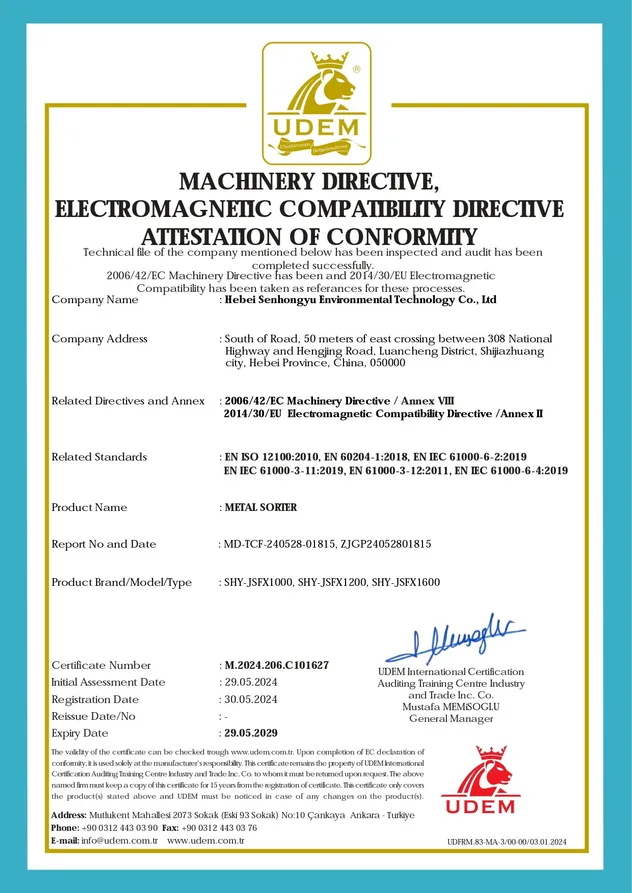

| Certification | GS, RoHS, CE |
| Application | Plastic, Nut, Metals, Glass, Stones, Wood, etc |
| Lens Number | 8 |
| Type | Straight-Line Conveyor |
| Machine Frame | Stainless Steel |
| Power | 2.25kw |
| Separate Rate | 99% |
| Smallest Separating Size | 0.02mm |

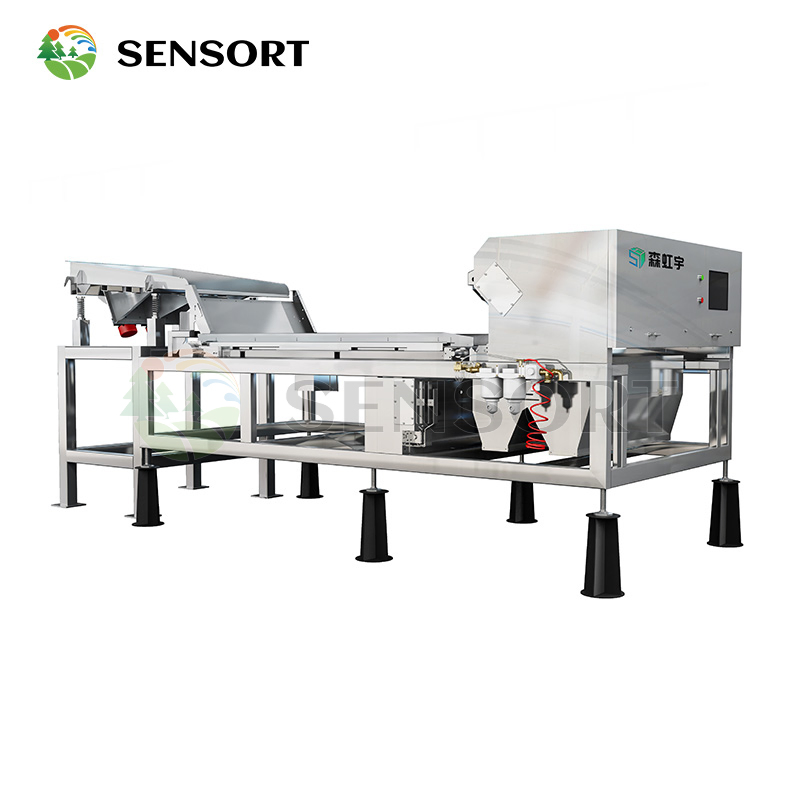

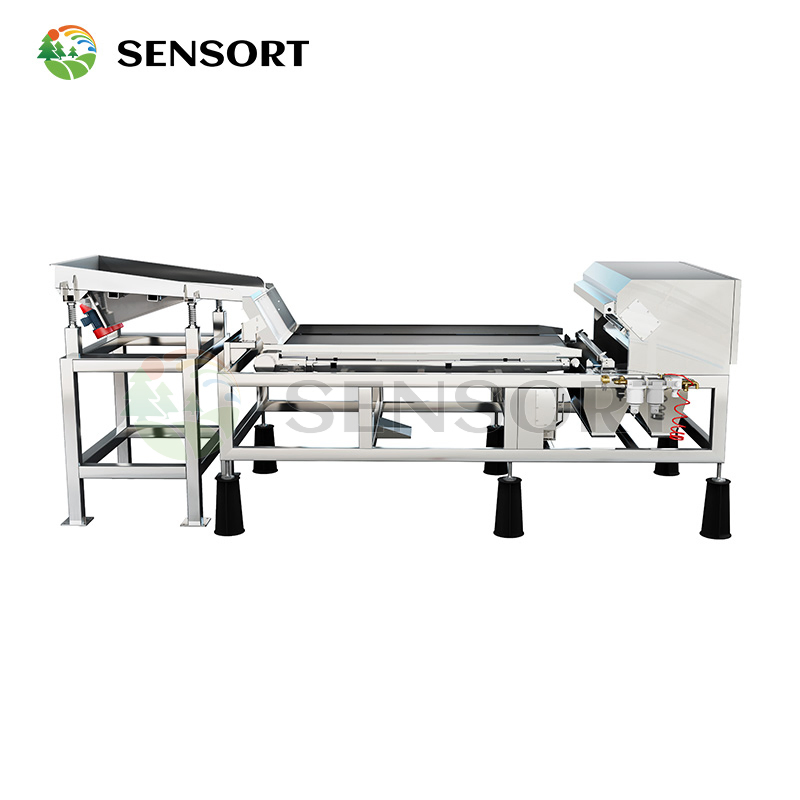

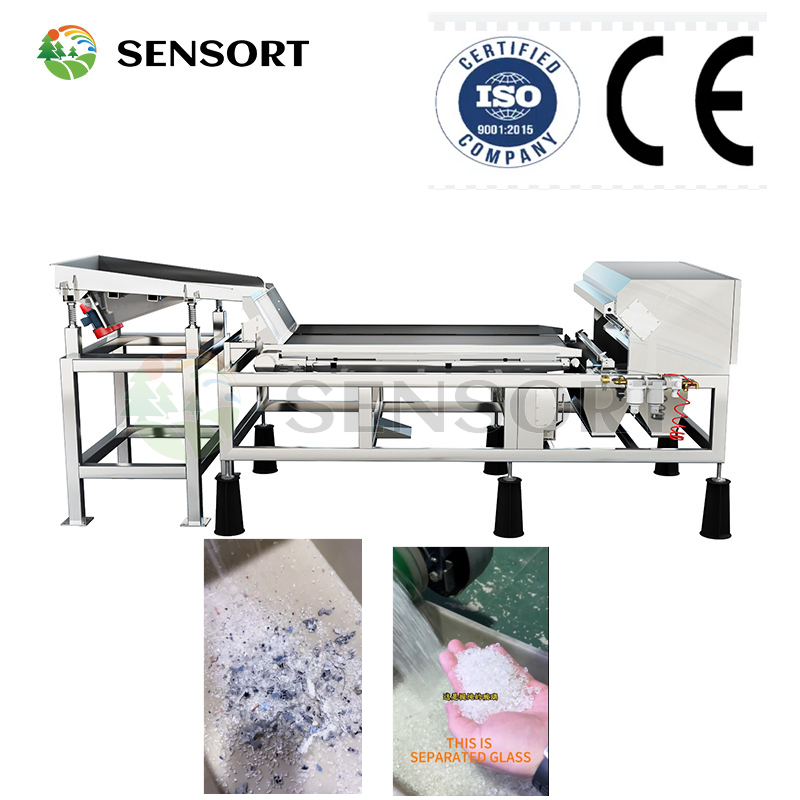

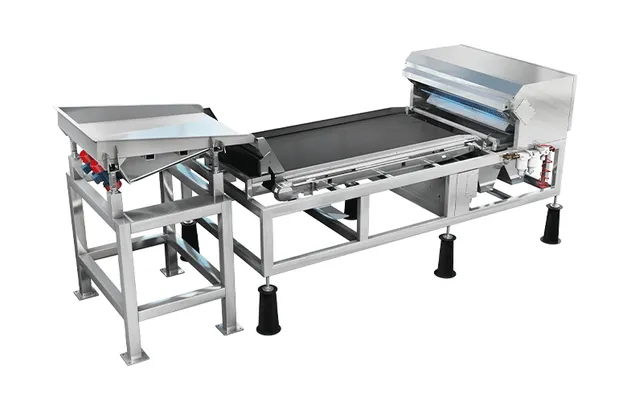

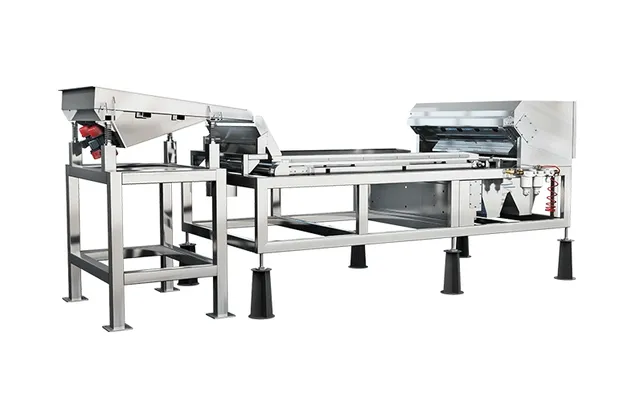

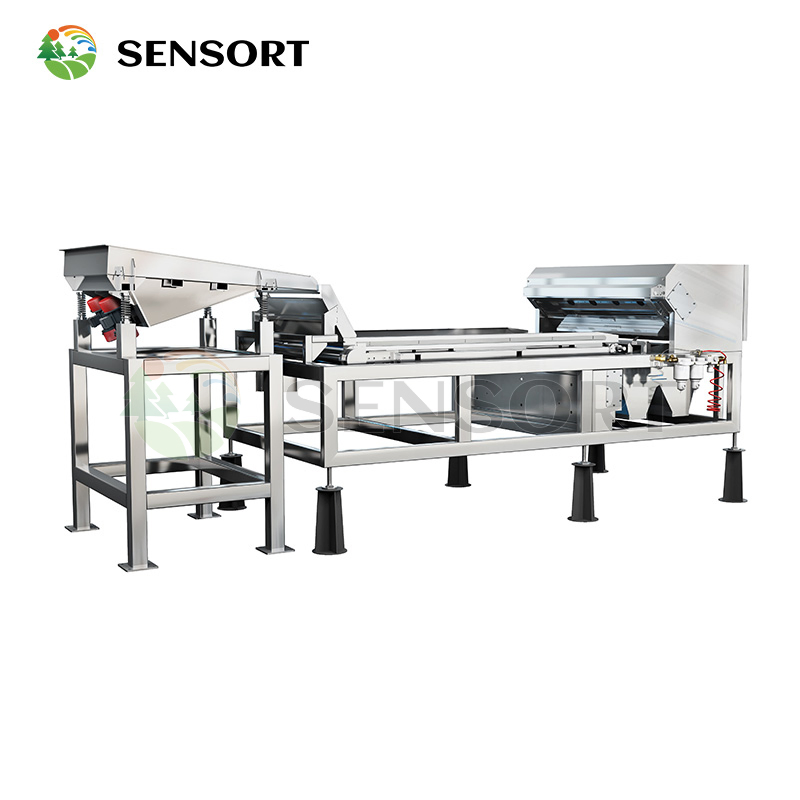

A belt-type color sorter is an advanced optical sorting machine used primarily in agricultural and industrial processing to detect and separate products based on color differences. Unlike vertical chute sorters, the belt-type uses a conveyor belt to transport materials, making it suitable for fragile, sticky, or irregularly shaped items.

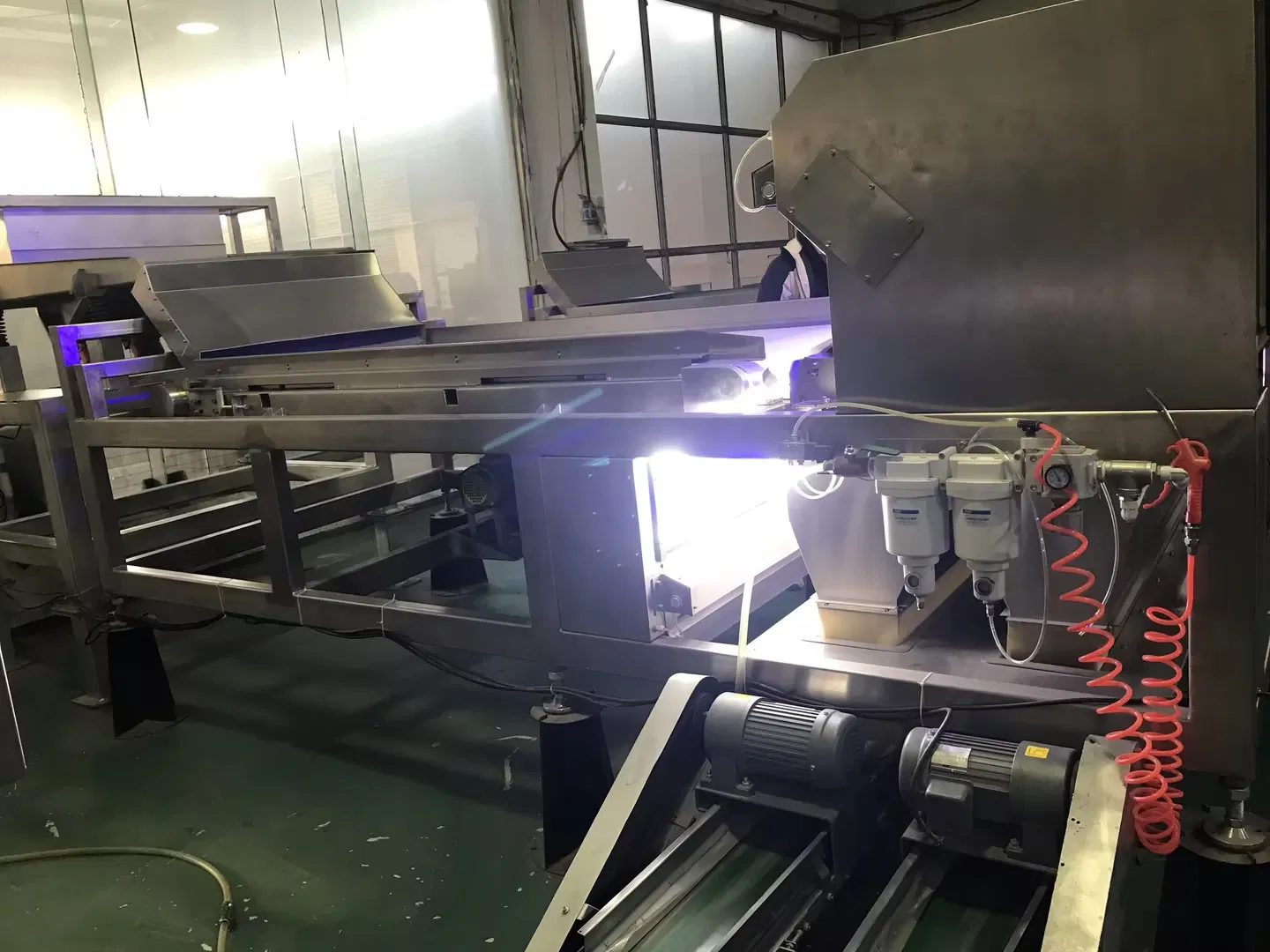

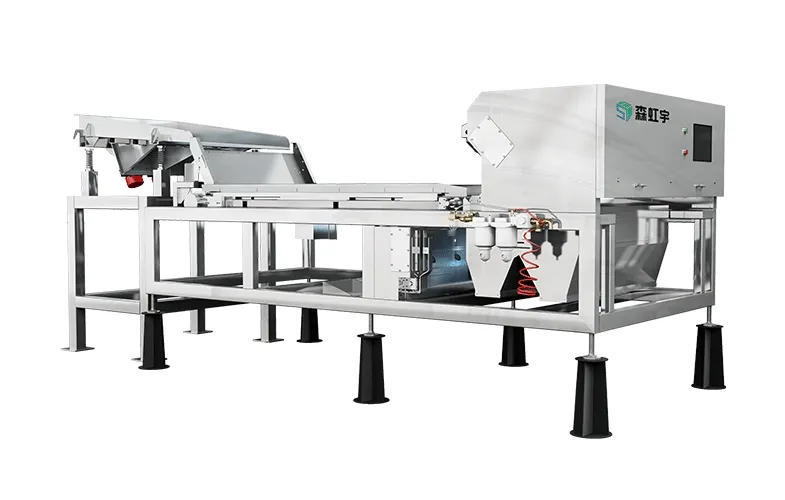

OPTICAL COLOR SORTING MACHINE

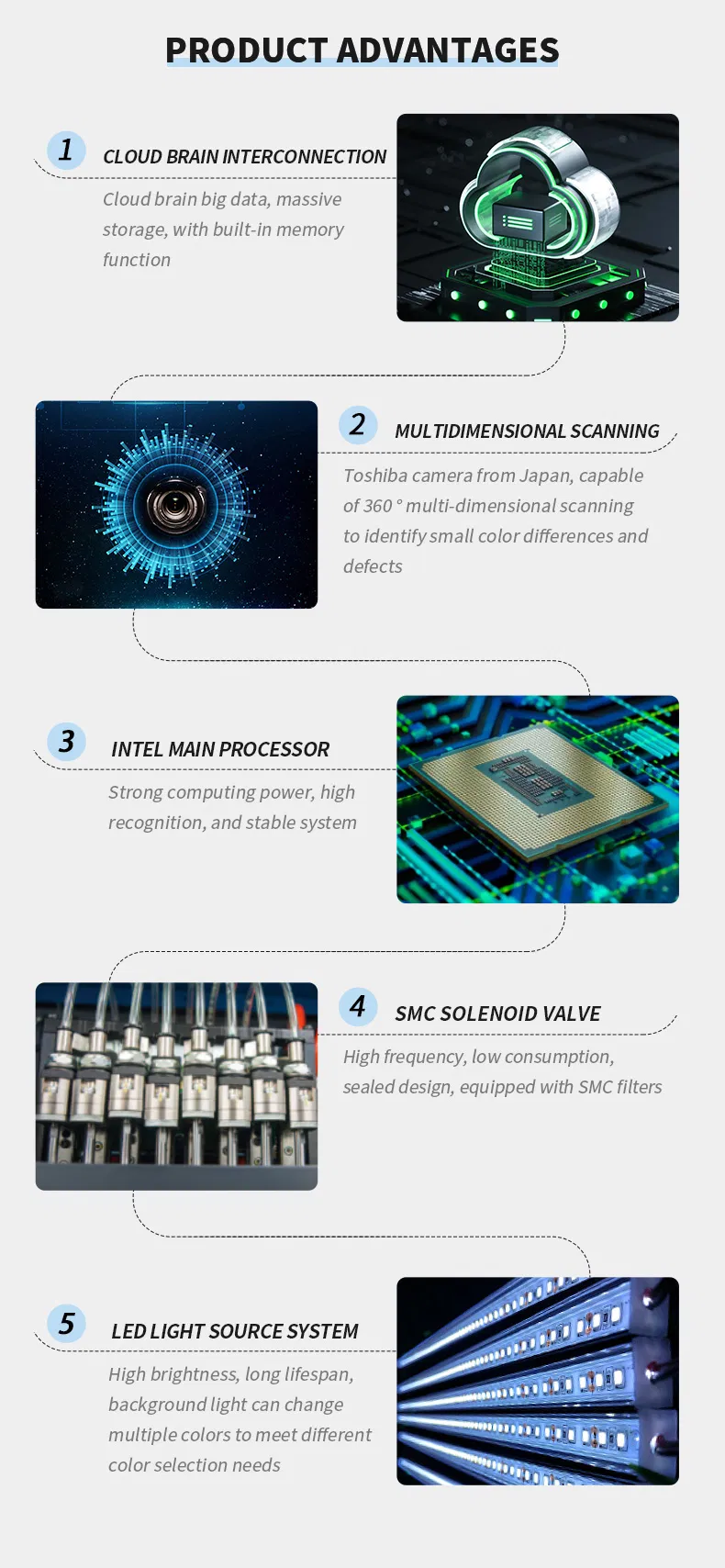

This belt type optical sorting machine uses photo-electric detection technology to separate and remove heterochromatic materials. It consists of a feeding system, optical detection system, signal processing, and execution system. It effectively enhances product value and promotes resource reuse.

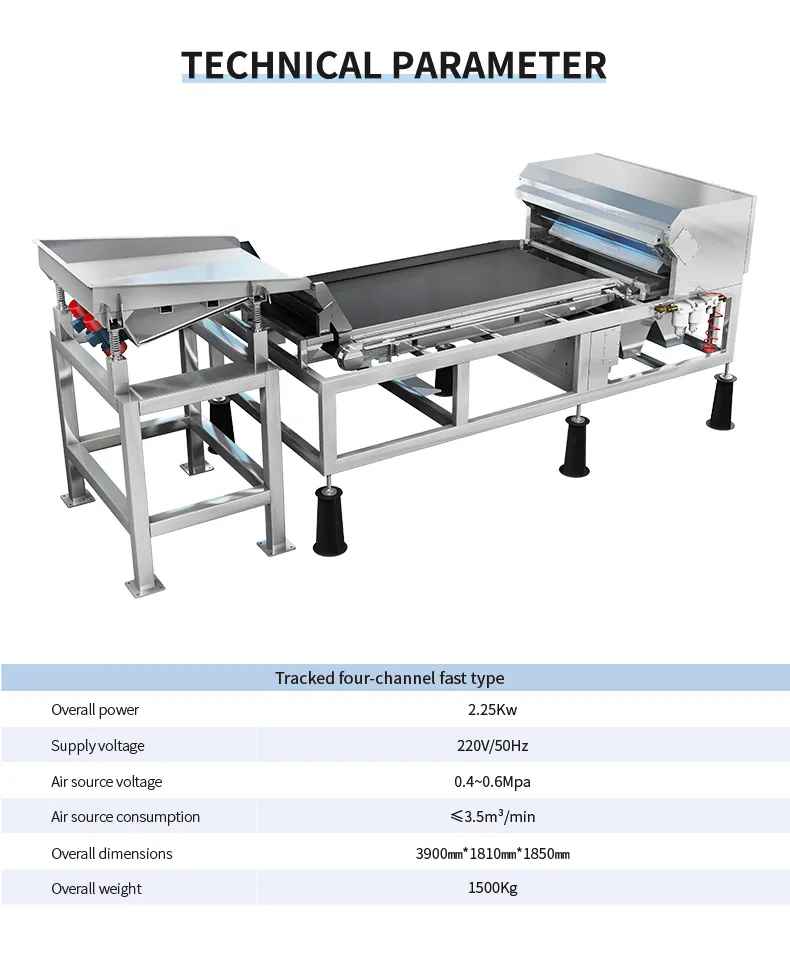

| Model | SHY-ZNGX300 | SHY-ZNGX600 | SHY-ZNGX1200 |
|---|---|---|---|
| Total Power | 1.1KW | 1.2KW | 2.25KW |
| Supply Voltage | 220V/380V 50/60HZ | 220V/380V 50/60HZ | 220V/380V 50/60HZ |
| Air Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Air Consumption | ≤1.2m³/min | ≤2.0m³/min | ≤3.5m³/min |
| Machine Size | 2660*910*1750MM | 2660*1210*1750MM | 3900*1810*1850MM |
| Weight | 500KG | 700KG | 1500KG |

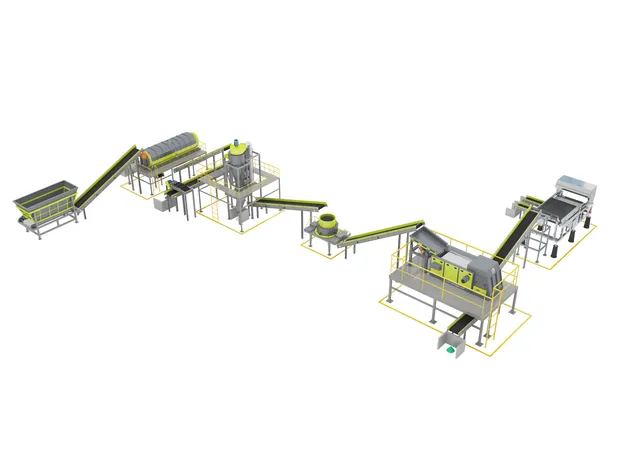

GLASS RECYCLING LINE
Includes trommel screens, air sorters, and color sorters to remove impurities and separate glass by color.

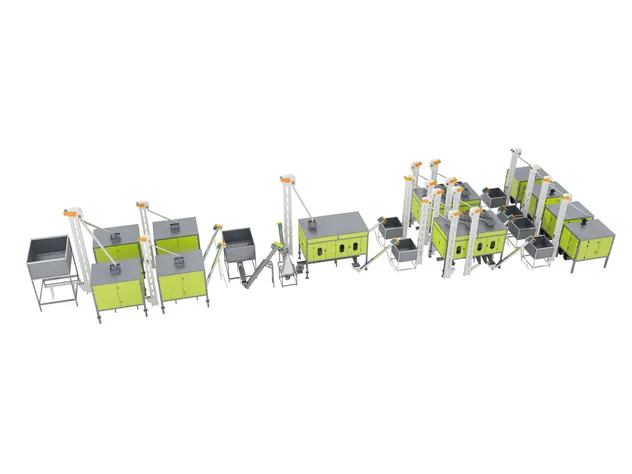

PLASTICS RECYCLING LINE
Includes silicone rubber sorters and electrostatic sorters to separate plastics by type.

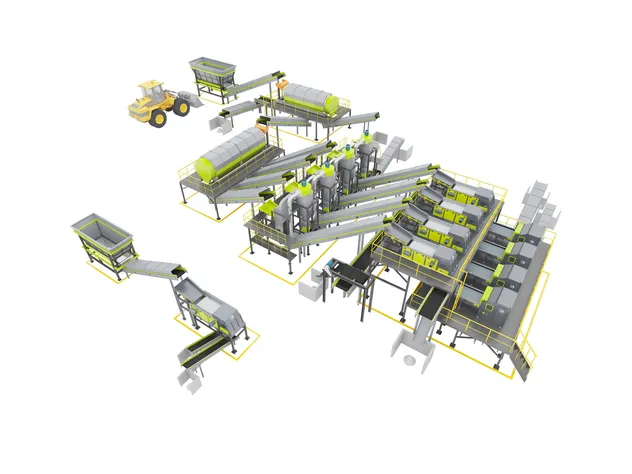

STEEL RECYCLING LINE
Efficiently separates non-ferrous metals, stainless steel, and wires from tailings.
After Sales Support:

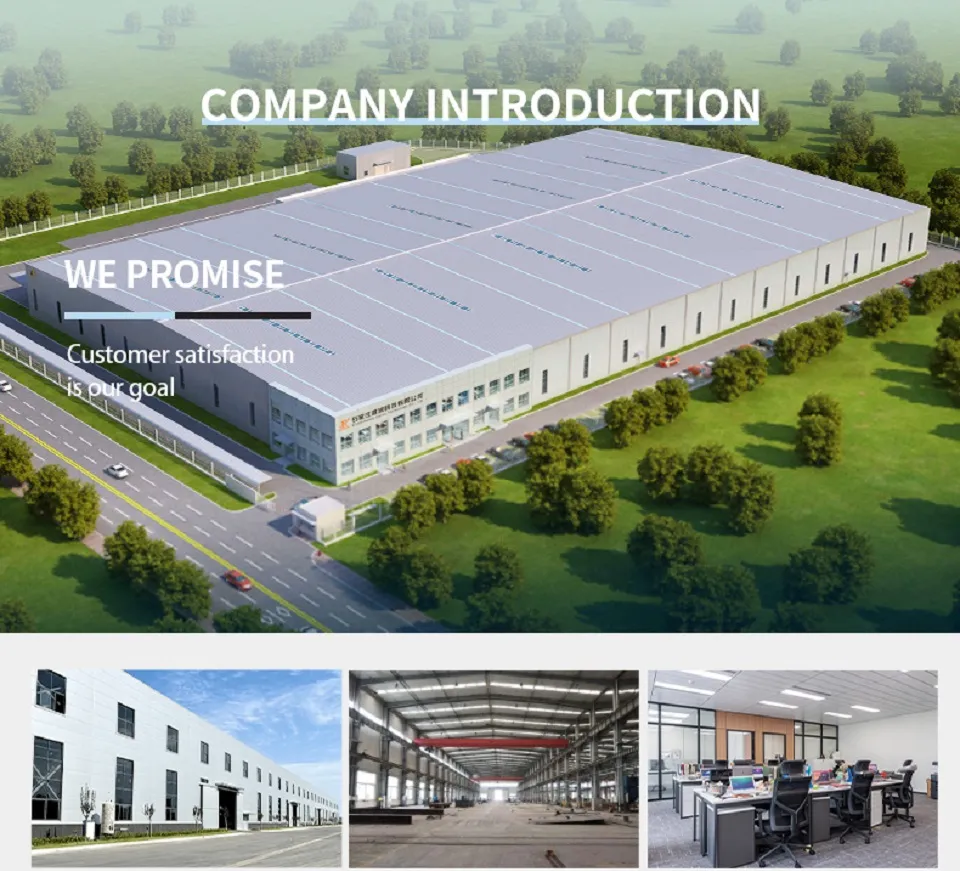

We are a comprehensive enterprise integrating R&D, manufacturing, sales, and installation. Our focus is on intelligent separation and resource recovery of solid waste. Our automated systems offer faster, more accurate separation and cleaner processing compared to traditional manual sorting, supporting a circular economy.
