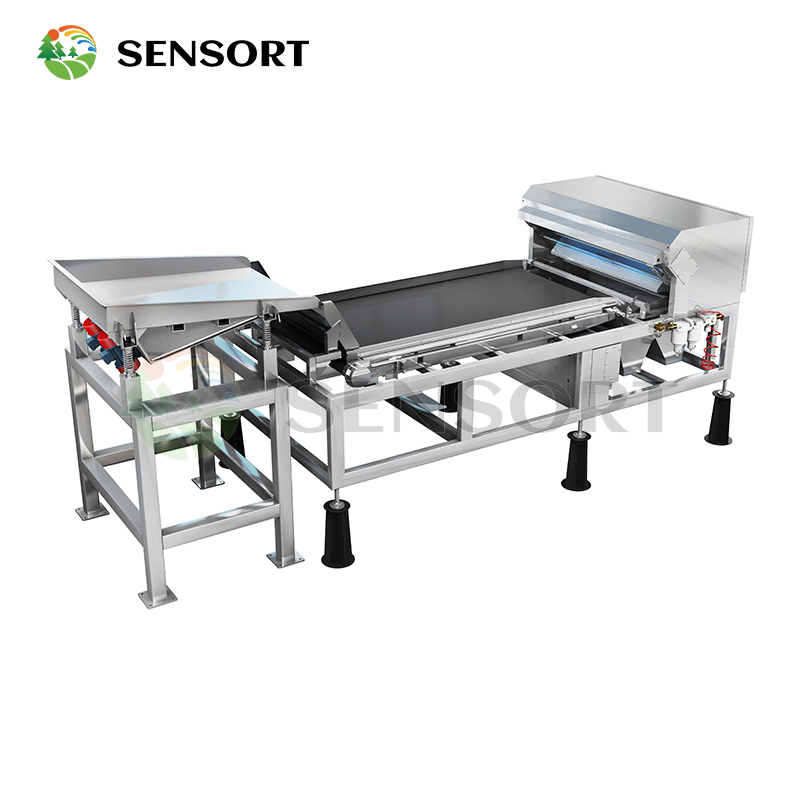

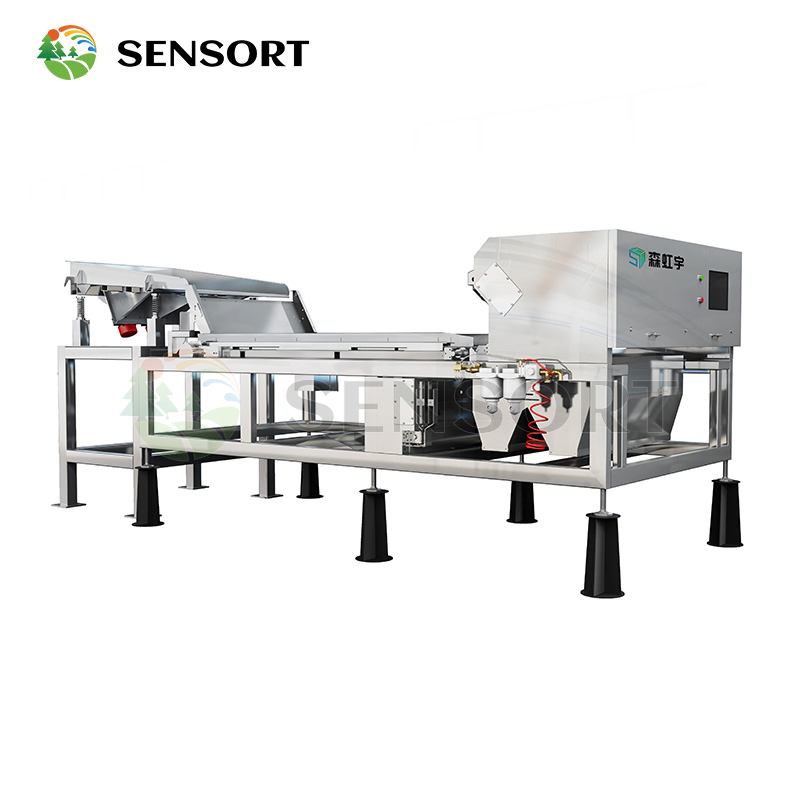

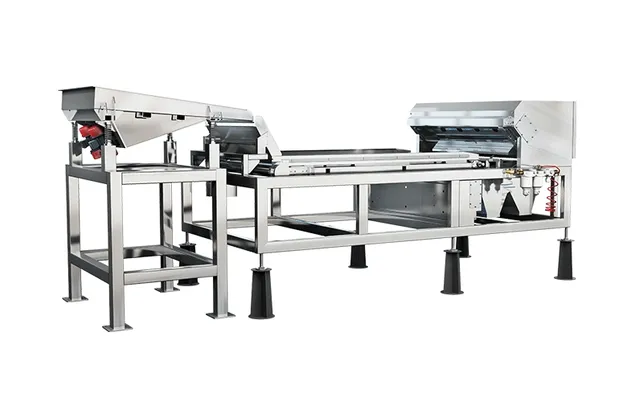

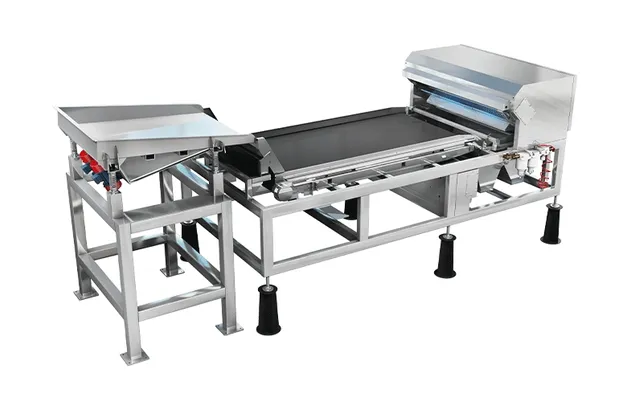

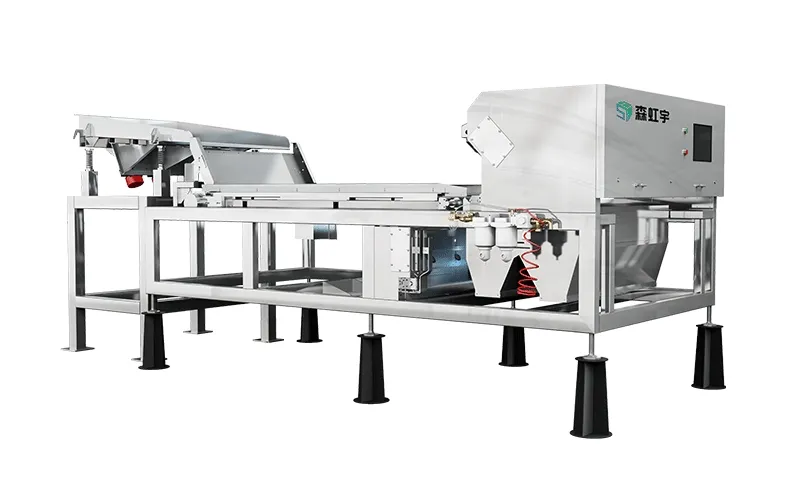

A belt-type color sorter is an advanced optical sorting machine used primarily in agricultural and industrial processing to detect and separate products based on color differences. Unlike vertical chute sorters, the belt-type uses a conveyor belt to transport materials, making it suitable for fragile, sticky, or irregularly shaped items.
The belt type optical sorting machine uses photoelectric detection technology to remove heterochromatic materials. It consists of a feeding system, optical detection system, signal processing, and separation execution system. This enhances product value and promotes resource reuse.
| Model | SHY-ZNGX300 | SHY-ZNGX600 | SHY-ZNGX1200 |
|---|---|---|---|
| TOTAL POWER | 1.1KW | 1.2KW | 2.25KW |
| SUPPLY VOLTAGE | 220V/380V 50/60HZ | 220V/380V 50/60HZ | 220V/380V 50/60HZ |
| AIR PRESSURE | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| AIR CONSUMPTION | ≤1.2m³/min | ≤2.0m³/min | ≤3.5m³/min |
| MACHINE SIZE | 2660*910*1750MM | 2660*1210*1750MM | 3900*1810*1850MM |
| WEIGHT | 500KG | 700KG | 1500KG |

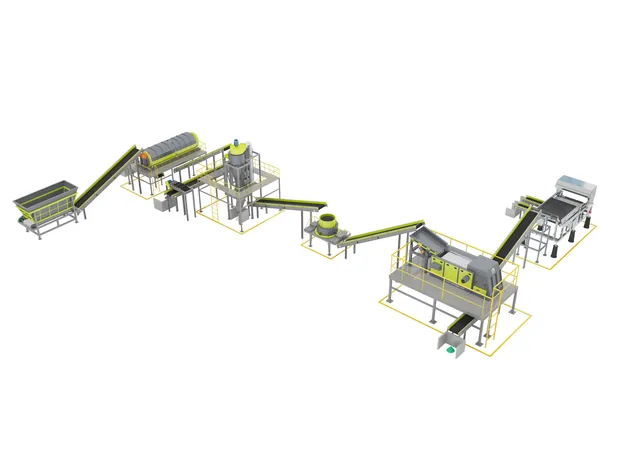

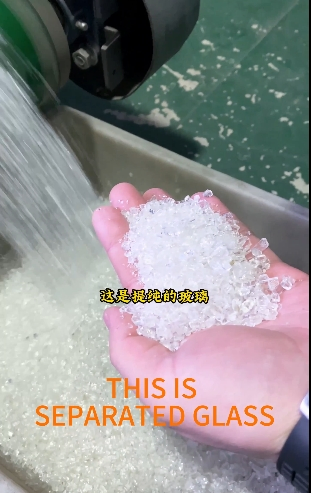

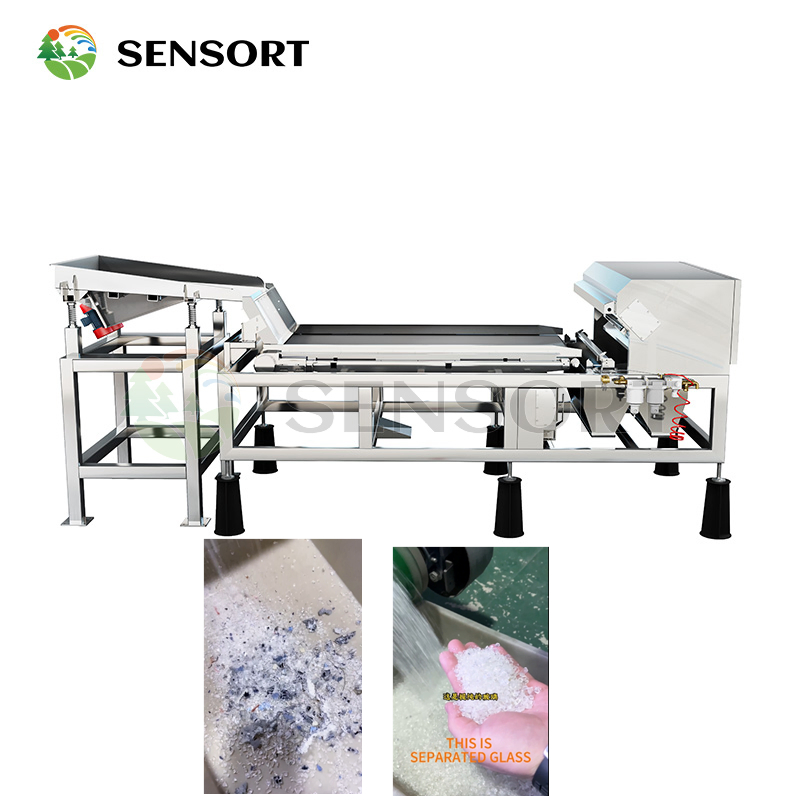

Removes impurities and separates glass by colors efficiently.

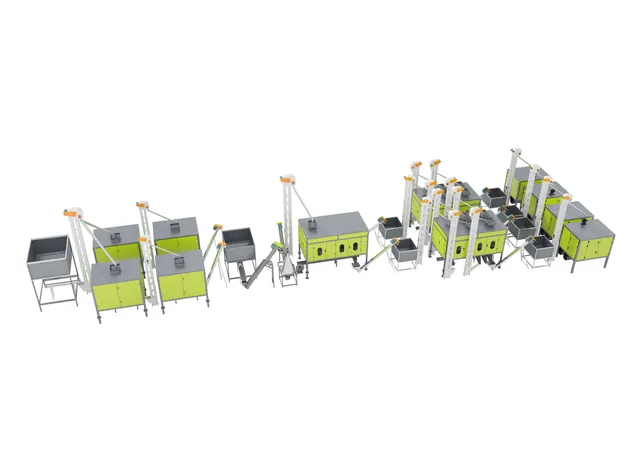

Removes rubber and separates plastics by type/color.
Separates non-ferrous metals, stainless steel, and wires.

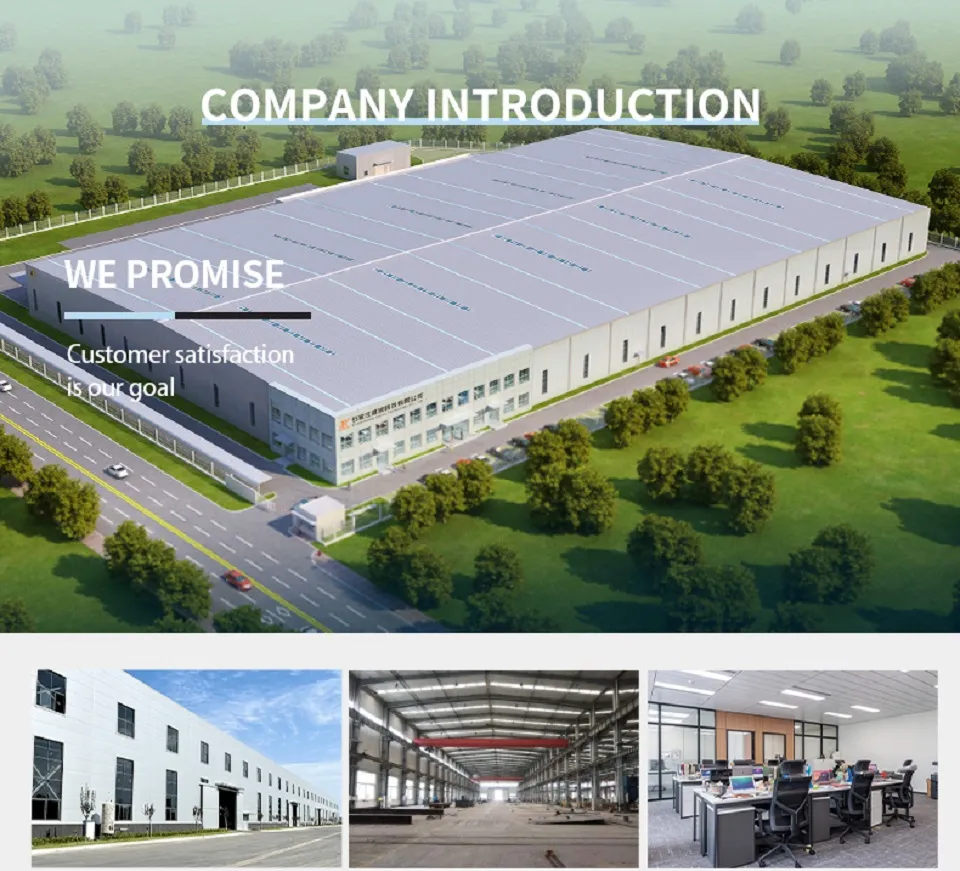

We focus on intelligent separation and resource recovery of solid waste. Our systems integrate R&D, manufacturing, and installation to provide automated solutions for global clients.

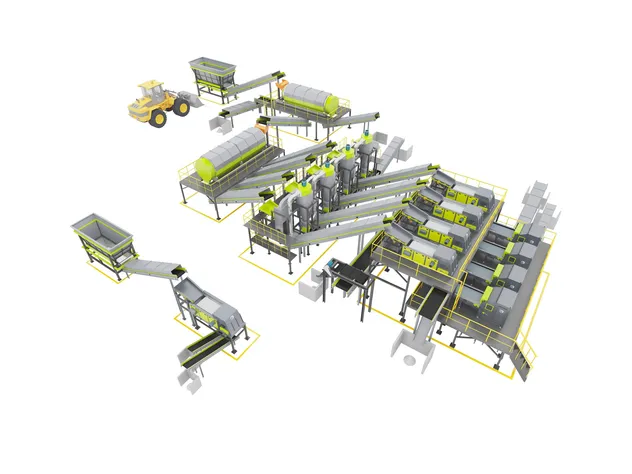

Our self-developed sorting lines are designed for efficiency, environmental friendliness, and high resource recovery rates, replacing traditional manual sorting with advanced AI technology.
