10, 000m³/Day Seawater Electrolysis System Application for Cooling Water
10, 000m³/Day Seawater Electrolysis System Application for Cooling Water
10, 000m³/Day Seawater Electrolysis System Application for Cooling Water
1 / 3
10, 000m³/Day Seawater Electrolysis System Application for Cooling Water
10, 000m³/Day Seawater Electrolysis System Application for Cooling Water
10, 000m³/Day Seawater Electrolysis System Application for Cooling Water

10, 000m³/Day Seawater Electrolysis System Application for Cooling Water

After-sales Service: Remote Guide by Video/Calling Communication
Warranty: 2 Years
Certification: ISO9001, CE
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
BSE
Application
Industry
Voltage
380V
Disinfection Method
Chlorination
Specification
5500mm × 2000mm × 2200mm
Origin
China
✓

Product Overview

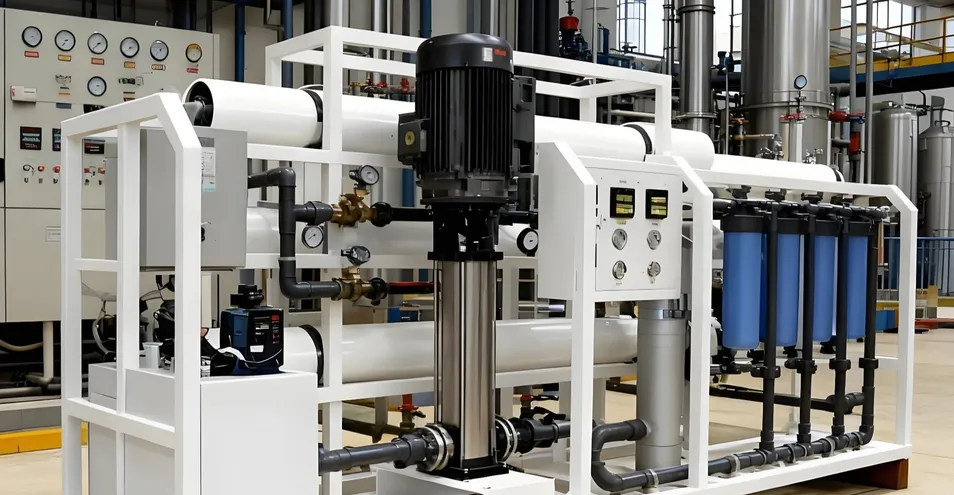

Seawater Electrolysis System

The BSE-200 Seawater Electrolysis Chlorination System is a high-performance and reliable disinfection solution engineered for industrial water treatment. With ISO9001 and CE certifications, this system adopts advanced seawater electrolysis technology to produce available chlorine on-site, eliminating the need for chlorine transportation and storage. It features a robust structure, efficient operation, and flexible customization capabilities to meet the specific requirements of different industrial scenarios.

★

Main Features

Comprehensive Configuration Equipped with seawater booster pump, electrolyzer assembly, and acid washing package, ensuring a complete and seamless operation.

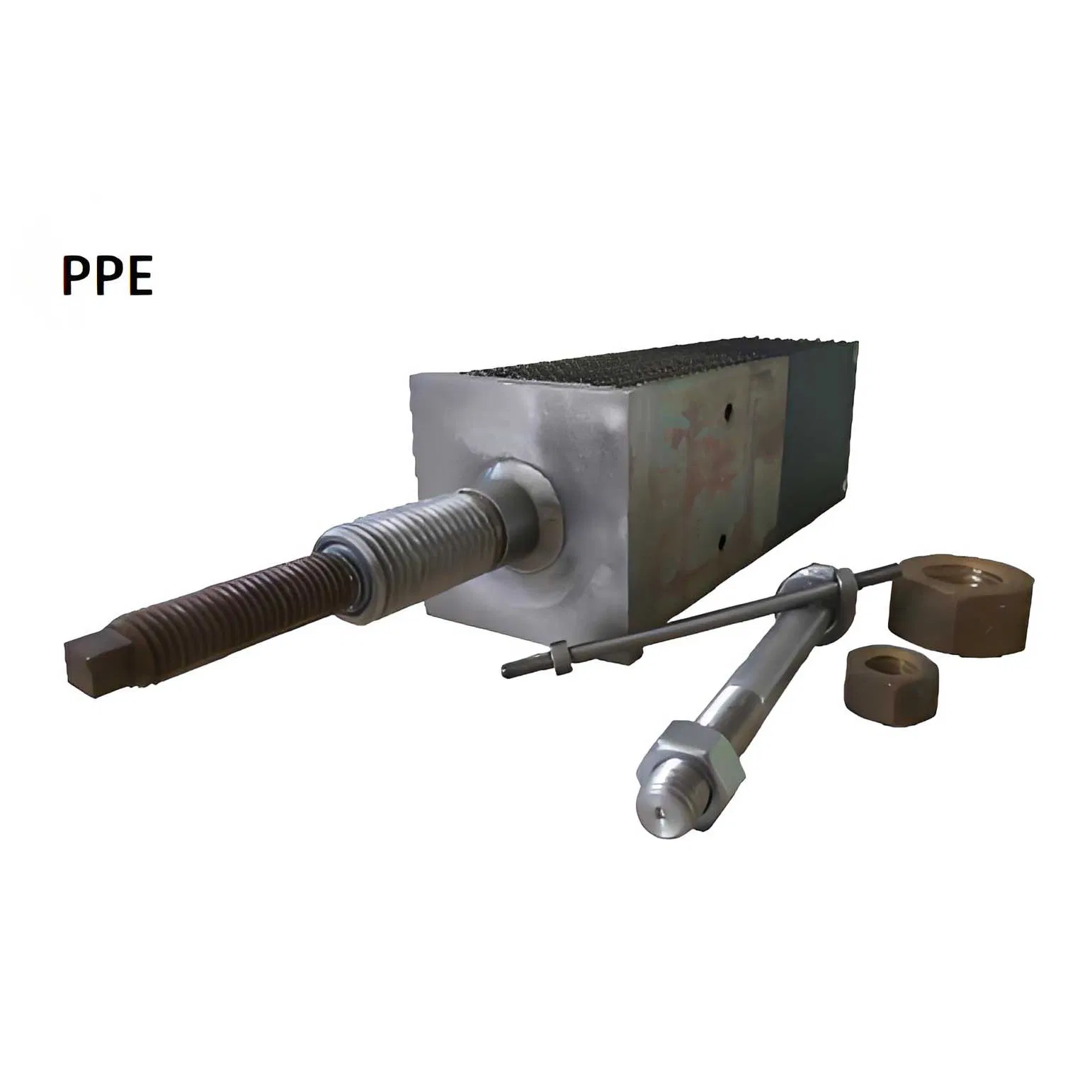

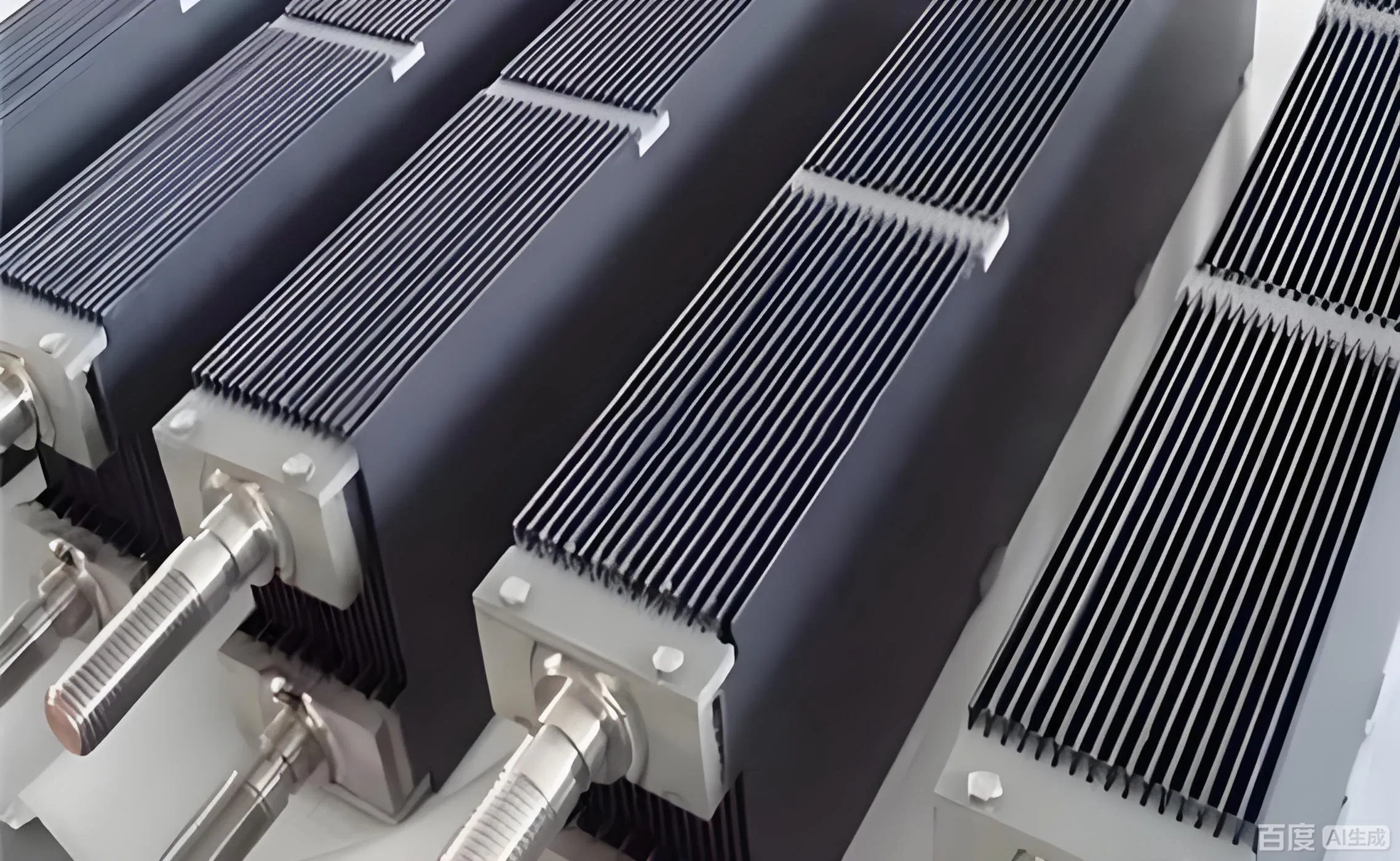

Durable Electrodes Utilizes high-quality titanium electrodes coated with Ru/Ir/Pt. Cathode lifetime exceeds 5 years due to advanced acid washing technology.
Energy-Saving Boasts a current efficiency of over 80% and low DC power consumption of less than 4kwh/kg.Cl2.
Safety & Customization On-site production eliminates transport risks. Full customization is available to adapt to diverse industrial needs and engineering solutions.
⚙

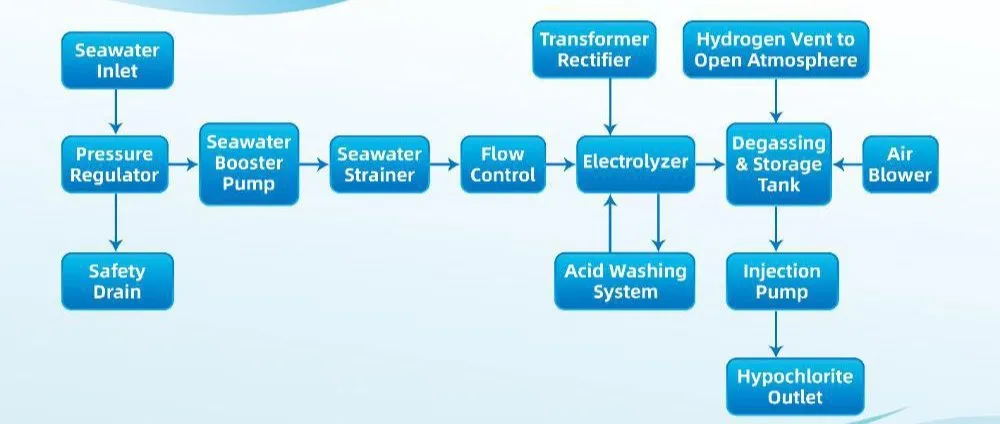

Core Process Flow

Core Process Flow
Seawater Inlet & Management: Raw seawater enters via inlet, stabilized by a pressure regulator.
Pretreatment: Flow is enhanced by a booster pump and filtered by a strainer to remove impurities.
Electrolysis: DC power from a transformer rectifier converts seawater chloride ions into hypochlorite.
Gas Separation: The mixture flows to a degassing tank where hydrogen is safely vented via air blowers.
Final Output: Purified hypochlorite solution is delivered via injection pump for disinfection.
📋

Technical Parameters

Parameter Specification
Model NumberBSE-200
Voltage380V
Available Chlorine Production20KG/H
Available Chlorine Concentration1-1.5G/L
Current Efficiency> 80%
DC Power Consumption< 4kwh.kg.Cl2
Cathode Lifetime≥ 5 years
External Dimensions3800×950×1730mm
CertificationsISO9001, CE
📍

Application Scenarios

This system is specifically designed for anti-fouling treatment of circulating water in small and medium-sized power plants and coastal petrochemical water intake structures.

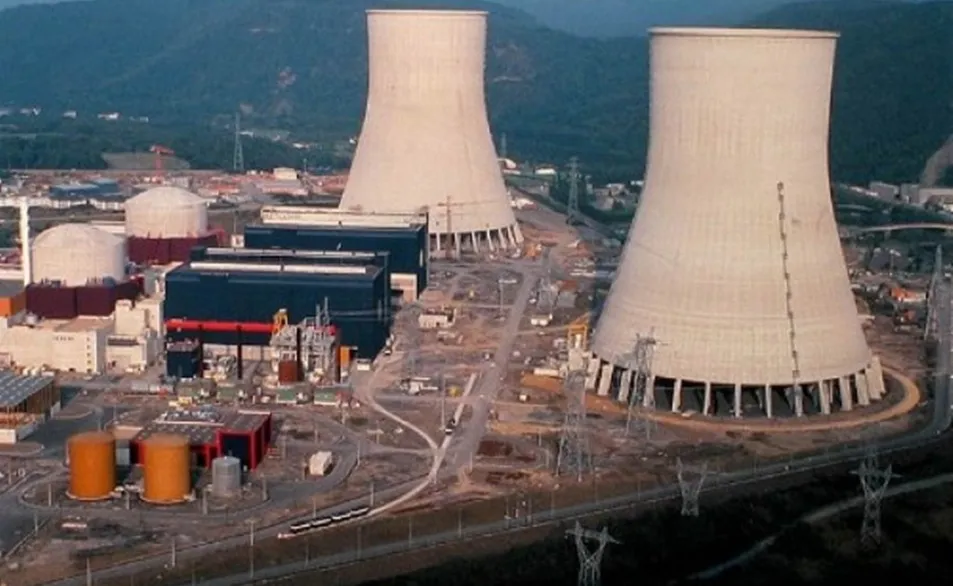

Application 1
Application 2
🏢

Service Capabilities

With 20+ years of experience in chlorination system manufacturing, we specialize in water treatment solutions providing:

  • Customized package design (AutoCAD, SolidWorks-supported engineering).
  • Comprehensive after-sales services: On-site inspection, electrolyzer refurbishment, and capacity upgrades.
  • Compliance with global industry standards and ISO certifications (9001, 14001, 18001).
?

Frequently Asked Questions

What is the service life of the electrodes in this system?
The system utilizes high-quality titanium electrodes with a specialized coating, ensuring a cathode lifetime of at least 5 years.
Does the system require special storage for chlorine?
No, the system produces chlorine on-site from seawater, eliminating the safety risks and costs associated with chlorine transportation and storage.
How energy-efficient is the electrolysis process?
The system is highly efficient, with a current efficiency exceeding 80% and a low DC power consumption of less than 4kwh per kg of Cl2.
Can the system be customized for specific project requirements?
Yes, we offer full and flexible customization options, including engineering design and package configurations, to meet diverse industrial needs.
What certifications does the seawater electrolysis system hold?
The system is fully certified under ISO9001 and CE standards, ensuring international quality and safety compliance.
What are the primary applications for this chlorination system?
It is ideal for anti-fouling treatment in circulating water systems for power plants and water intake structures of coastal petrochemical facilities.
