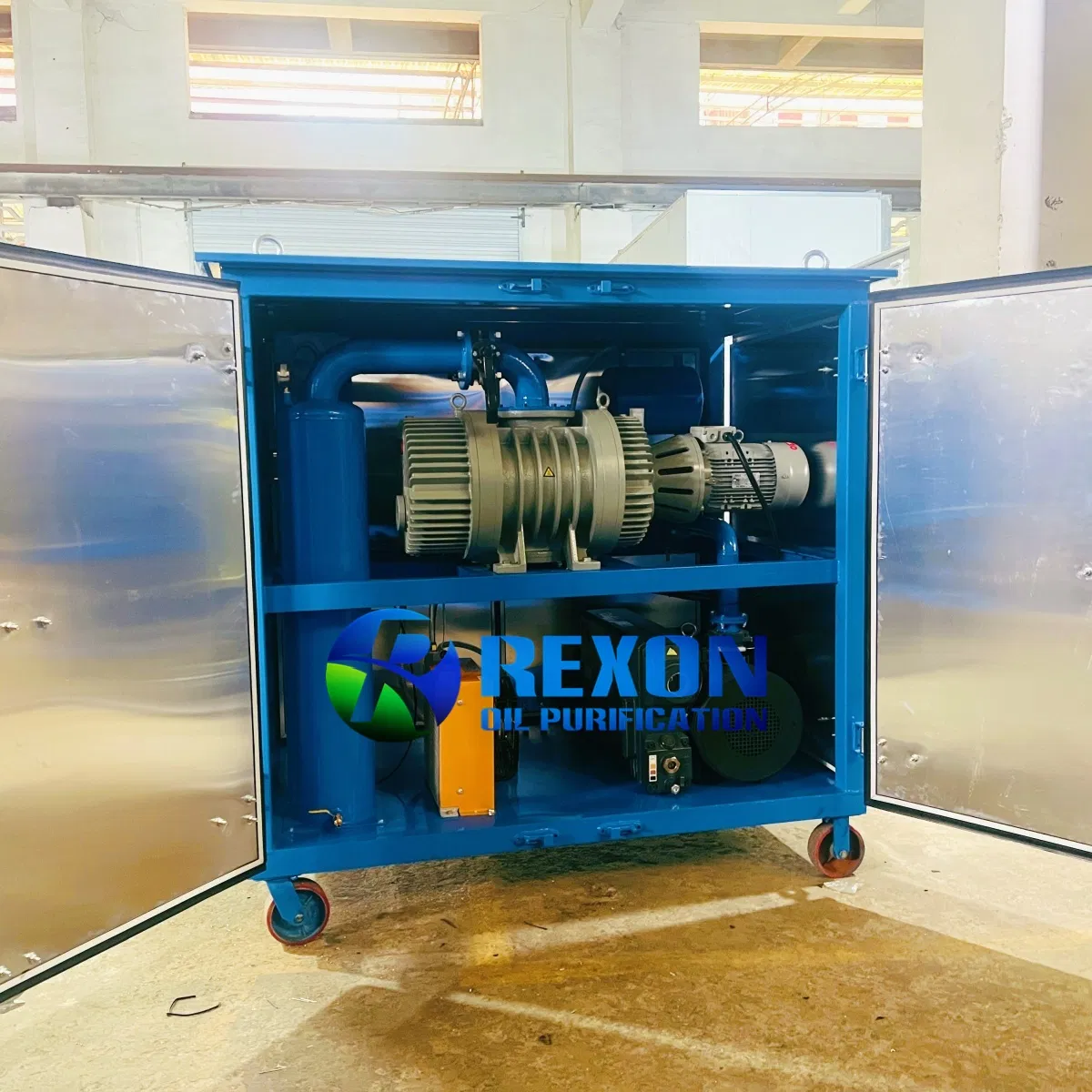

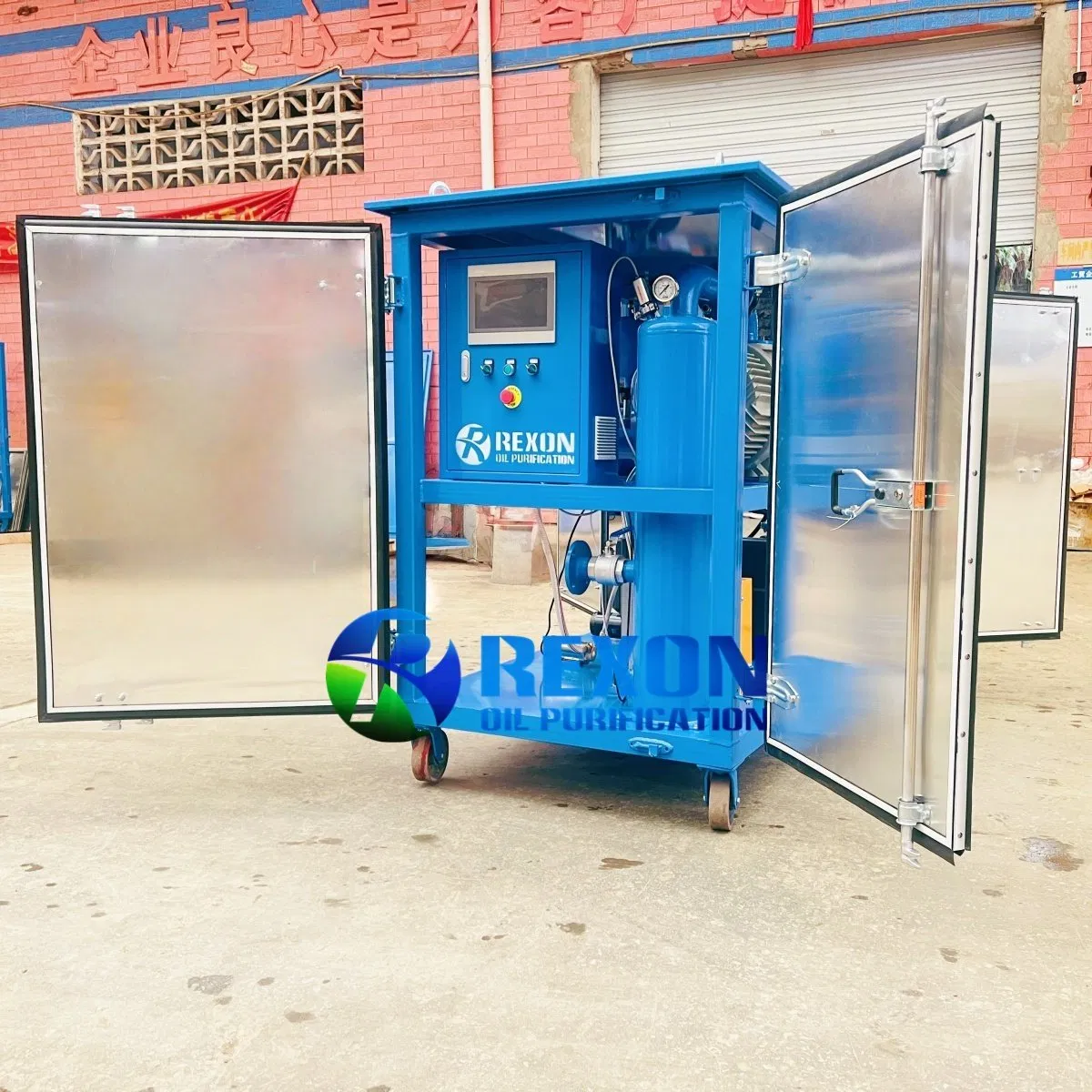

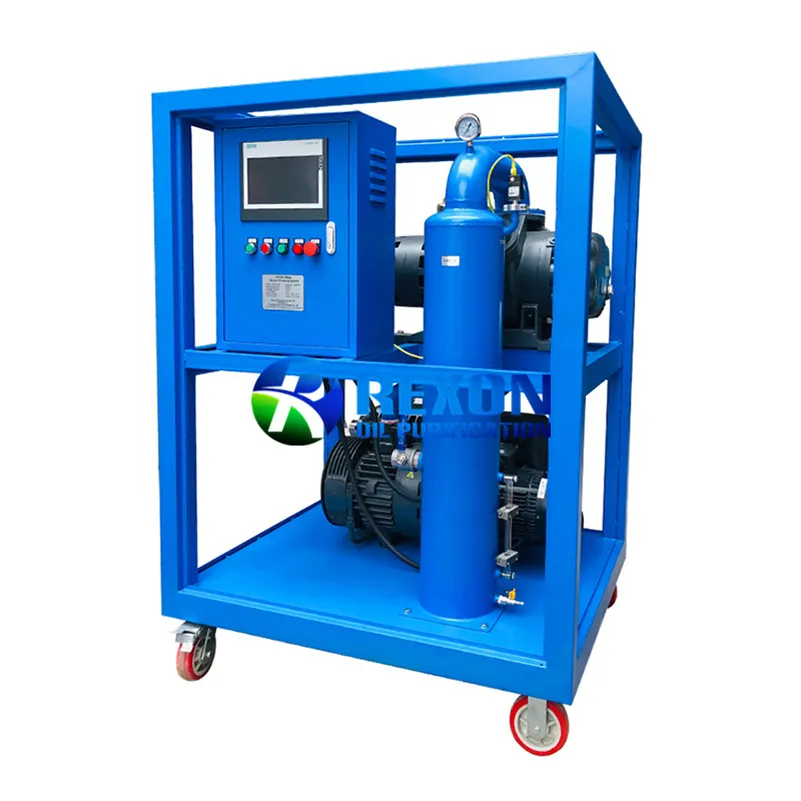

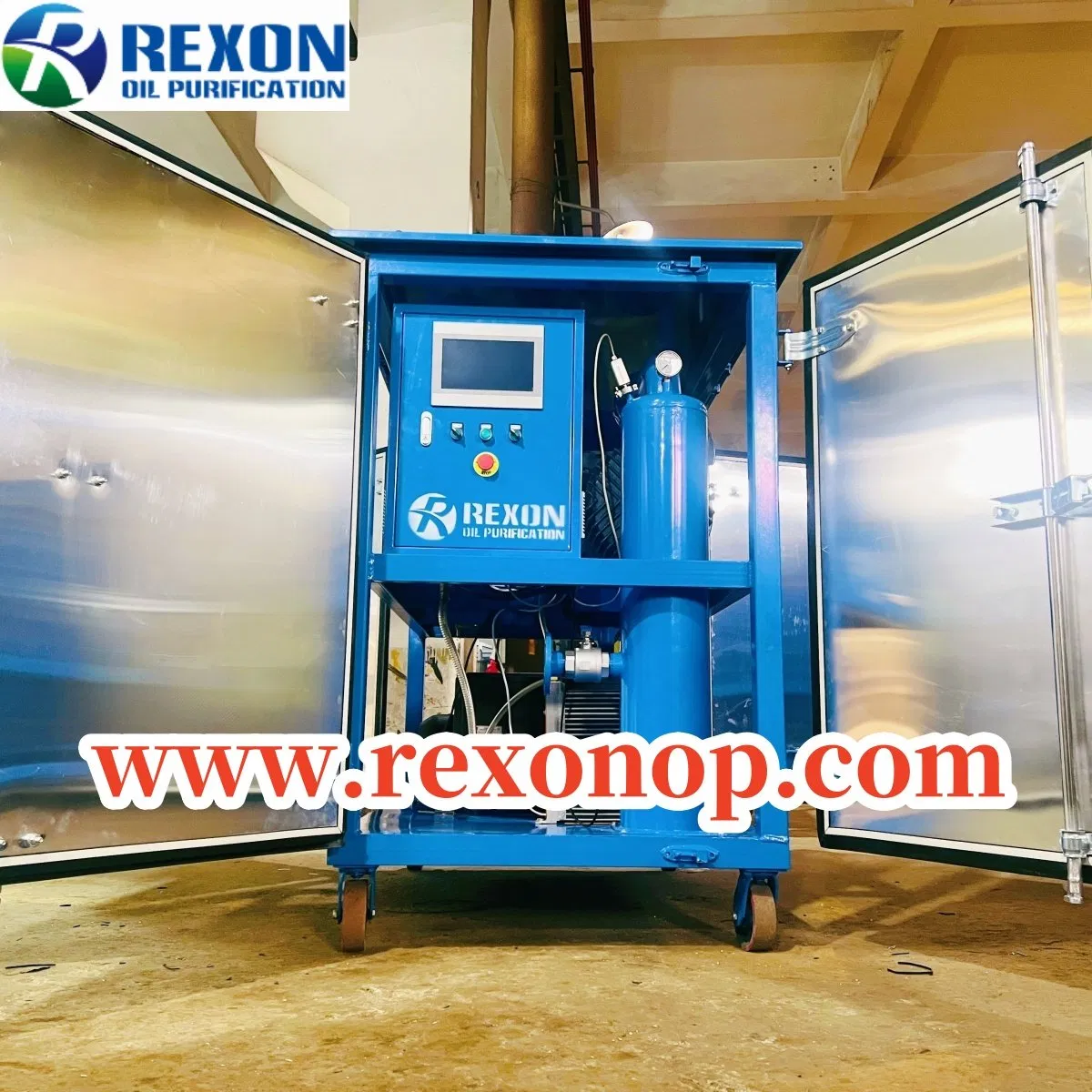

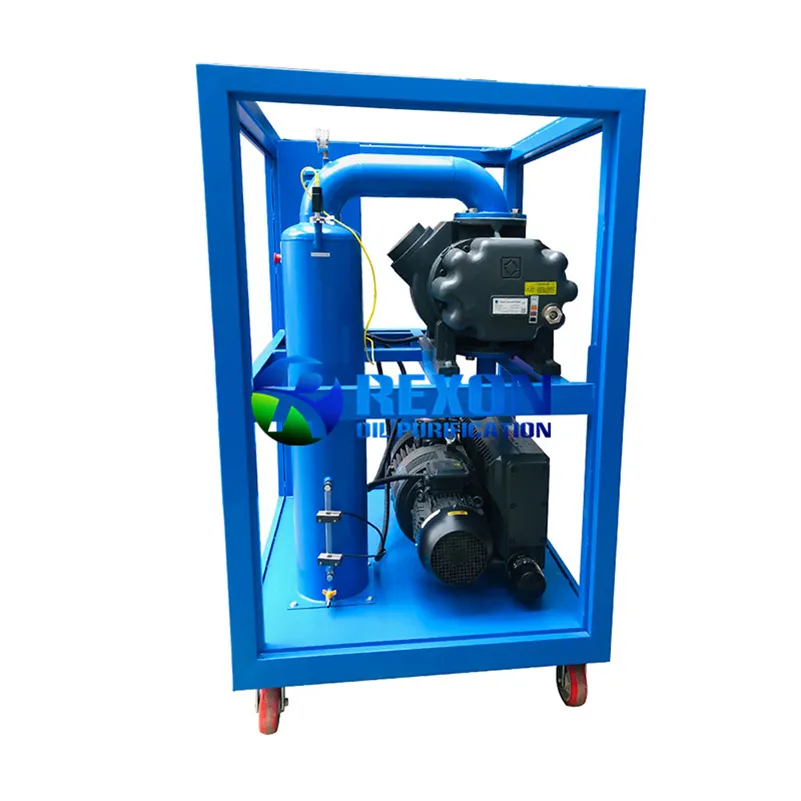

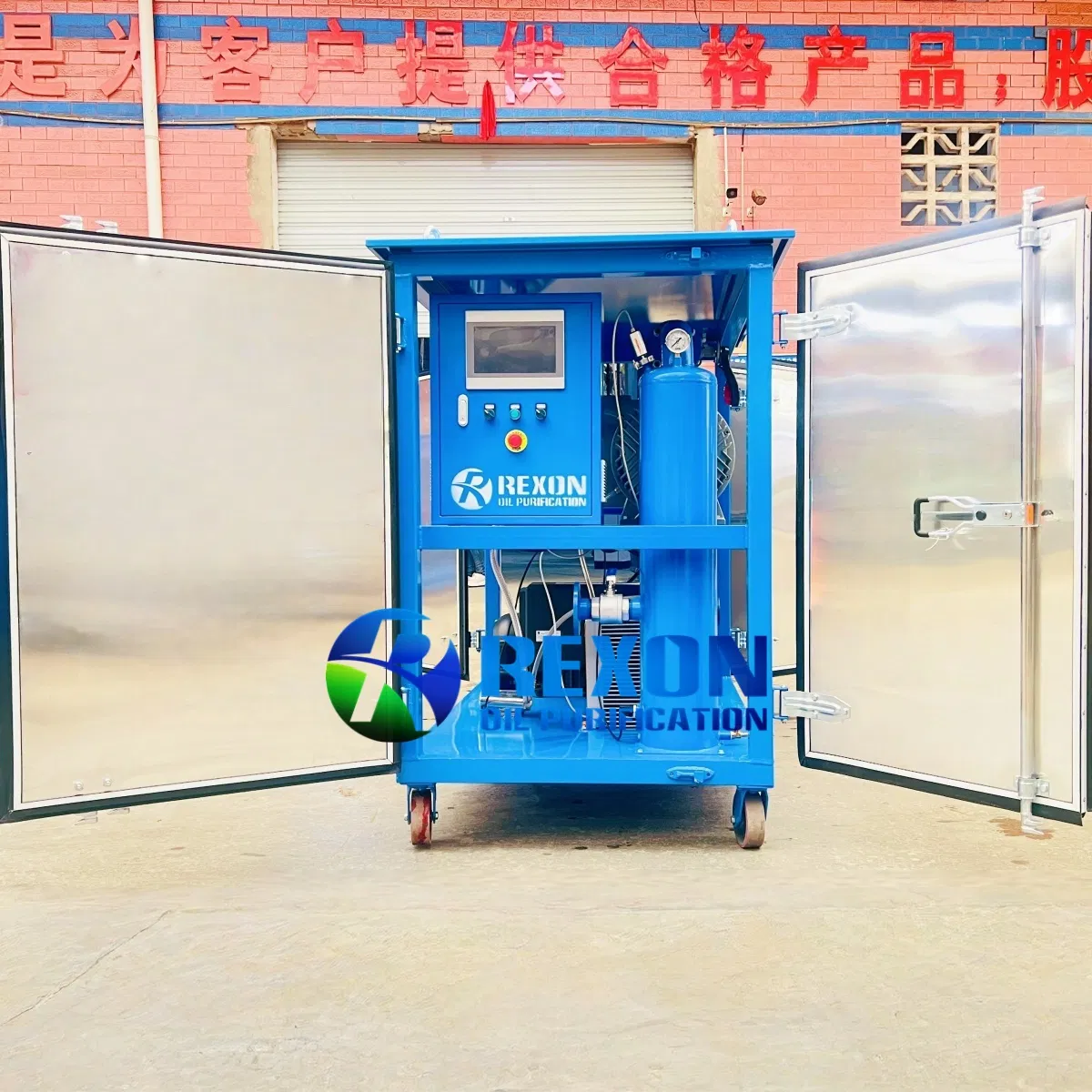

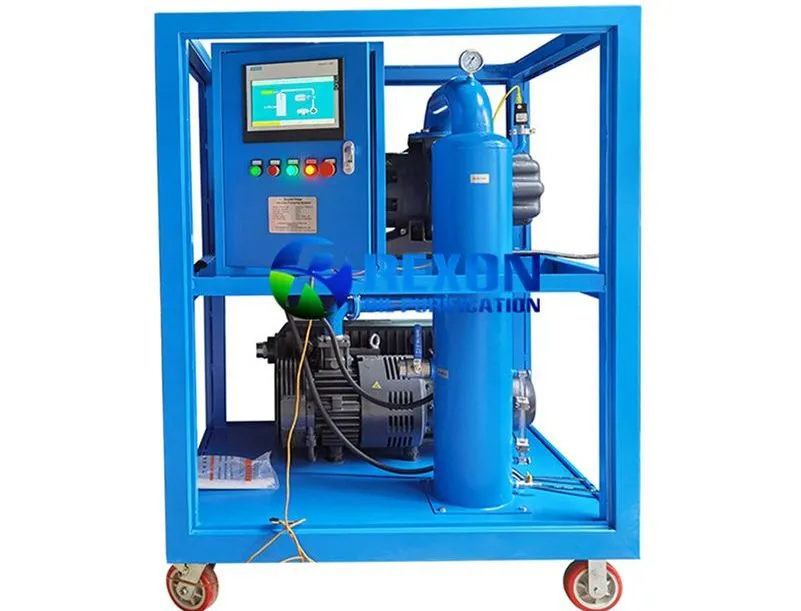

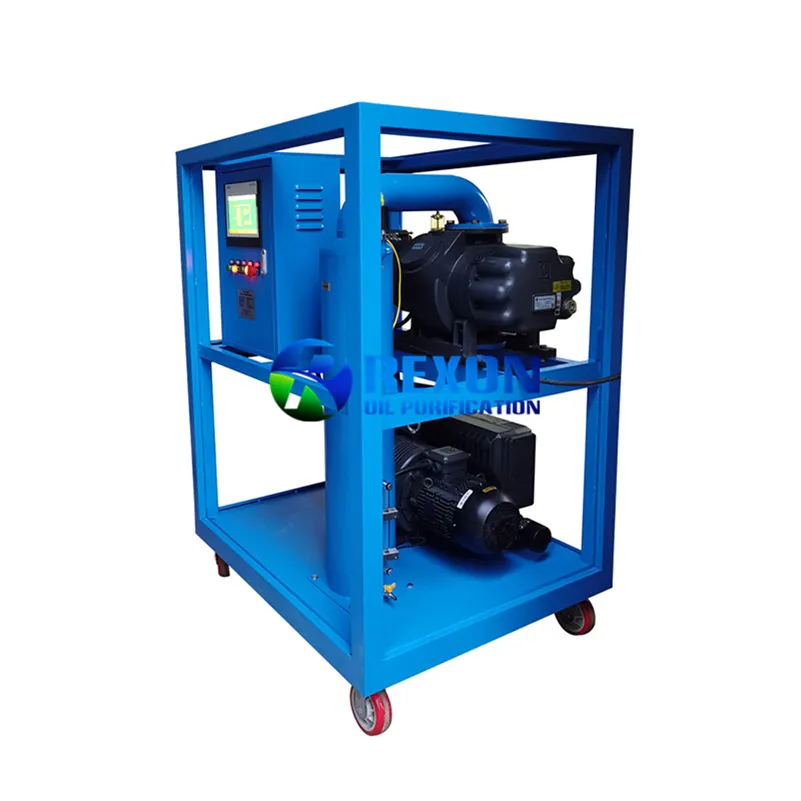

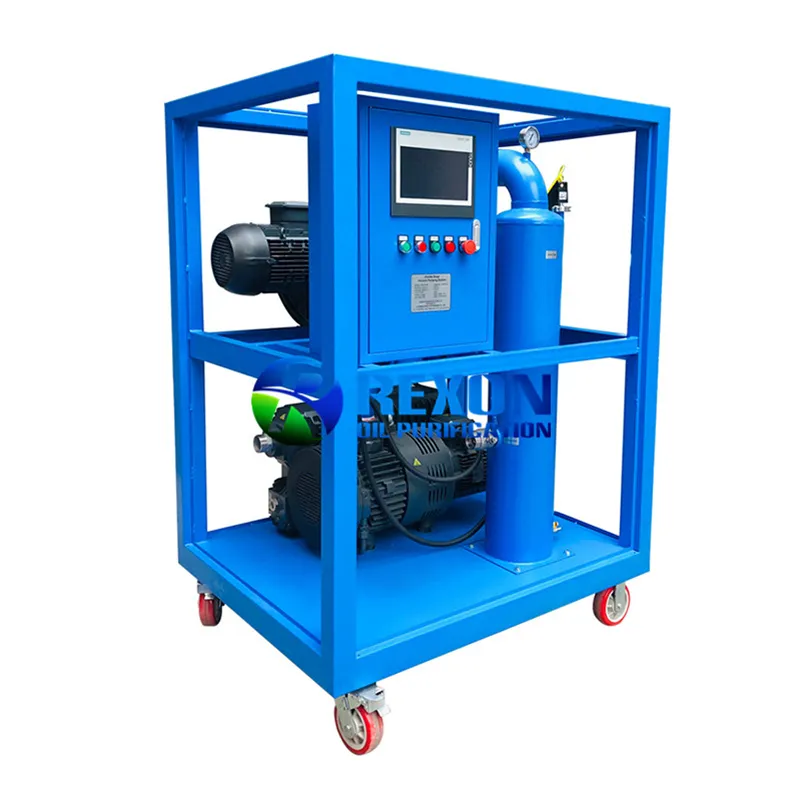

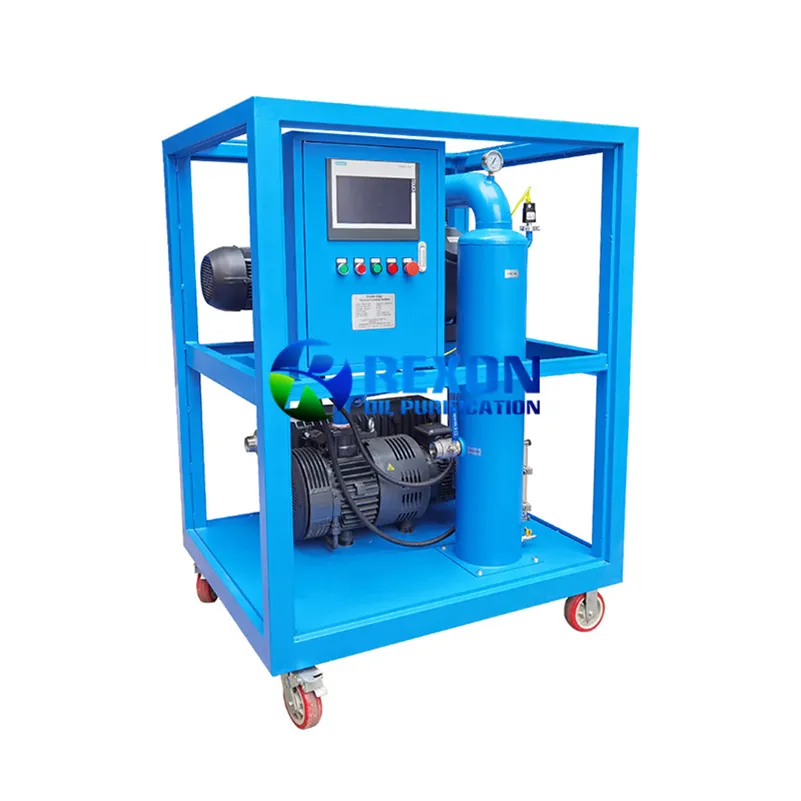

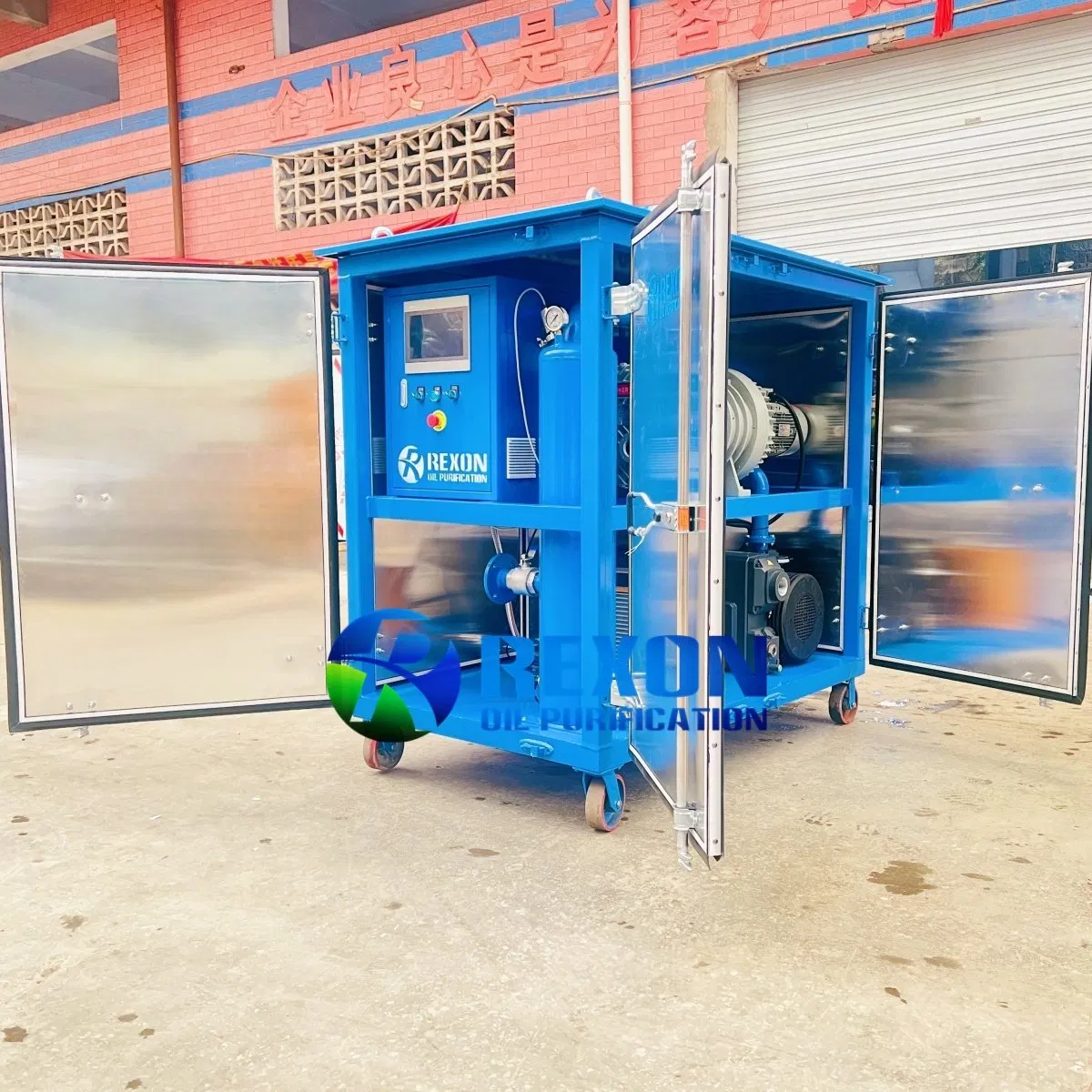

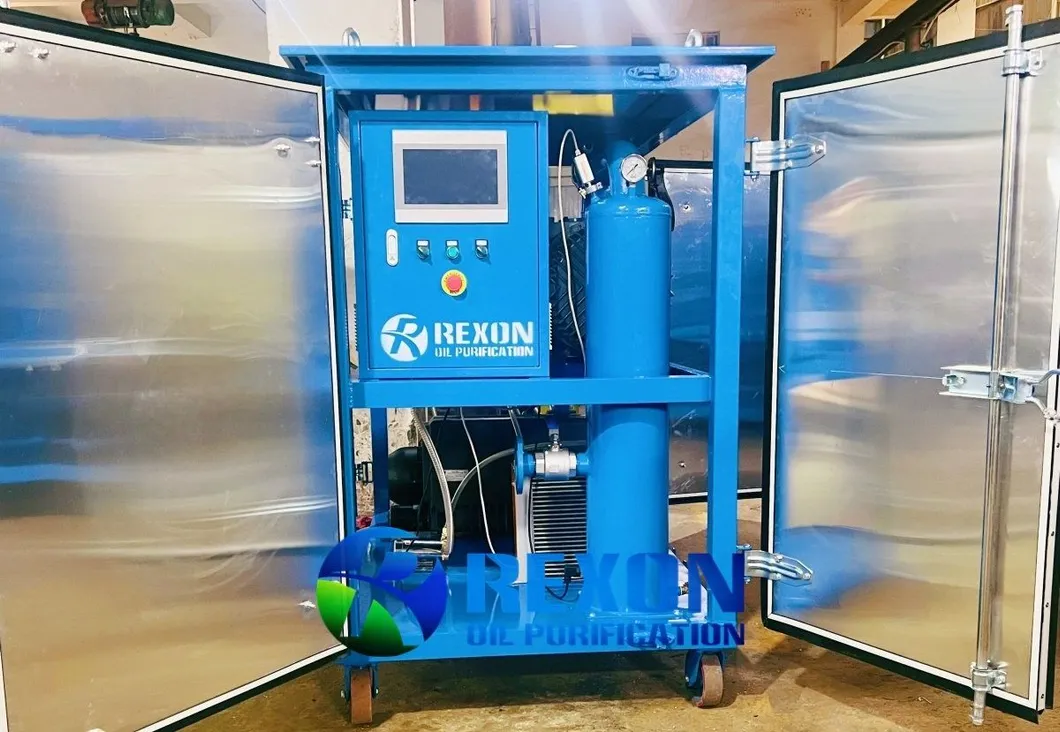

RNVS series vacuum pumping equipment is used to evacuate the gas in the transformer, so that the iron core, coil and insulating material in the transformer are completely exposed to the high vacuum environment. In a high vacuum environment, the moisture absorbed by the iron core, coil and insulation material evaporates into the air and is discharged by the vacuum pump, thereby achieving the role of drying the transformer.

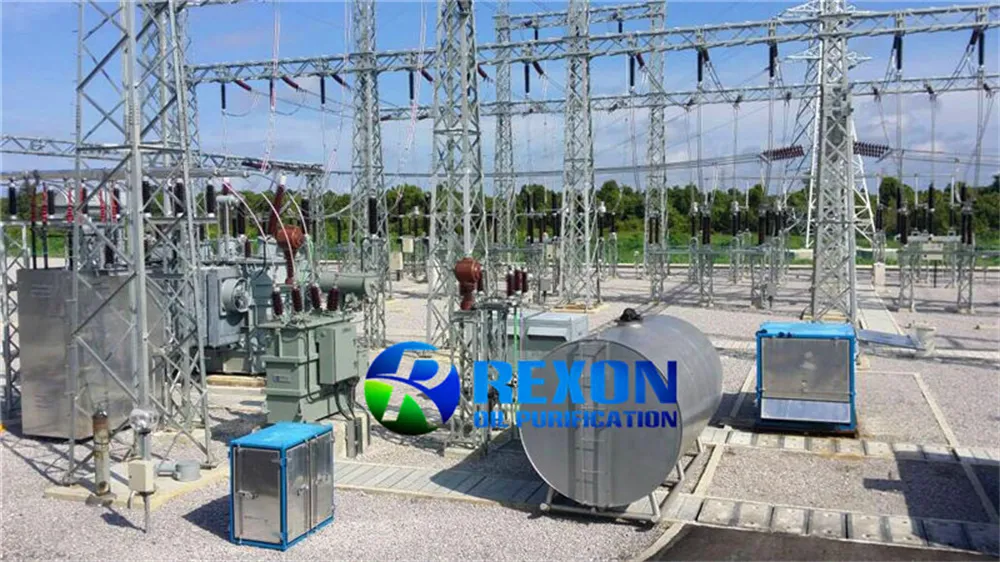

It is widely used in the vacuuming process in the production, installation and maintenance of many electric power equipment, like electric power transformer, capacitor etc. It can offer high efficiency vacuum evacuating, vacuum injection and vacuum oiling for transformers, and is also used in industrial processes such as vacuum drying, distillation, and coating.
| Technical Parameter | Model RNVS-70 | Model RNVS-150 | Model RNVS-300 | Model RNVS-600 |
|---|---|---|---|---|
| Total Pumping Capacity | 252 m³/h | 540 m³/h | 1080 m³/h | 2160 m³/h |
| Rotary Vacuum Pump | 65 m³/h | 100 m³/h | 200 m³/h | 200+200 m³/h |
| Roots Vacuum Pump | ZJP -70 | ZJP -150 | ZJP -300 | ZJP -600 |
| Ultimate Vacuum Degree | 3~5 Pa (Depends on Booster Model) | |||
| Total Power (kw) | 2.6 | 5 | 9 | 11.5 |
| Dimensions (m) | 1.20×1.10×1.51 | 1.32×1.02×1.57 | 1.37×1.07×1.61 | 1.77×1.30×1.92 |

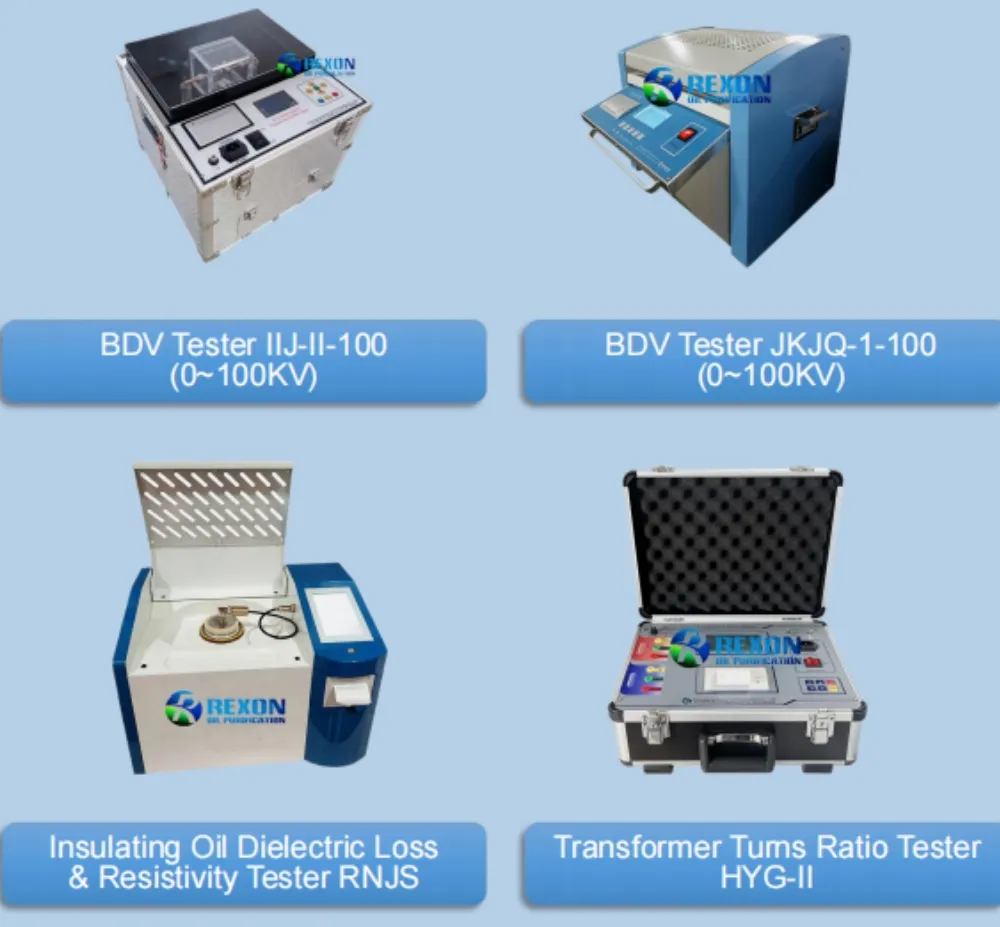

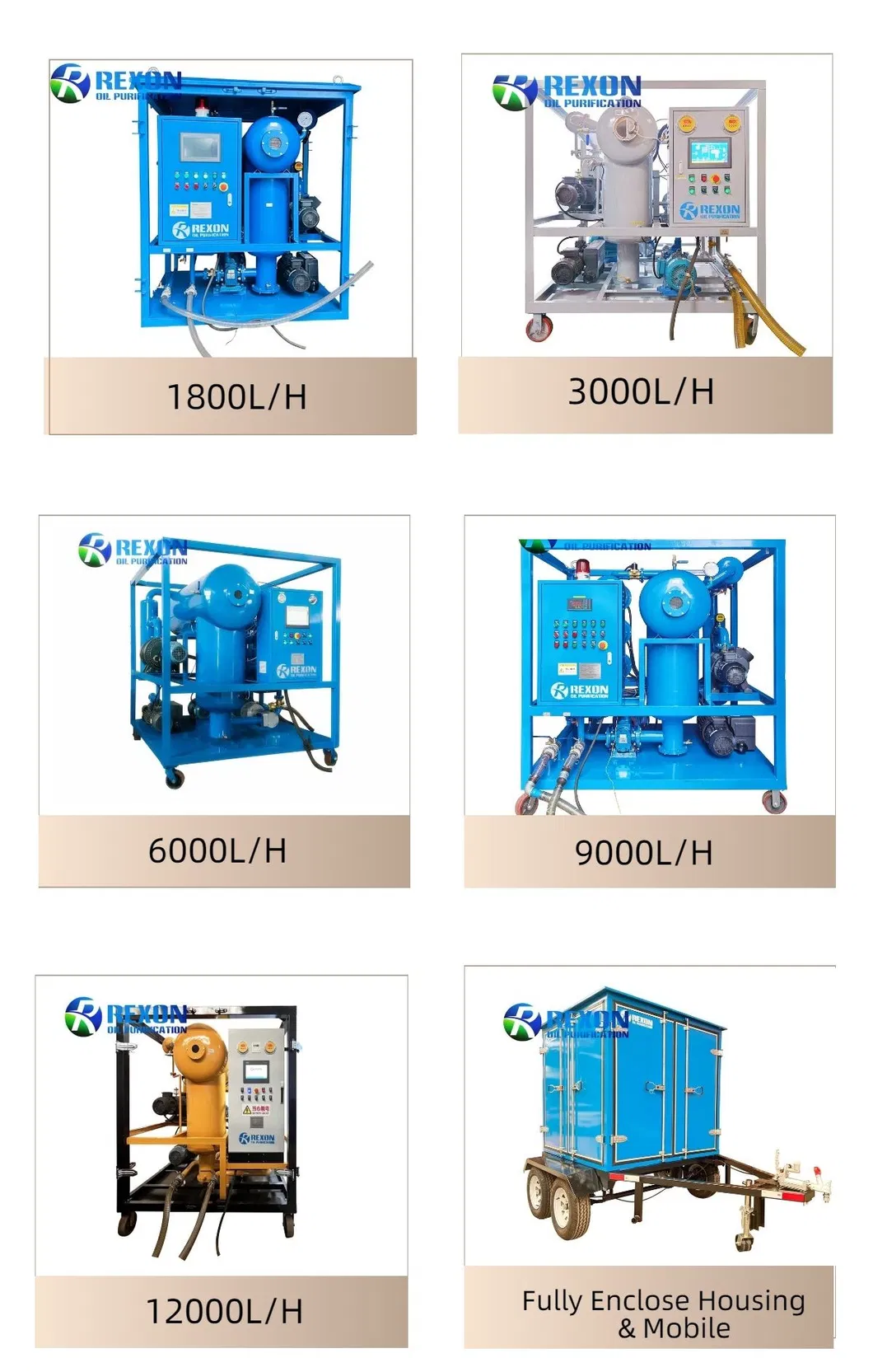

Related Equipments for Transformer Maintenance:
We provide strict control over product quality. From raw material selection to final assembly and testing, every step reflects our commitment to excellence. For packaging, we use Export Standard Wooden Cases to ensure safety during transit.
