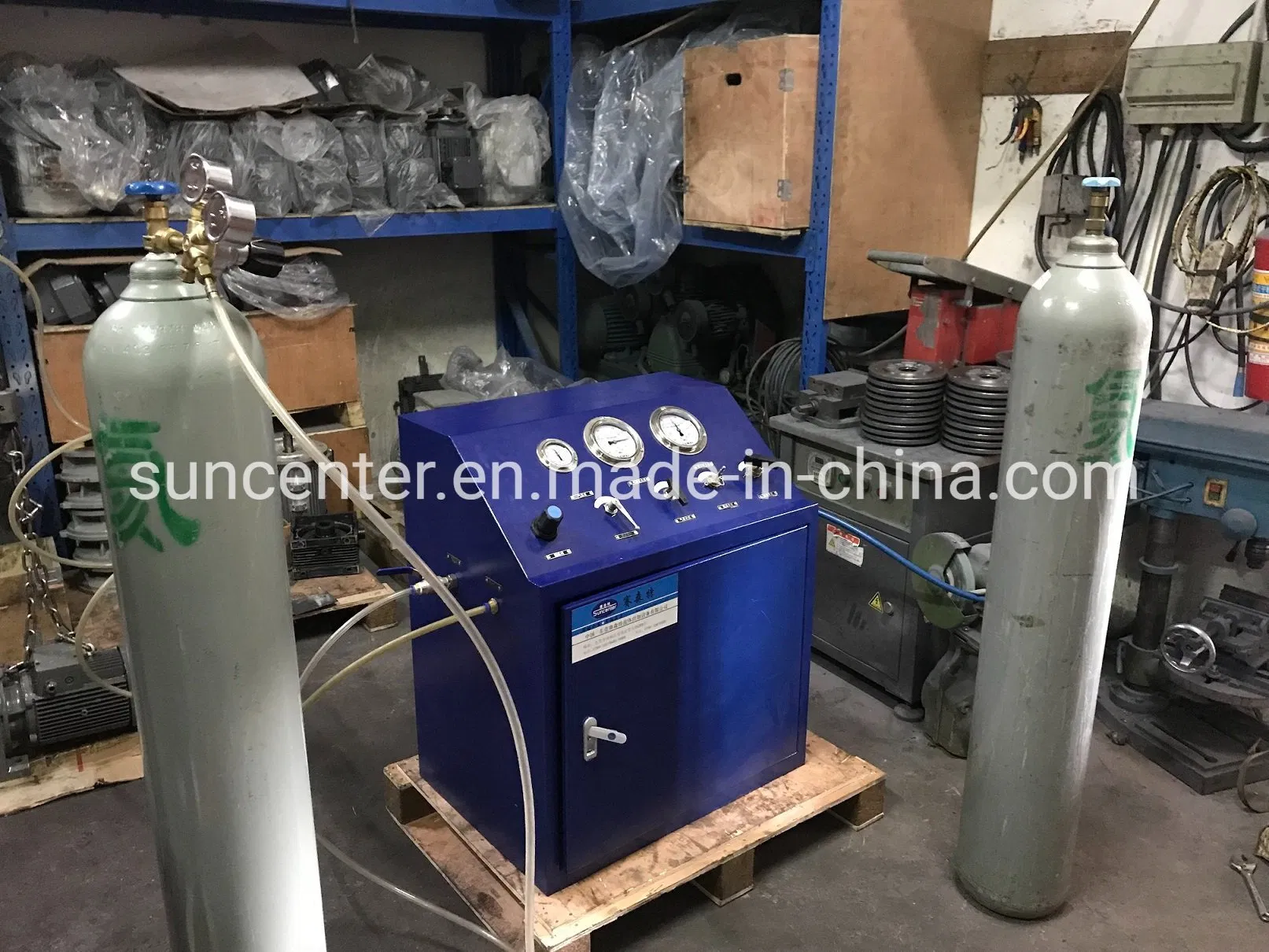

Gas booster pump system for gas cylinder transfer and filling

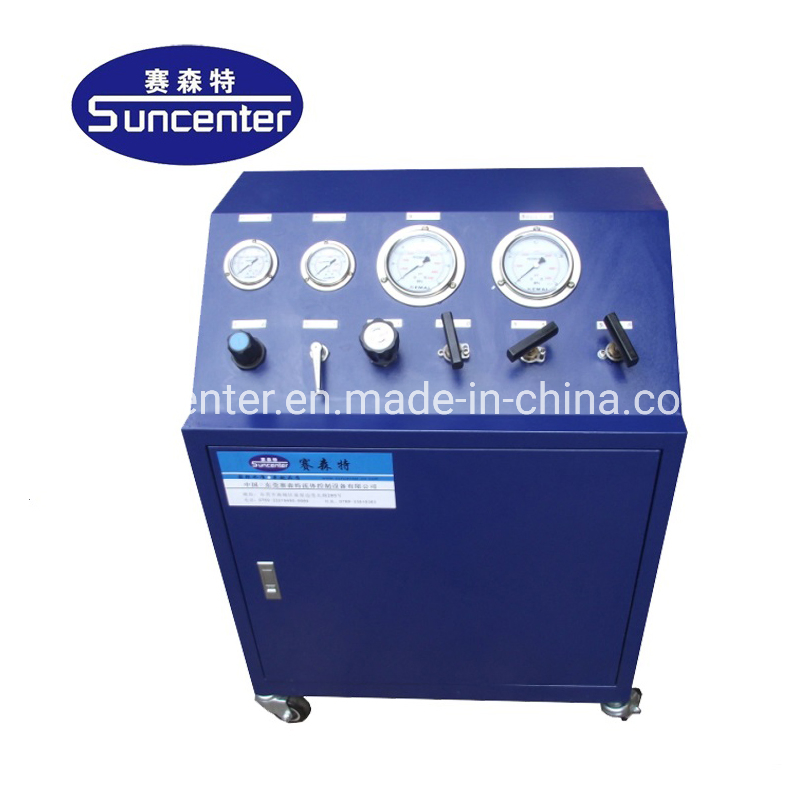

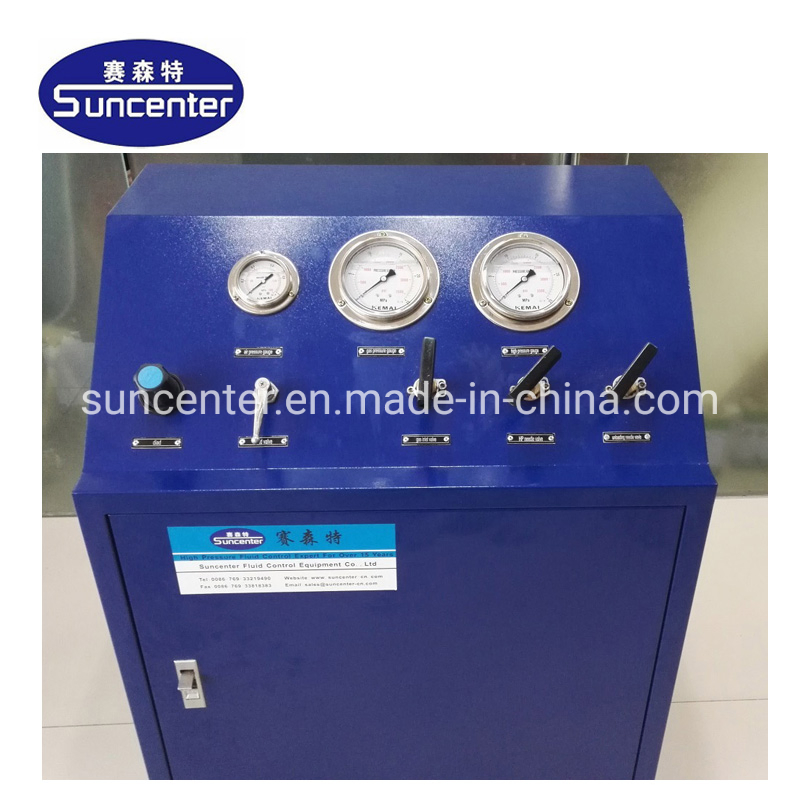

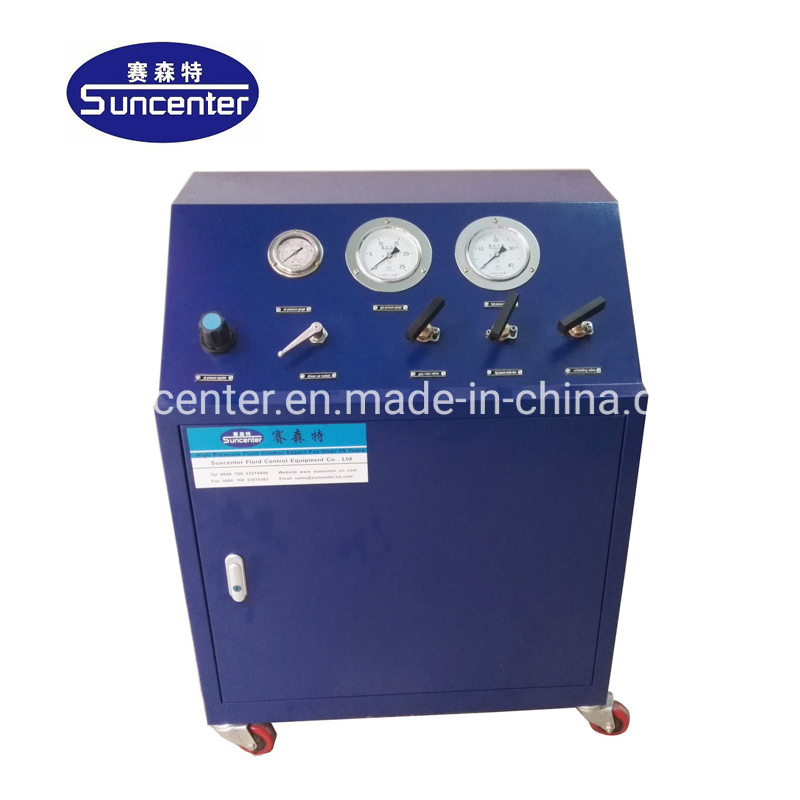

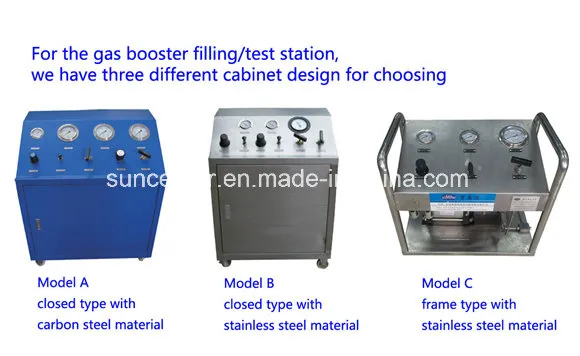

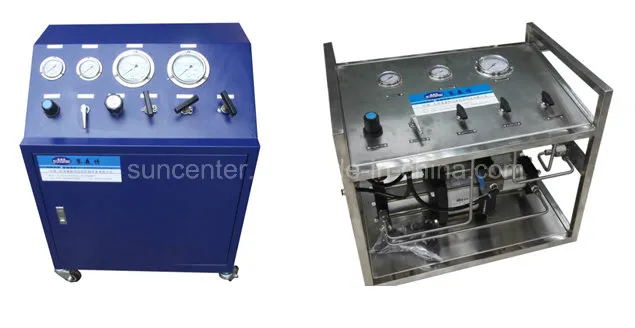

The gas booster systems are compact and delicate solutions tailored to specific requirements, featuring gas boosters and all necessary accessories fitted and installed within a frame or a closed cabinet.

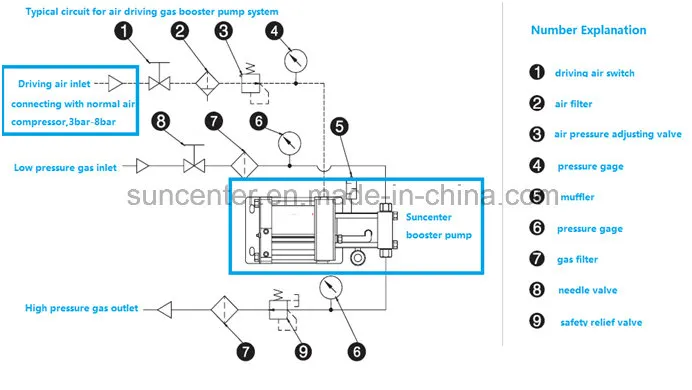

To operate this system, pressure gauges, valves, and pressure regulators are fitted on panels. The outlet pressure is easily set through a simple air regulator. The pump stops automatically when the set end pressure is reached and restarts with a slight drop in outlet pressure or an increase in the air drive pressure.

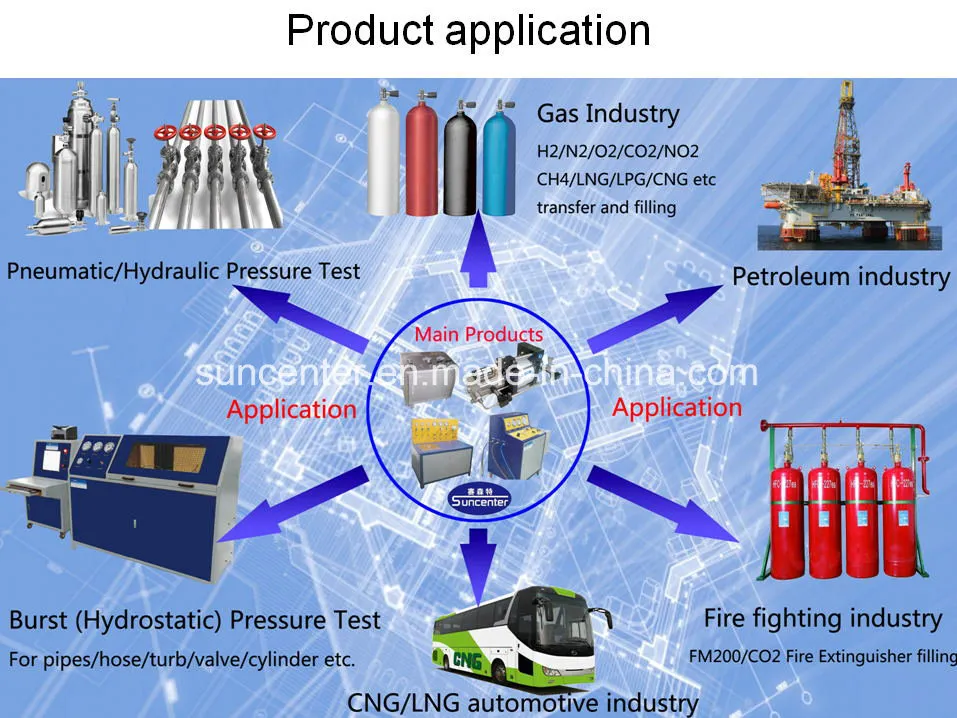

Pneumatic booster systems are used for oil-free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen, Nitrogen, and CO2. The system is driven by air from 3 bar to 8 bar provided by an air compressor. Operating pressures can reach up to 80 MPa; for higher pressure requirements, a pump with double driven heads is an ideal option.
DGS Booster System = Booster Pump + Valves, Gauges, and Integrated Parts
DGS-DGA Series
| Model | Ratio | Min Inlet P (bar) | Max Inlet P (bar) | Max Outlet P (bar) | Driven Air P | Outlet Formula | Flow (L/min) |
|---|---|---|---|---|---|---|---|
| DGS-DGA02 | 2:1 | 1.0 | 16 | 16 | 2-8 bar | 2X PL | 960 |
| DGS-DGA10 | 10:1 | 3.5 | 80 | 80 | 2-8 bar | 10X PL | 210 |
| DGS-DGA25 | 25:1 | 7.0 | 200 | 200 | 2-8 bar | 25X PL | 120 |
| DGS-DGA40 | 40:1 | 10 | 320 | 320 | 2-8 bar | 40X PL | 200 |
| DGS-DGA100 | 100:1 | 25 | 800 | 800 | 2-8 bar | 100X PL | 136 |
DGS-DGD Series (Double Acting)
| Model | Ratio | Min Inlet P (bar) | Max Inlet P (bar) | Max Outlet P (bar) | Driven Air P | Outlet Formula | Flow (L/min) |
|---|---|---|---|---|---|---|---|
| DGS-DGD10 | 10:1 | 3.5 | 80 | 80 | 2-8 bar | 10XPL+ PA | 410 |
| DGS-DGD25 | 25:1 | 10 | 200 | 200 | 2-8 bar | 25XPL+ PA | 396 |
| DGS-DGD60 | 60:1 | 25 | 480 | 480 | 2-8 bar | 60XPL+ PA | 215 |
Note: PL = Driven Air Pressure; PA = Gas Inlet Pressure; PB = Gas Outlet Pressure. To extend pump lifetime, driven air pressure should not exceed 8 bar.
To choose the suitable booster system, please identify:
