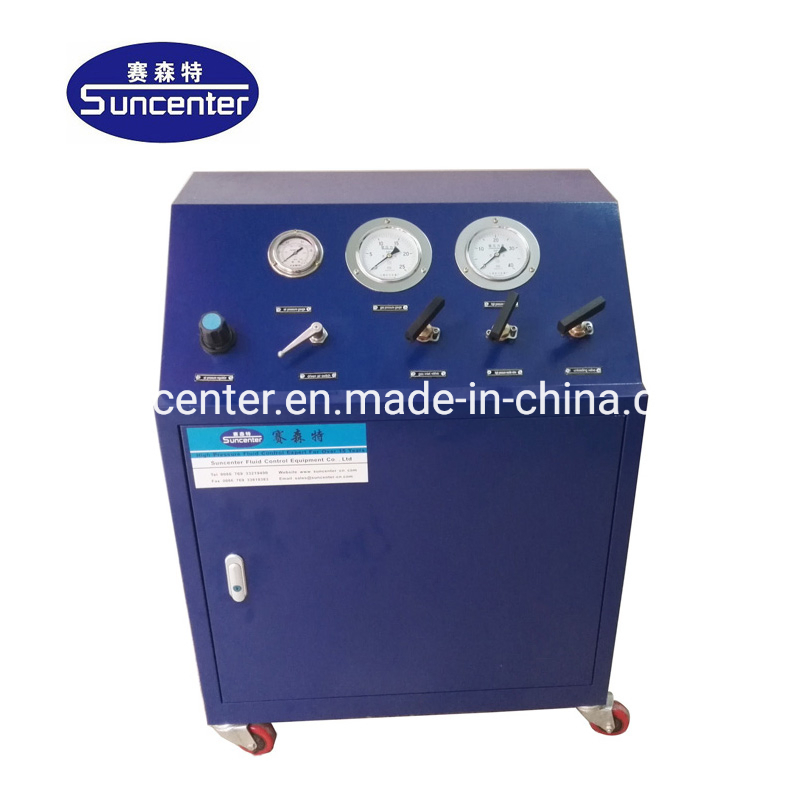

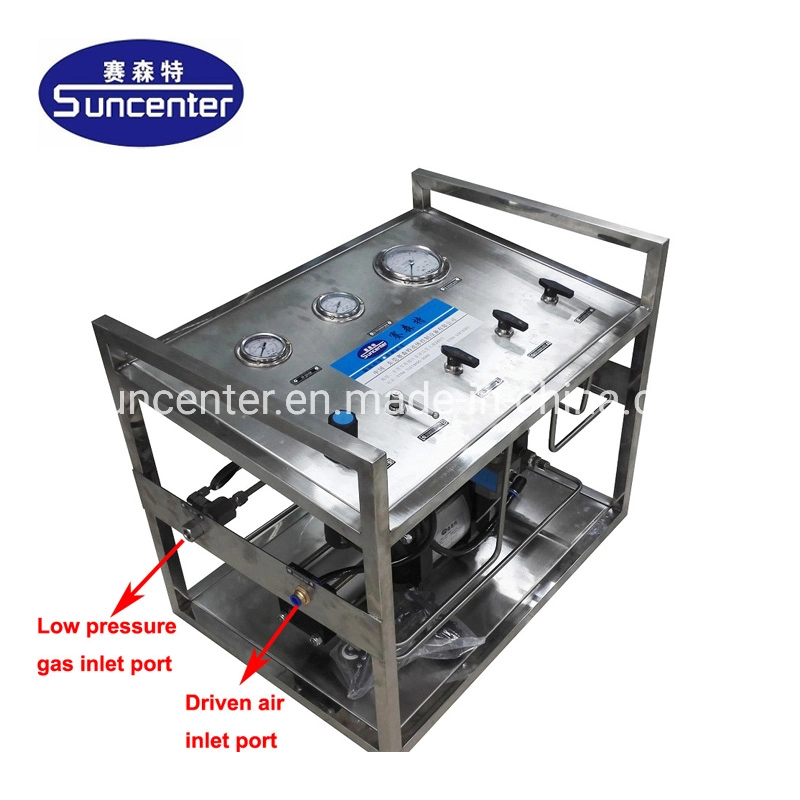

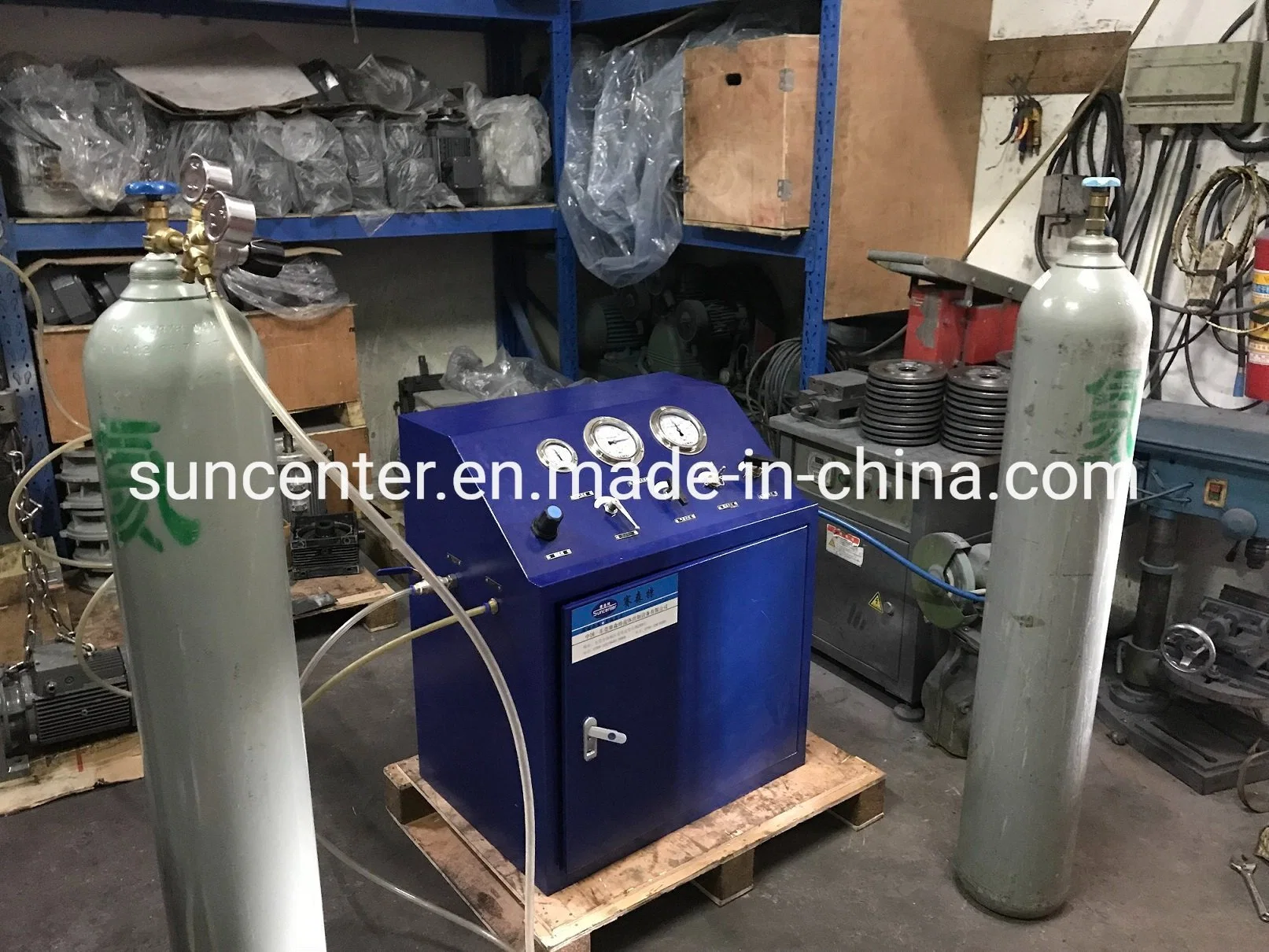

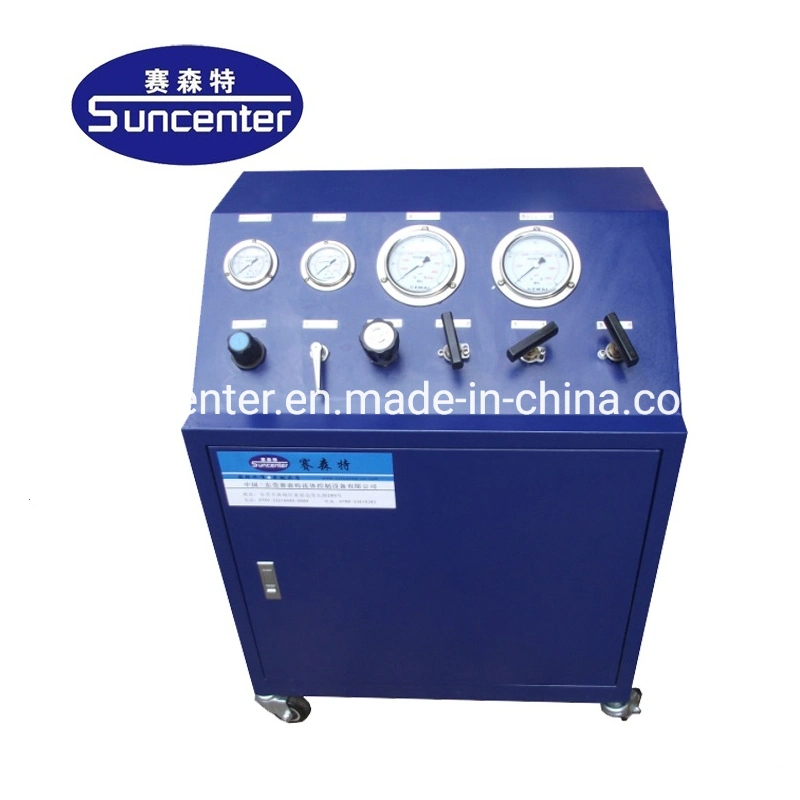

Gas booster pump system for gas cylinder transfer and filling
Pneumatic gas booster systems are compact and delicacy solution tailored to specific requirements with gas boosters as well as all accessories to be fitted and installed in the frame or a closed cabinet.

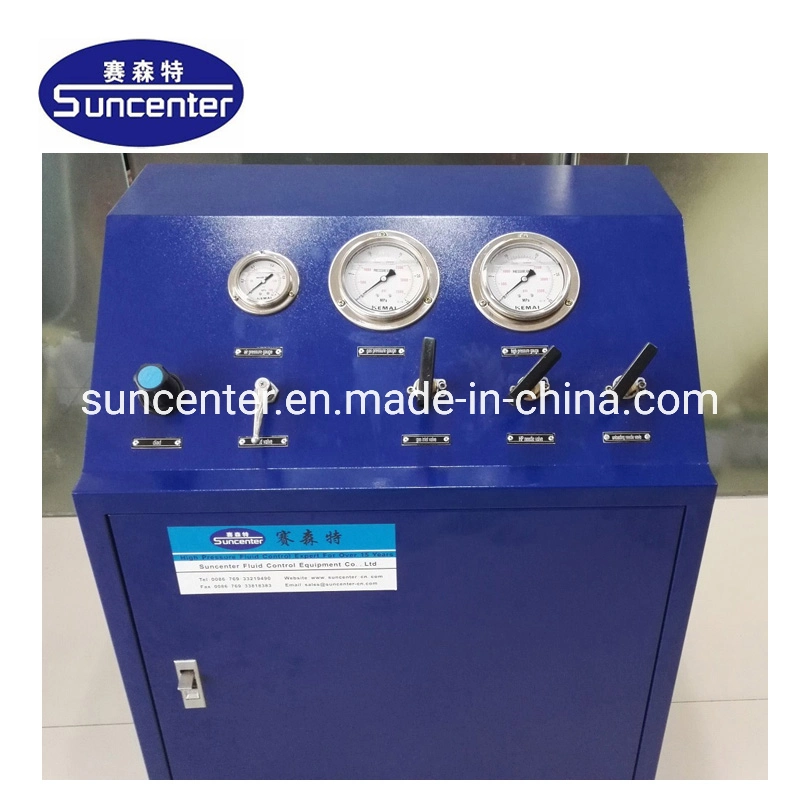

To operate this system, the pressure gauges, valves and pressure regulators have to be fitted on panels. The outlet pressure is easily to be set through a simple air regulator. The pump stops automatically when this end pressure is reached and restarts with a slight drop in the outlet pressure or an increase in the air drive pressure.
These systems are used for oil-free compression of clean shop air as well as industrial gases like Argon, Helium, Oxygen, Hydrogen and Nitrogen, CO2, etc. Driven air ranges from 3 bar to 8 bar.
💡 Key Features:

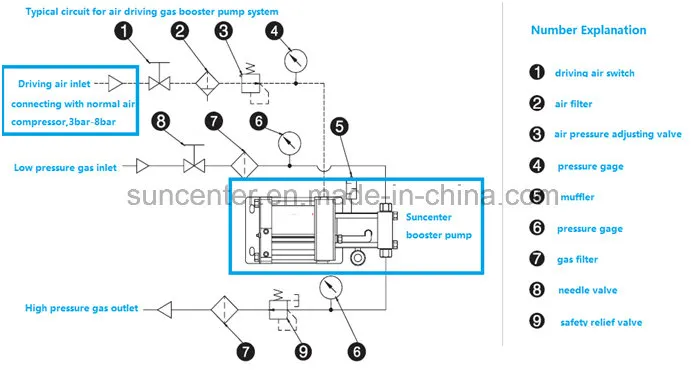

The DGS booster system includes the booster pump plus following valves, gages, and parts:
Standard system including:
DGS-DGA Series Specifications
| Model | Pressure Ratio | Min. Inlet (bar) | Max. Inlet (bar) | Max. Outlet (bar) | Drive Air | Connection | Max Flow (L/min) |
|---|---|---|---|---|---|---|---|
| DGS-DGA02 | 2:1 | 1.0 | 16 | 16 | 2-8 bar | 1/2 / 1/2 | 960 |
| DGS-DGA05 | 5:1 | 0 | 40 | 40 | 2-8 bar | 1/2 / 1/2 | 680 |
| DGS-DGA10 | 10:1 | 3.5 | 80 | 80 | 2-8 bar | 3/8 / 3/8 | 210 |
| DGS-DGA25 | 25:1 | 7.0 | 200 | 200 | 2-8 bar | 1/4 / 1/4 | 120 |
| DGS-DGA60 | 60:1 | 20 | 480 | 480 | 2-8 bar | 1/4 / 1/4 | 180 |
DGS-DGD Series Specifications
| Model | Pressure Ratio | Min. Inlet (bar) | Max. Inlet (bar) | Max. Outlet (bar) | Drive Air | Connection | Max Flow (L/min) |
|---|---|---|---|---|---|---|---|
| DGS-DGD10 | 10:1 | 3.5 | 80 | 80 | 2-8 bar | 3/8 / 3/8 | 410 |
| DGS-DGD25 | 25:1 | 10 | 200 | 200 | 2-8 bar | 1/4 / 1/4 | 396 |
| DGS-DGD60 | 60:1 | 25 | 480 | 480 | 2-8 bar | 1/4 / 1/4 | 215 |
In order to choose the suitable booster system, please confirm:
A: The pump is designed to balance the forces. When the outlet pressure reaches the set ratio relative to the drive air pressure, the pump stops automatically. It will restart if there is a pressure drop at the outlet.
A: No, the system is completely pneumatically driven. It only requires a connection to an air compressor (3-8 bar) to operate, making it safe for explosive environments.
A: Yes, the system provides oil-free compression, which is essential for handling clean industrial gases like Oxygen, Argon, and Nitrogen without contamination.
A: Regular maintenance involves checking the F.R.L unit to ensure clean, lubricated air is being supplied. The seals are designed for a long service life under standard operating conditions.

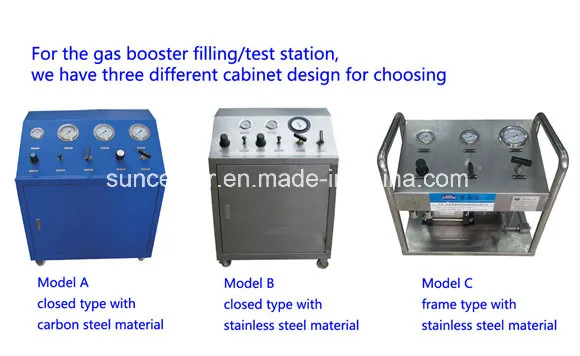

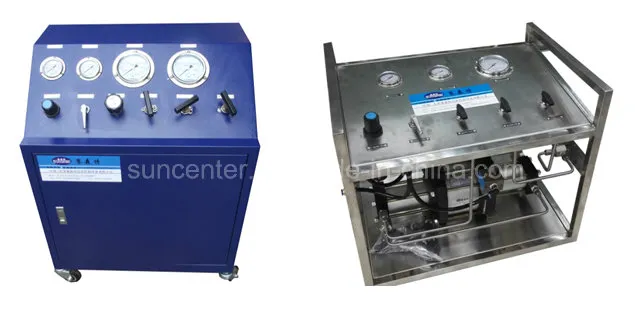

A: Yes, we offer different cabinet models (A, B, C) and can customize the configuration of valves and gauges based on specific site requirements.
A: Standard systems can handle up to 80 MPa (800 bar). For requirements exceeding this, double-driven head options are available.
