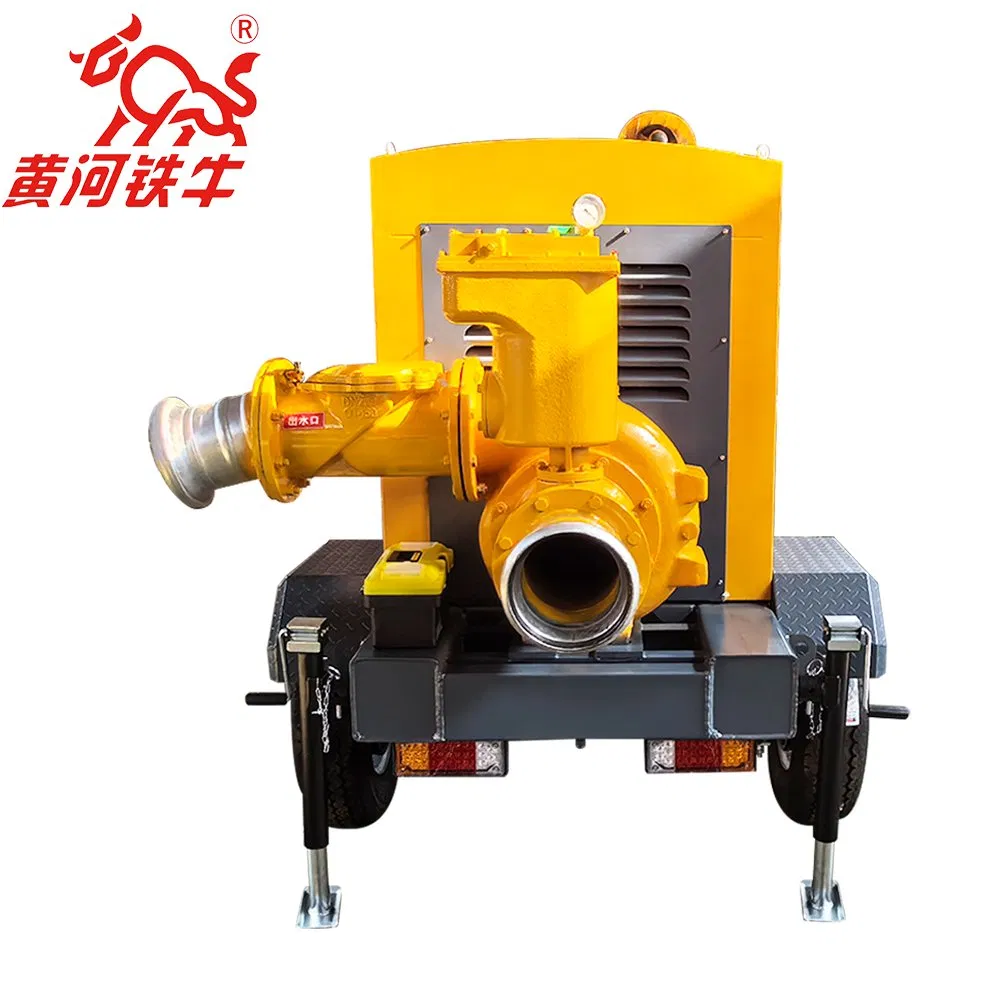

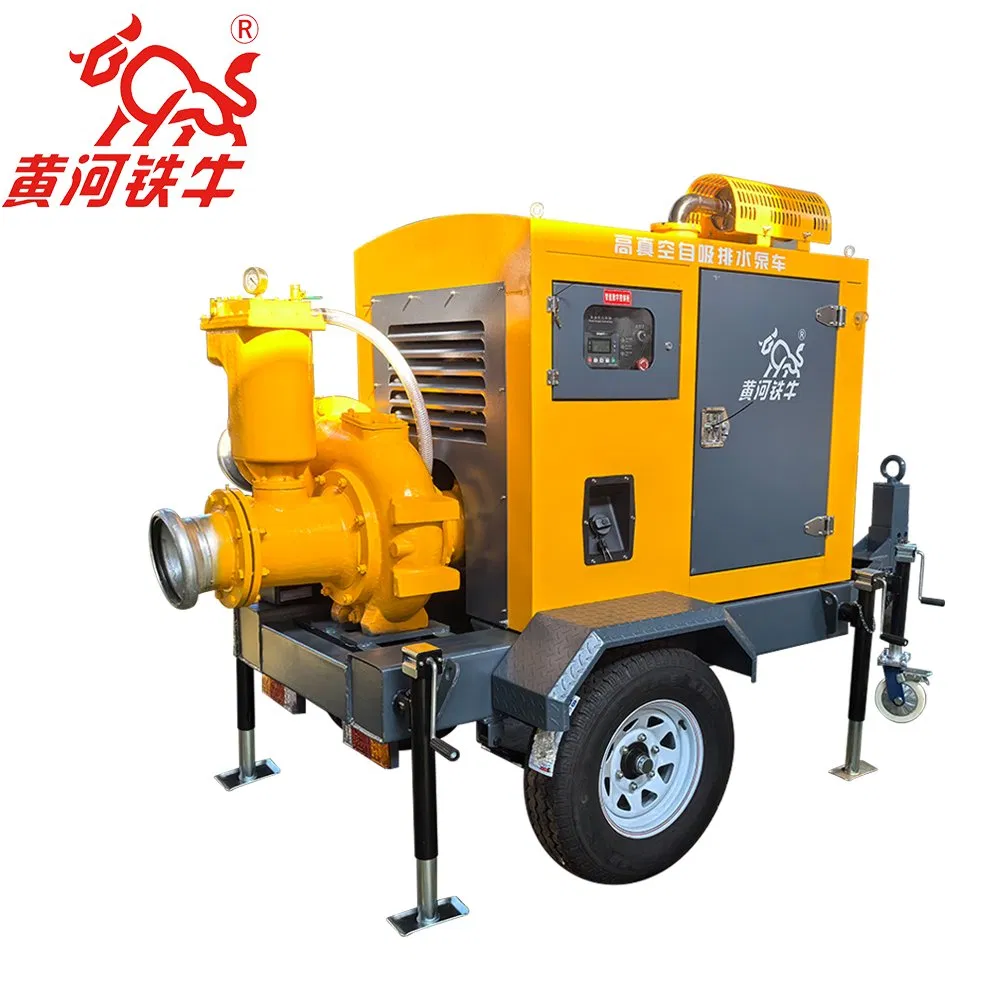

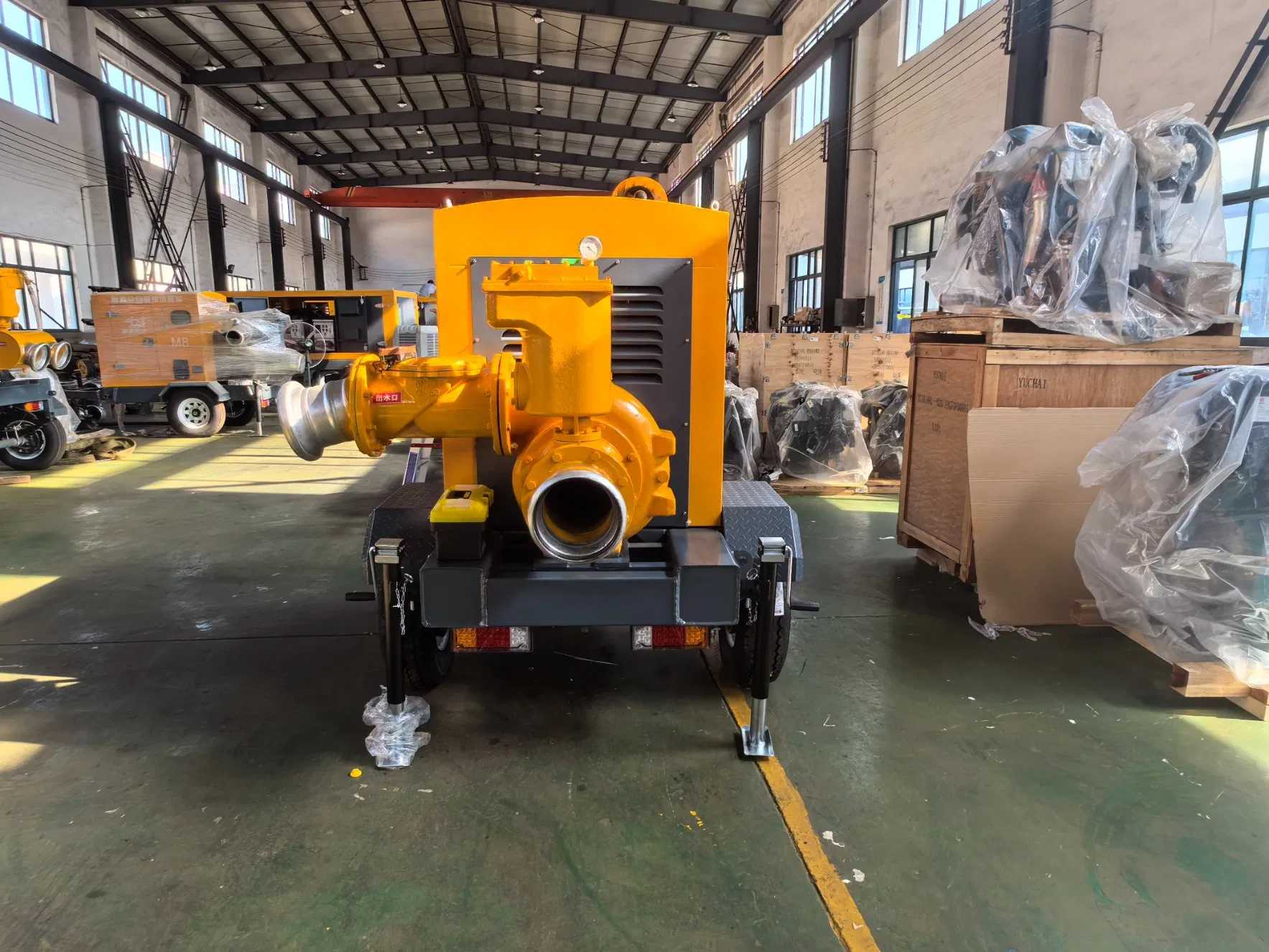

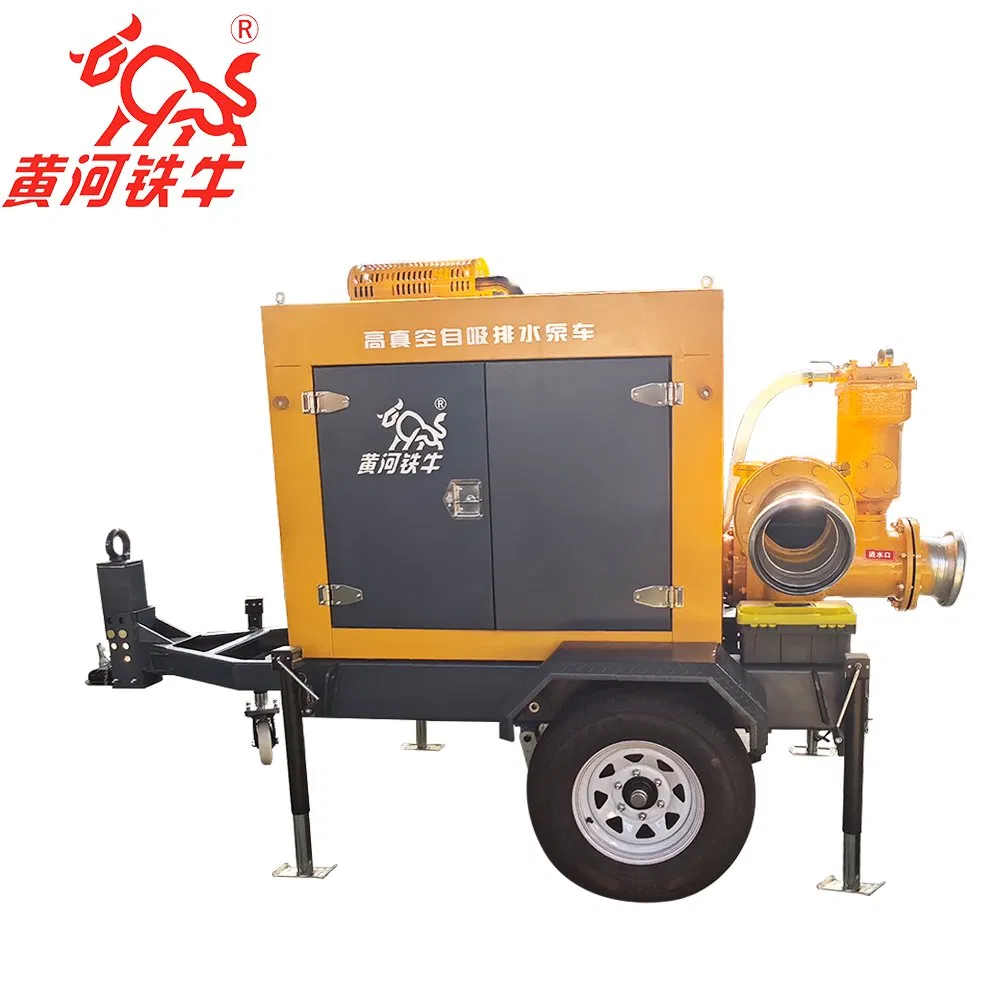

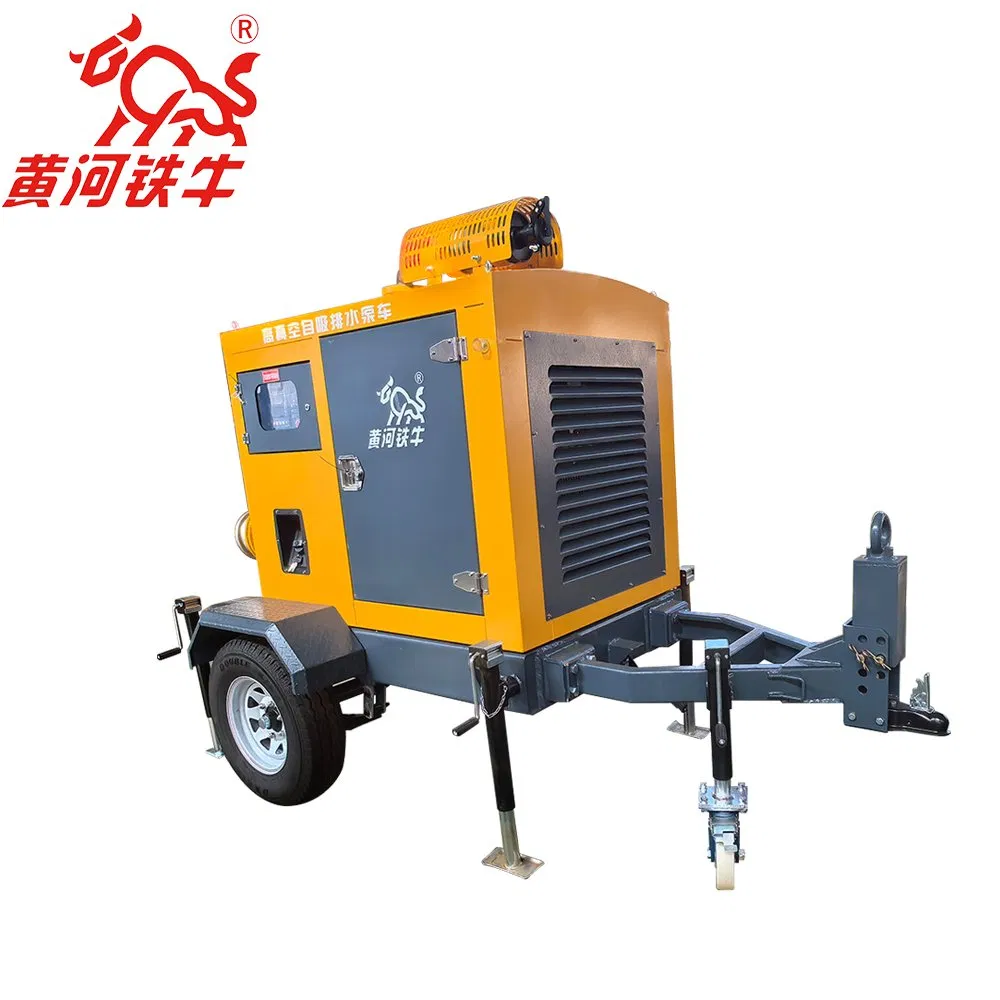

Diesel Self-Priming Centrifugal Pumps Q=600m3/H High Vacuum Assisted System Suction Depth 9m

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.M8
Max. Head50-80m
Max. Capacity800m3/H
Driving TypeDiesel Engine
MaterialCast Iron
StructureSingle-stage Pump
ApplicationSewage Pump, Slurry Pump
Max Suction Lift9m
AccessoriesFuel Tank, Suction Pipes, Hoses, Quicking Coupling
Production Capacity1000PCS/Year
📘 Product Description
The high-vacuum assisted self-priming pump is a new design incorporating years of research to solve vacuum system challenges. Our 6-inch and 8-inch models are optimized for medium flow rate applications with a suction lift of up to 9m and flow rates ranging from 300 to 700 cubic meters per hour. The machine is designed for intuitive operation, allowing users to master it within 5 minutes.

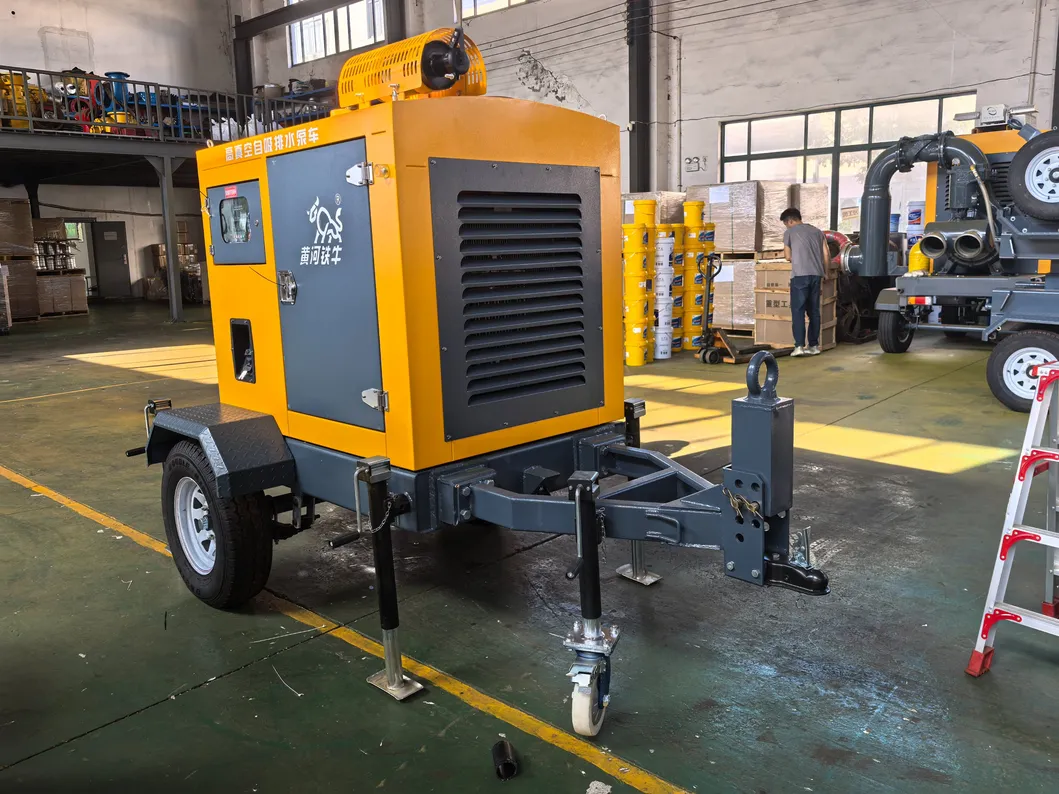

Diesel Self-Priming Pump View 1

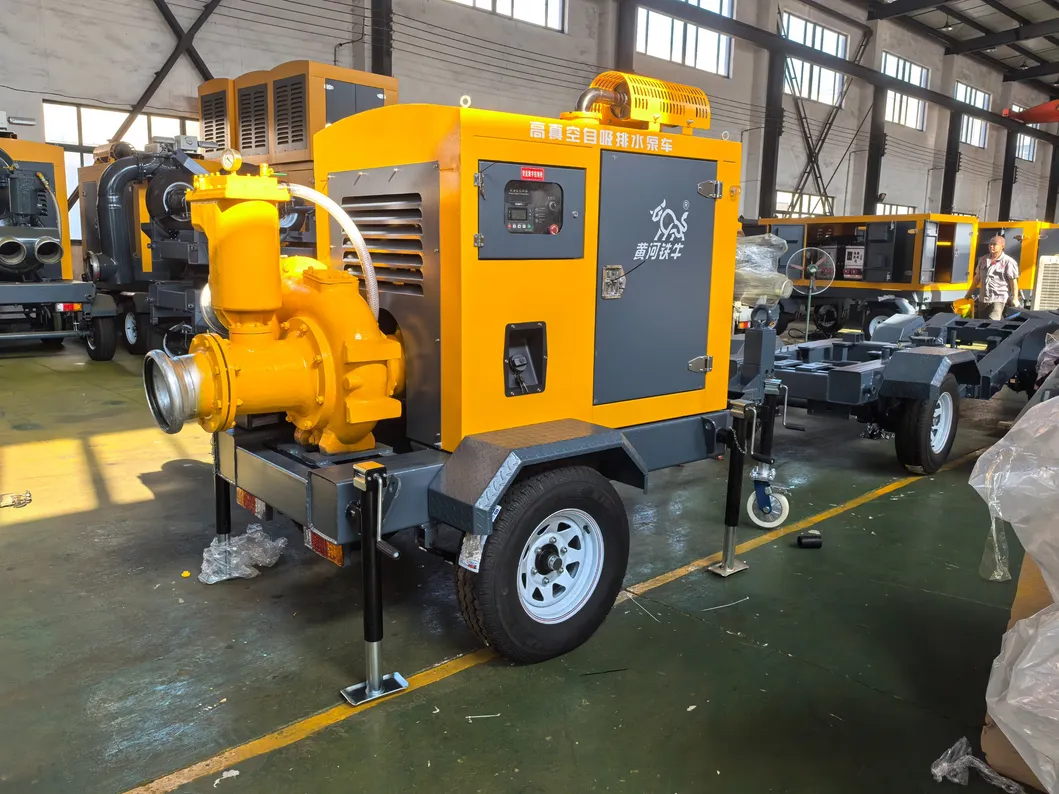

Diesel Self-Priming Pump View 2
Diesel Self-Priming Pump View 3
⚙️ Technical Parameters
Pump SpecificationsEngine Details
ModelM8Engine BrandWEICHAI
Flow Rate600m3/hContinuous Power53kw
Suction/Discharge8inch/8inchRated Speed1800rpm
Max. Head50mMax. Suction Lift9m
Solids Handling75mmStandard Fuel Run-time8 hours
Base Frame N.W.700kgsTrailer Type N.W.1300kgs
🛠️ Installation Instructions
Follow these simple steps to operate the machine:
  • 01 Connect the suction pipe securely.
  • 02 Connect the discharge hose.
  • 03 Turn on the power switch to connect battery power.
  • 04 Press the green START button on the controller panel.
  • 05 Wait while the machine begins automatic operation.
🏢 Factory Profile
Established in 2012, we specialize in the design and manufacturing of high-performance water pumps. With a commitment to quality and innovation, we maintain certifications including ISO9001-2015, ISO14001:2015, and ISO45001:2018. Our products are tailored to meet specific job site requirements across industries such as chemical, oil, environment, metallurgy, water supply, and ocean engineering.

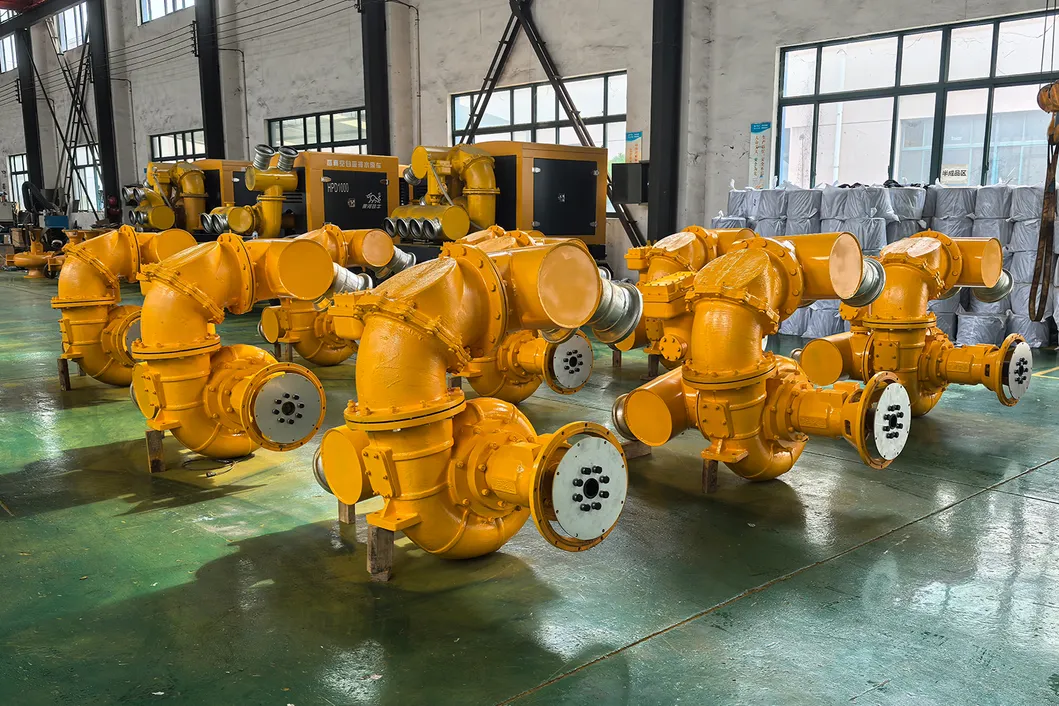

Factory Facility 1

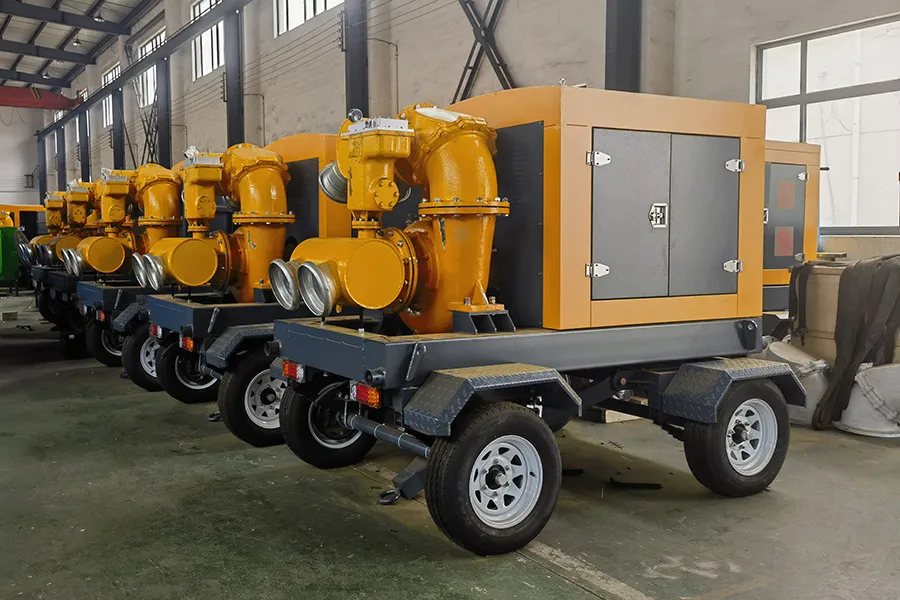

Factory Facility 2

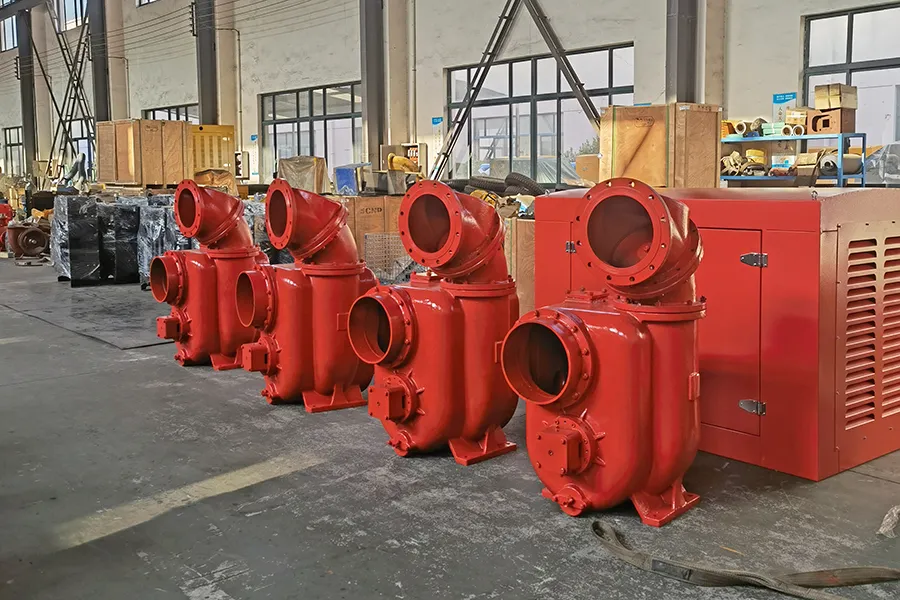

Factory Facility 3
🌍 Product Usage Scenarios

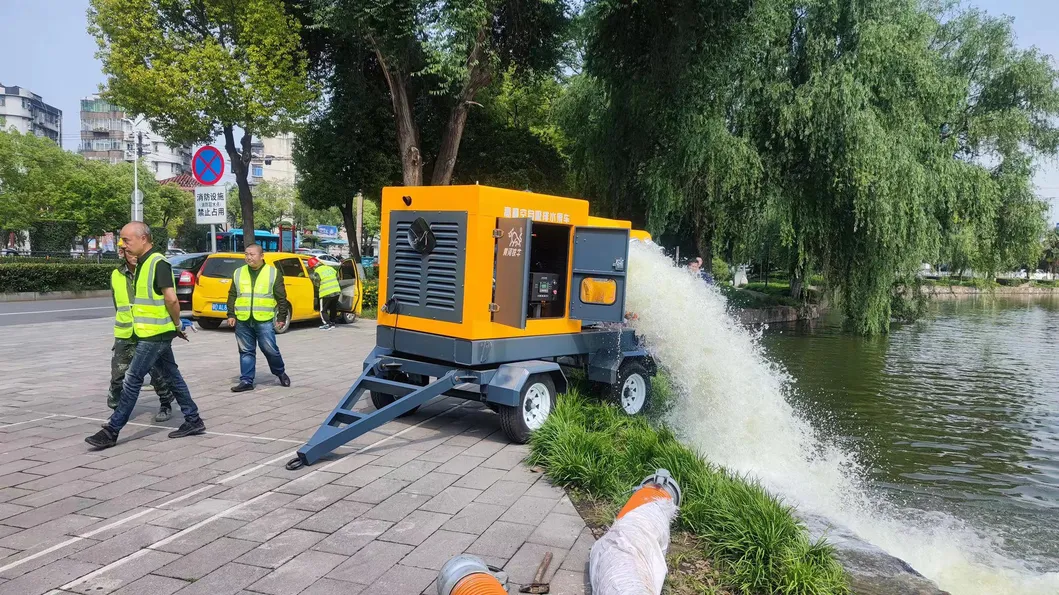

Application Scenario 1

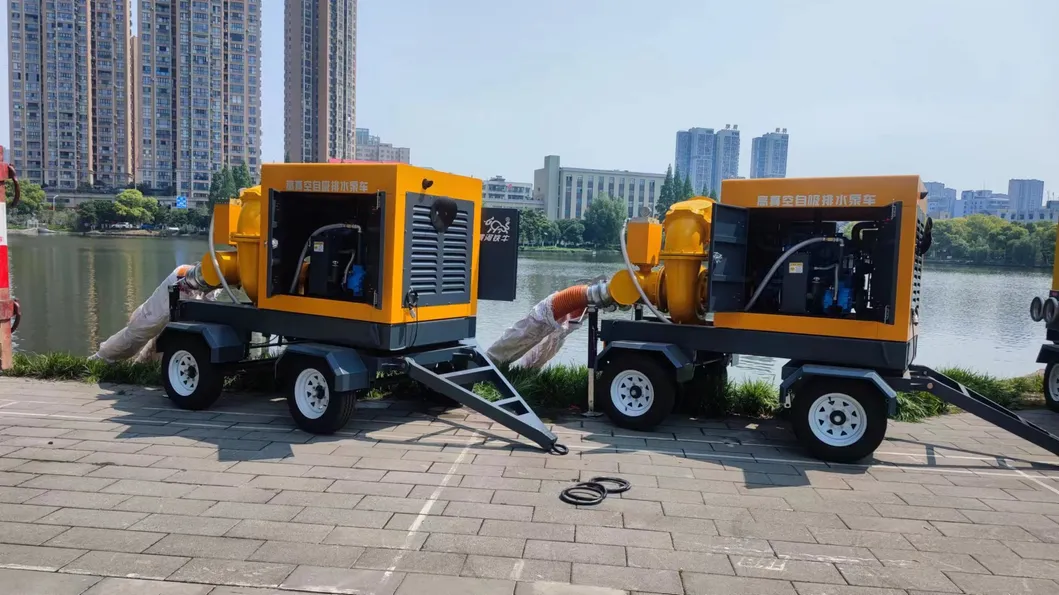

Application Scenario 2
Frequently Asked Questions
Q1. What is your standard lead time?
Normally our lead time is 30 days, though the specific timeframe depends on the details of the order.
Q2. Are you a manufacturer or a trading company?
We are an experienced manufacturer focused on diesel engine pump manufacturing and research.
Q3. Do you offer OEM or ODM services?
Yes, we provide full OEM and ODM manufacturing services, including placing customer logos on the machines.
Q4. What delivery terms do you accept?
We accept common international terms including C&F, FOB, and CIF.
Q5. What is the maximum suction lift of this pump?
The high-vacuum assisted system allows for a maximum suction lift of up to 9 meters.
Q6. Which industries can use these pumps?
These pumps are widely used in chemical, oil, environment, metallurgy, water supply, drainage, electricity, and ocean engineering industries.
