Product Description

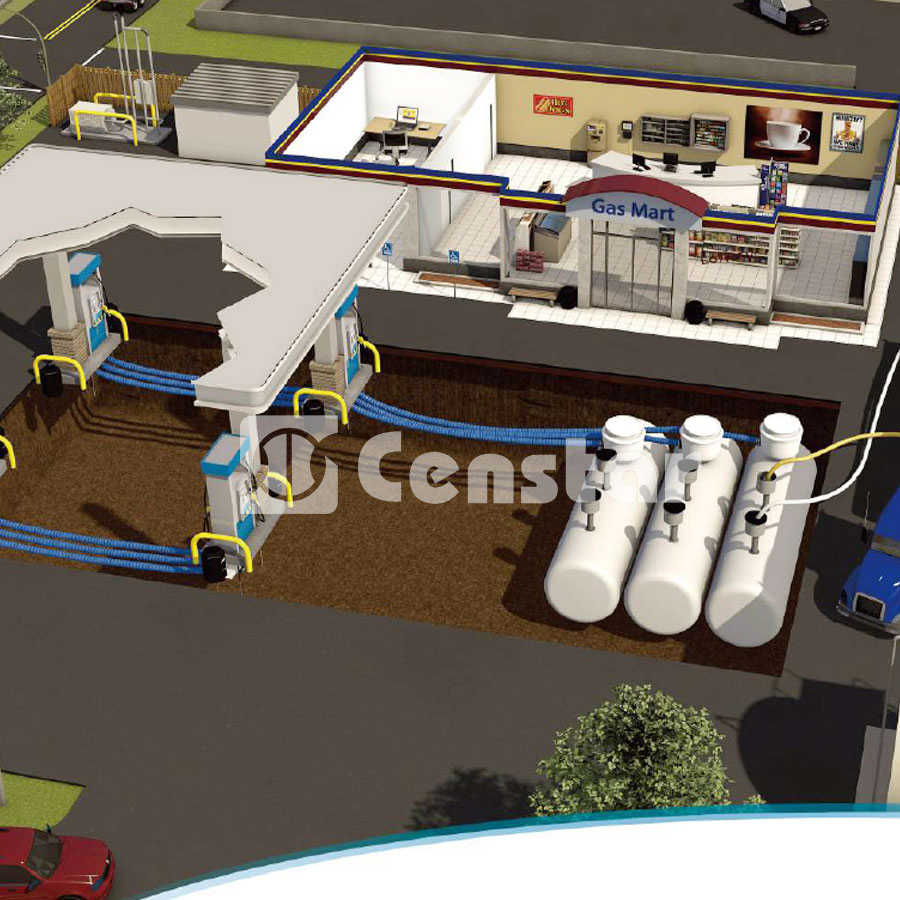

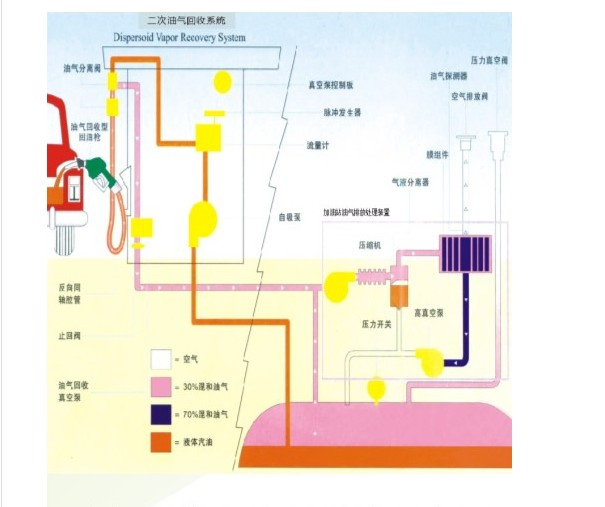

Distributed Vapour Recovery System Details:

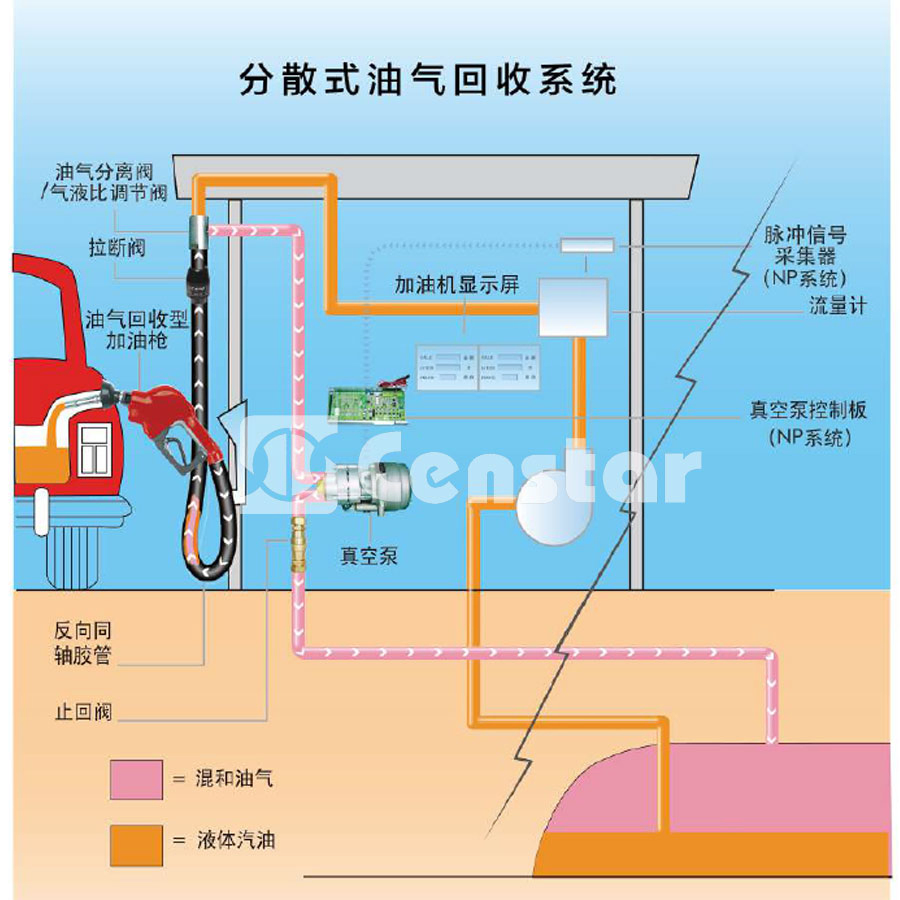

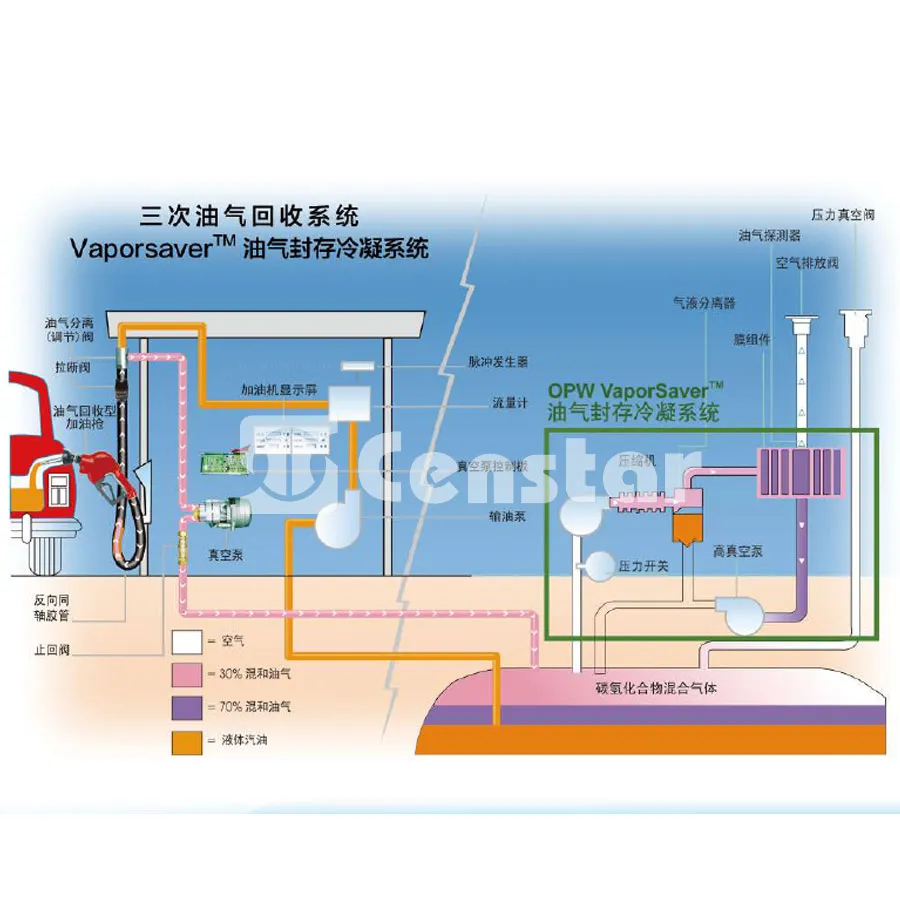

Stage II Vapor Recovery system recovers vapor to the ground storage tanks. The vapor emissions treatment plant transforms vapor into liquid gasoline, controlling emissions to meet environmental standards and ensuring significant energy savings.
Technical Parameters
- Operating ambient temperature: -40ºC ~ +55ºC
- Relative Humidity: 20% ~ 95%
- Gas-liquid ratio range: 1.0 ~ 1.2
- Maximum fueling rate of nozzle: 45L/min
- Power supply: 220V/380V 50Hz
- Recycle Method: Vacuum-assisted way
HSP01 Vapor Recovery Pump
- Model: HSP01
- Set pressure: 0.1Mpa
- Maximum fueling rate: 60L/min
- Operating temperature: -40ºC ~ +55ºC
- Maximum vacuum: 0.062MPa
- Noise: <62dB (A)
- Motor power: 120W/250W
- Input speed: 2900rpm
HSP03 Vapor Recovery Gear Pump
- Model: HSP03
- Set pressure: 0.1Mpa
- Maximum fueling rate: 76L/min
- Operating temperature: -40ºC ~ +55ºC
- Maximum vacuum: 0.038MPa
- Noise: <70dB (A)
- Input speed: 1900rpm
- Patent certificate: ZL200820221146.9
Frequently Asked Questions
How does the Stage II Vapor Recovery system work?
It uses a vacuum-assisted method to recover gasoline vapors during fueling, directing them back to the ground storage tanks to reduce emissions and save energy.
What is the operating temperature range for these systems?
The system is designed to operate reliably in ambient temperatures ranging from -40ºC to +55ºC.
What is the difference between HSP01 and HSP03 pumps?
HSP01 is a standard vapor recovery pump with a 60L/min fueling rate, while the HSP03 is a gear pump with a higher fueling rate of 76L/min and specific patented technology.
What power supply is required for the system?
The system is compatible with both 220V and 380V power supplies at 50Hz.
Is the equipment certified for international standards?
Yes, the system holds ISO9001: 2000 certification, ensuring high quality and manufacturing standards.
What are the noise levels of the recovery pumps?
The HSP01 pump operates at less than 62dB (A), and the HSP03 gear pump operates at less than 70dB (A).
