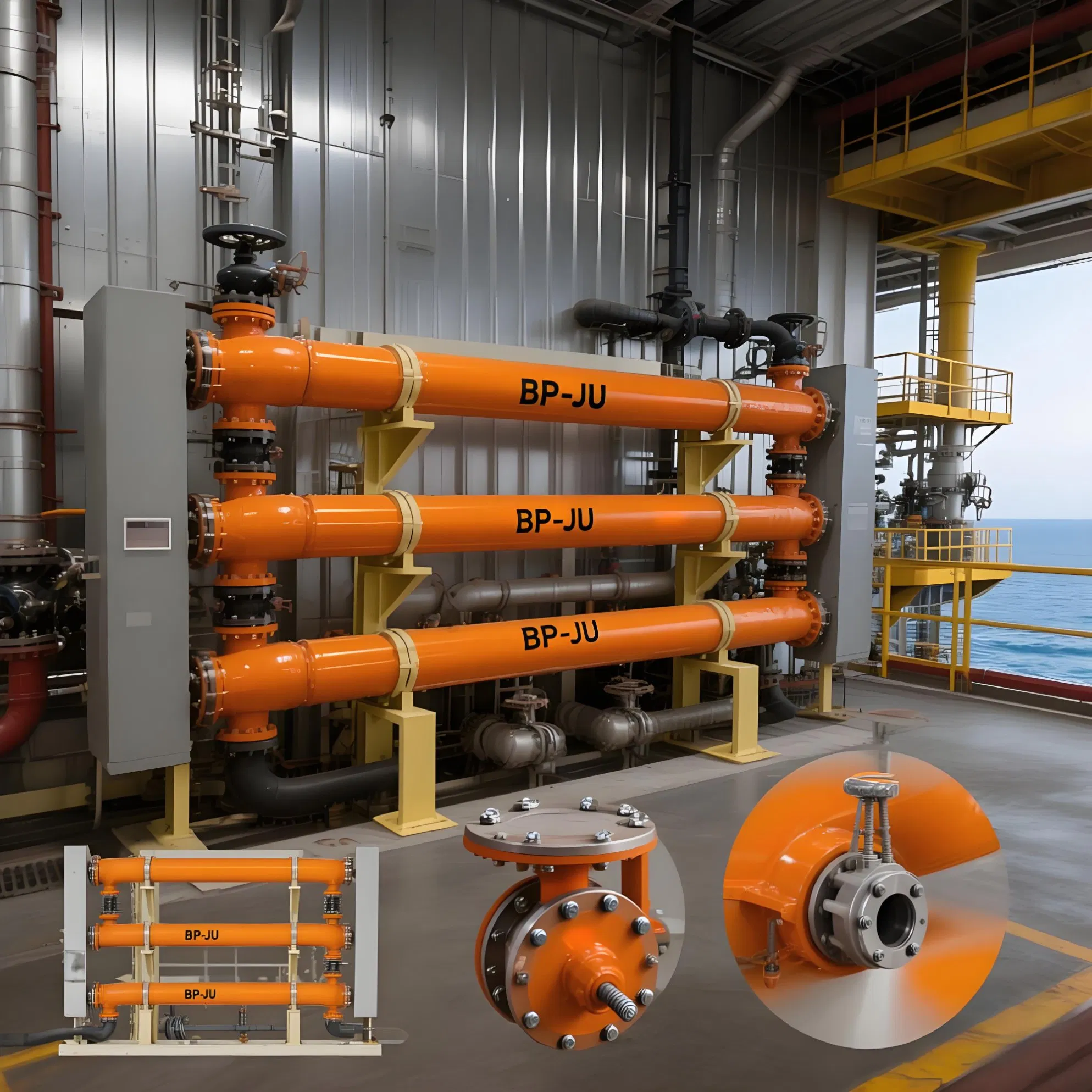

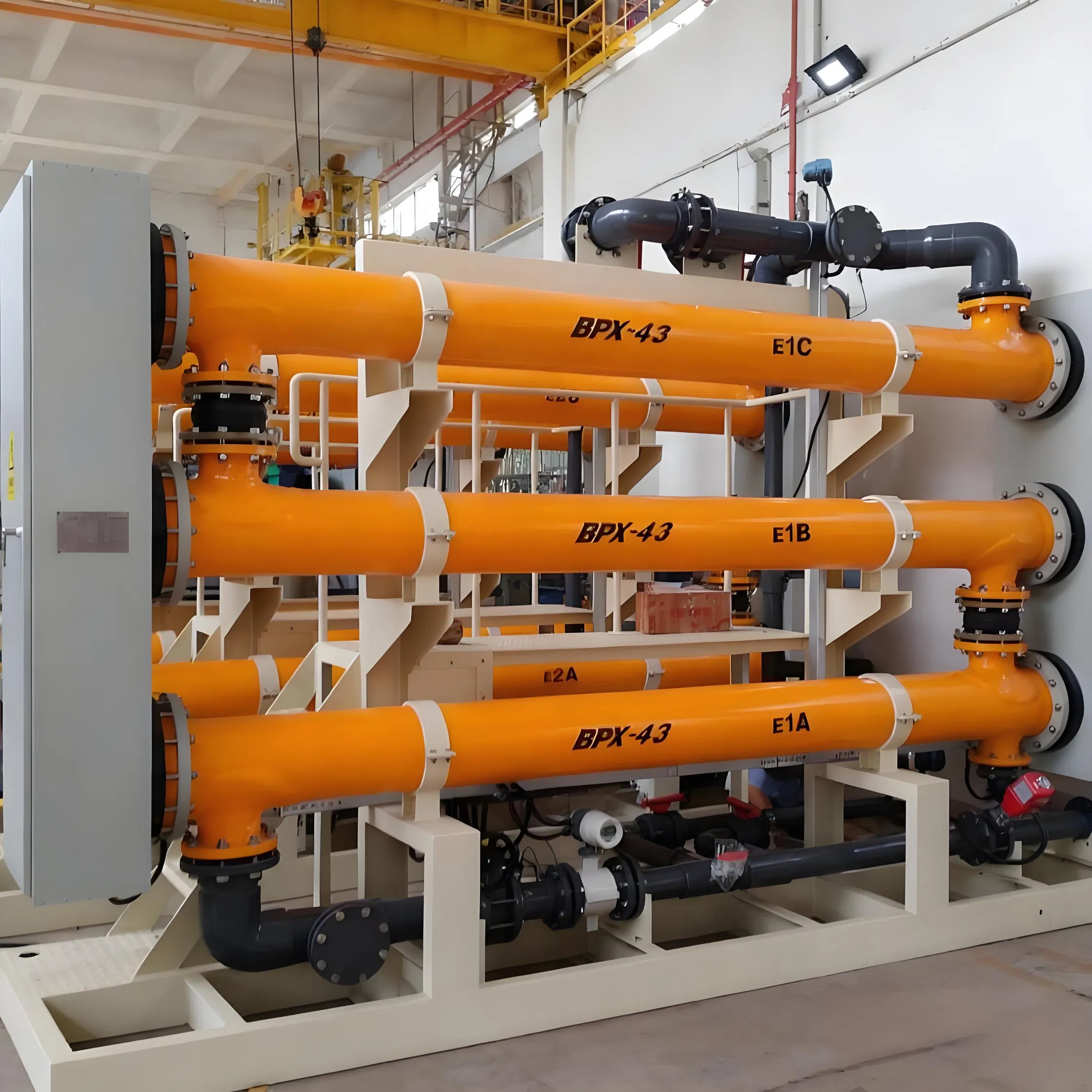

1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1 / 5
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System
1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System

1000-2000ppm Bse-90 Seawater Electrolysis Chlorination Complete System

After-sales Service: Remote Guide by Video/Calling Communication
Warranty: 2 Years
Certification: ISO9001, CE
Send Inquiry

Product Description

📊 Basic Info
Model NO.BSE-90
ApplicationIndustry
Voltage380V
Disinfection MethodChlorination
Transport PackageContainer
OriginChina
🔧 Product Description

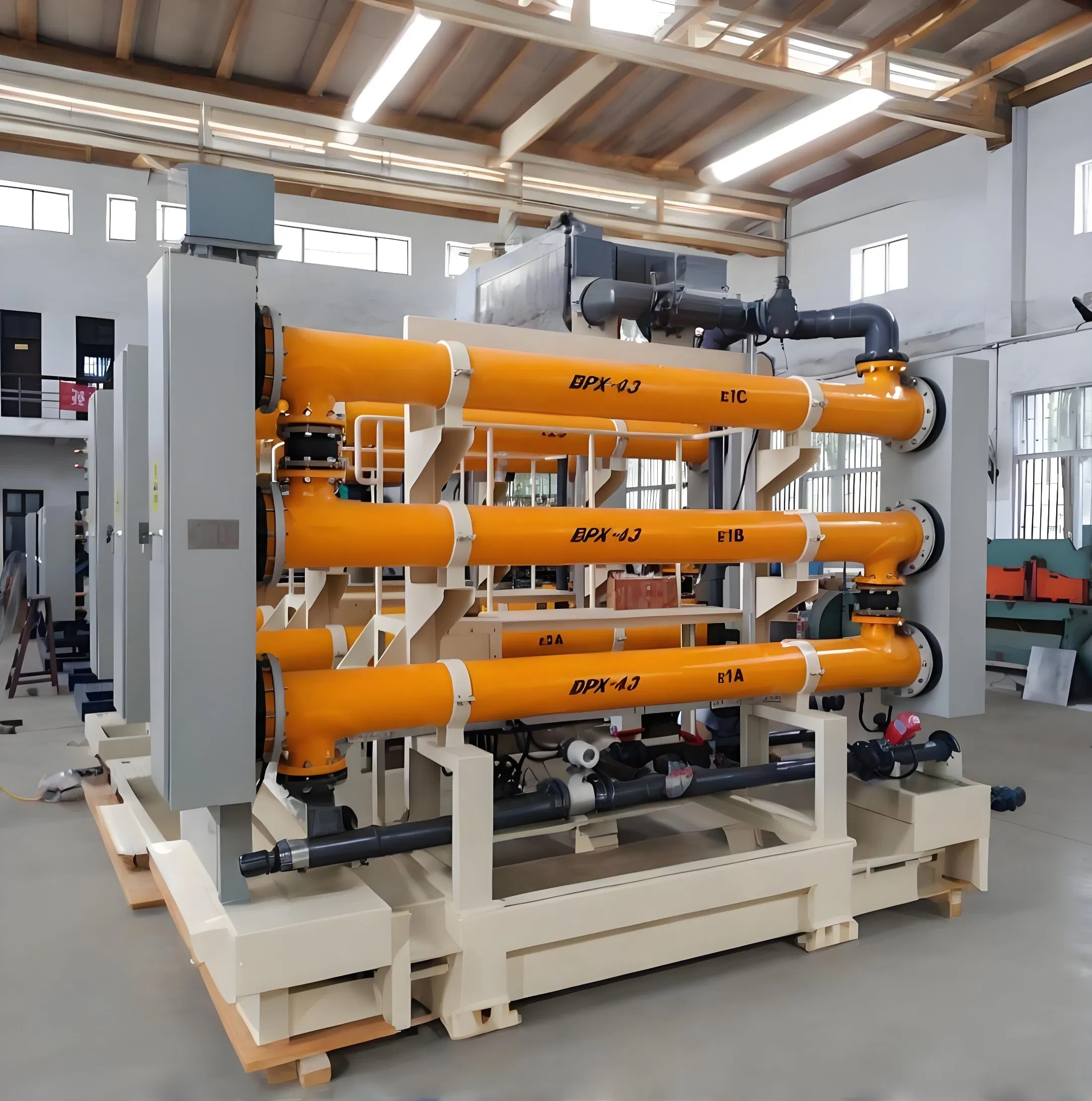

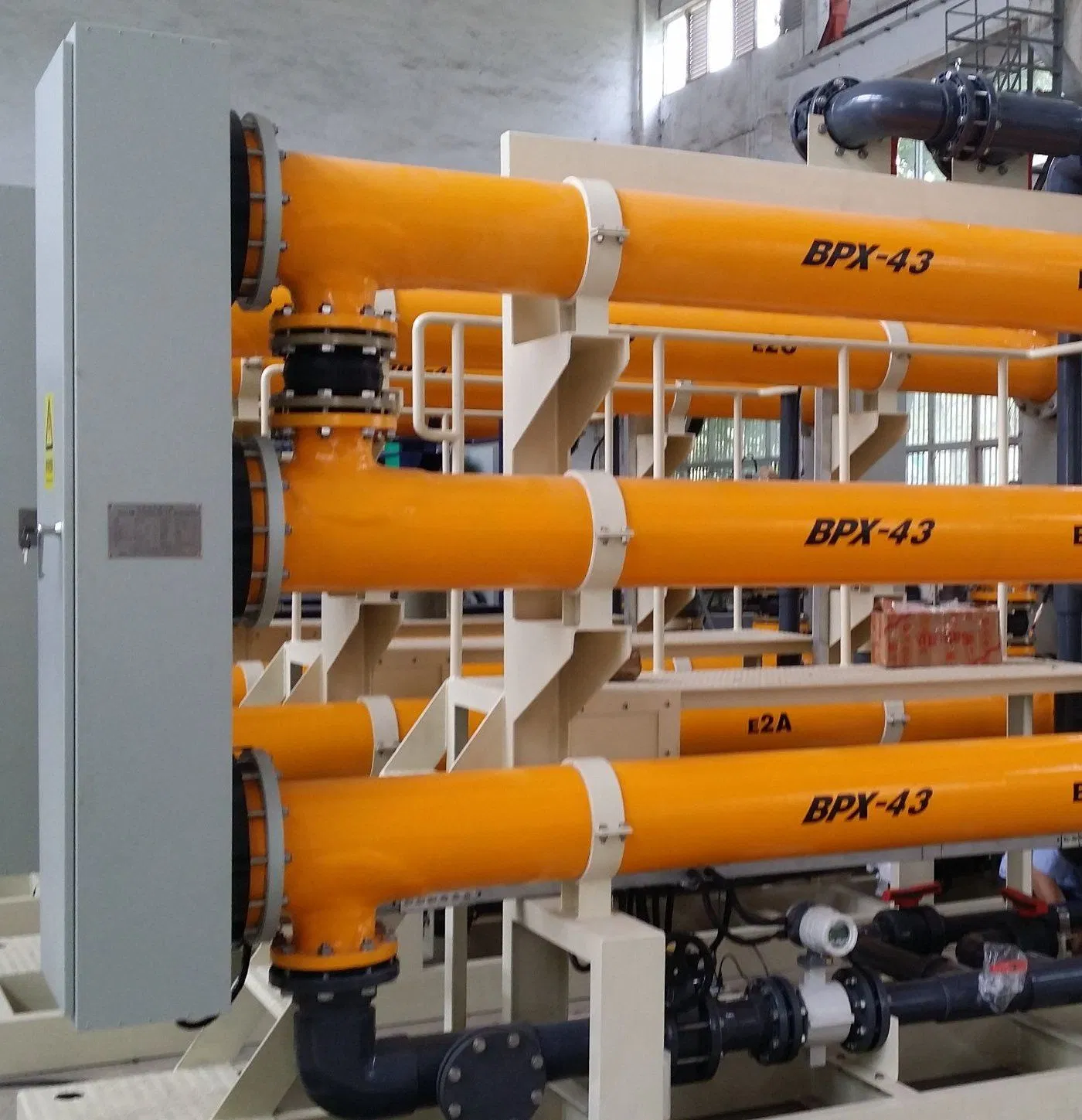

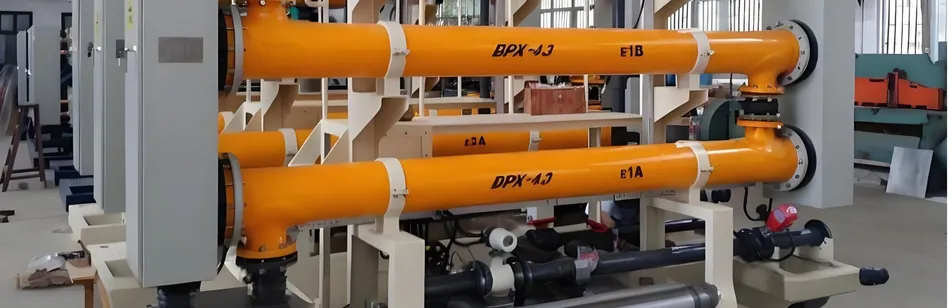

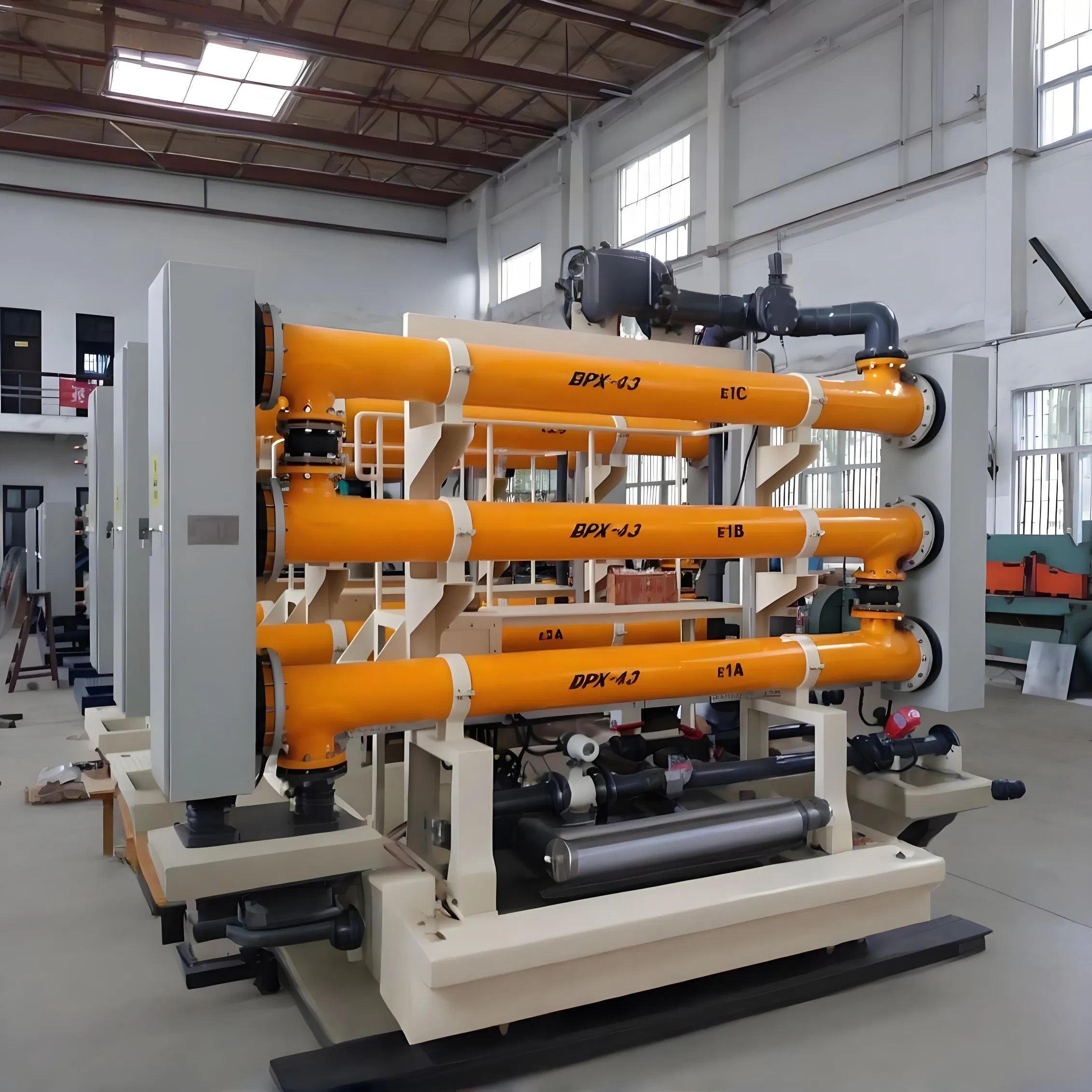

Seawater Electrolysis Chlorination System
The LHB-90 Seawater Electrolysis Chlorination Complete System is a high-performance, industrial-grade disinfection solution. Engineered for efficient and stable chlorine production via seawater electrolysis, this system integrates advanced electrochemical technology, precision manufacturing, and intelligent design to meet the rigorous disinfection and biological fouling control needs of large-scale industrial scenarios.
With a focus on reliability, efficiency, and ease of use, the system features electrodes treated through multi-step precision processes, a skid-mounted integrated structure, and seamless compatibility with existing control systems. It has been widely applied in international projects, demonstrating exceptional adaptability to harsh industrial environments and proven project execution capabilities on a global scale.
📋 Core Specifications
Category Details
Model Number BSE-90
Rated Voltage 380V
Core Performance • Available Chlorine Production: 90KG/H
• Available Chlorine Concentration: 1-1.5G/L
• Current Efficiency: > 80%
• DC Power Consumption: < 4kwh/kg.Cl2
• Cathode Lifetime: ≥ 5 years
Dimensions 5500mm (L) × 2000mm (W) × 2200mm (H)
Installation Skid-mounted integrated (on-site quick installation)
Material & Process Electrodes: Undergo mechanical correction, chemical etching, and multiple sintering/electroplating processes
⚙️ Core Process Flow

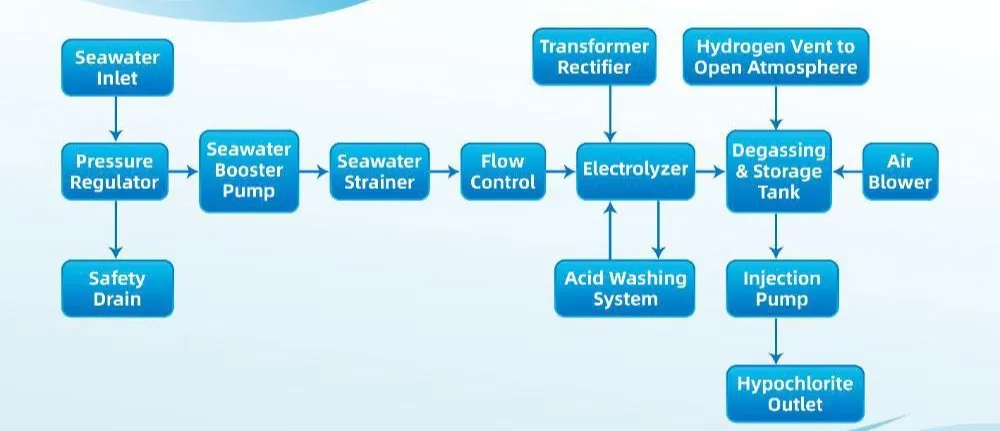

Process Flow Diagram
1. Seawater Inlet & Pressure Management
Raw seawater enters via the Seawater Inlet, then passes through the Pressure Regulator to stabilize inlet pressure.
2. Seawater Pretreatment
Pressurized seawater is filtered by the Seawater Strainer to remove impurities and protect downstream components.
3. Flow Control & Electrolysis
Pretreated seawater enters the Electrolyzer. The Transformer Rectifier supplies DC power to convert seawater chloride ions into hypochlorite. The Acid Washing System maintains performance via periodic cleaning.
4. Gas Separation & Storage
The mixture flows to the Degassing & Storage Tank where hydrogen is vented safely via the Hydrogen Vent.
5. Final Output
The purified hypochlorite solution is pumped out via the Injection Pump to the Hypochlorite Outlet for disinfection.
🏢 Application Scenarios
Specifically designed for large-scale industrial environments requiring high-efficiency disinfection and biological fouling control:

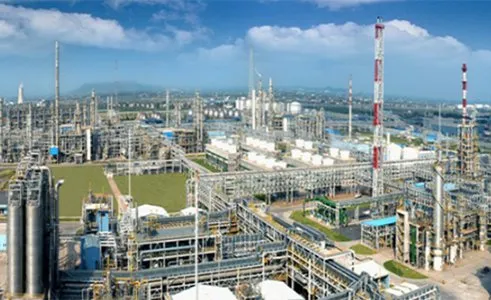

Petrochemical Parks

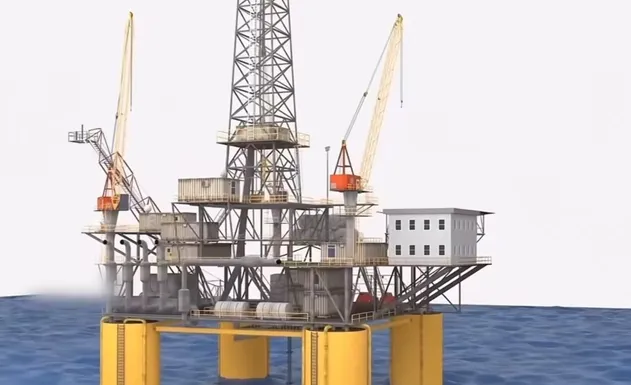

Offshore Platforms
Industrial Fields
Large Petrochemical Parks Disinfection of circulating cooling water systems and wastewater treatment units to prevent biological fouling.
Offshore Platforms Fouling control in underwater structures and oil/gas pipelines to avoid blockages caused by marine organisms.
Other Industrial Fields Suitable for coastal industrial zones and large-scale marine engineering projects requiring reliable chlorination.
🚀 Professional Expertise
Facility Image
With over 20 years of experience in chlorination system manufacturing, our facility is ISO certified (ISO 9001, ISO 14001, ISO 18001), specializing in advanced water treatment solutions. We offer customized package designs supported by AutoCAD and SolidWorks engineering, along with comprehensive after-sales services including on-site inspections, electrolyzer refurbishment, and capacity upgrades.
❓ Frequently Asked Questions
What is the chlorine production capacity of the BSE-90 system?
The BSE-90 system provides a rated available chlorine production of 90KG/H with a concentration range of 1-1.5G/L.
What is the expected lifespan of the system's cathode?
The cathode is designed for high durability with a lifetime of 5 years or more under standard operating conditions.
How energy-efficient is the seawater electrolysis process?
The system is highly efficient, with a current efficiency exceeding 80% and a DC power consumption of less than 4kwh/kg.Cl2.
Can this system be integrated into existing industrial control networks?
Yes, the system is designed for control compatibility and can be connected to a customer's existing control system for seamless data intercommunication.
Is the installation process complex for large industrial sites?
No, the system features a skid-mounted integrated structure which allows for quick and efficient on-site installation.
What quality certifications does the equipment meet?
The manufacturing and management processes are fully certified under ISO 9001, ISO 14001, and ISO 18001 global standards.
