Basic Specifications
Certification
ISO9001, ISO14001, ISO45001
Disinfection
Ozone, Electrolysis
Experience
30+ Years in Water Treatment

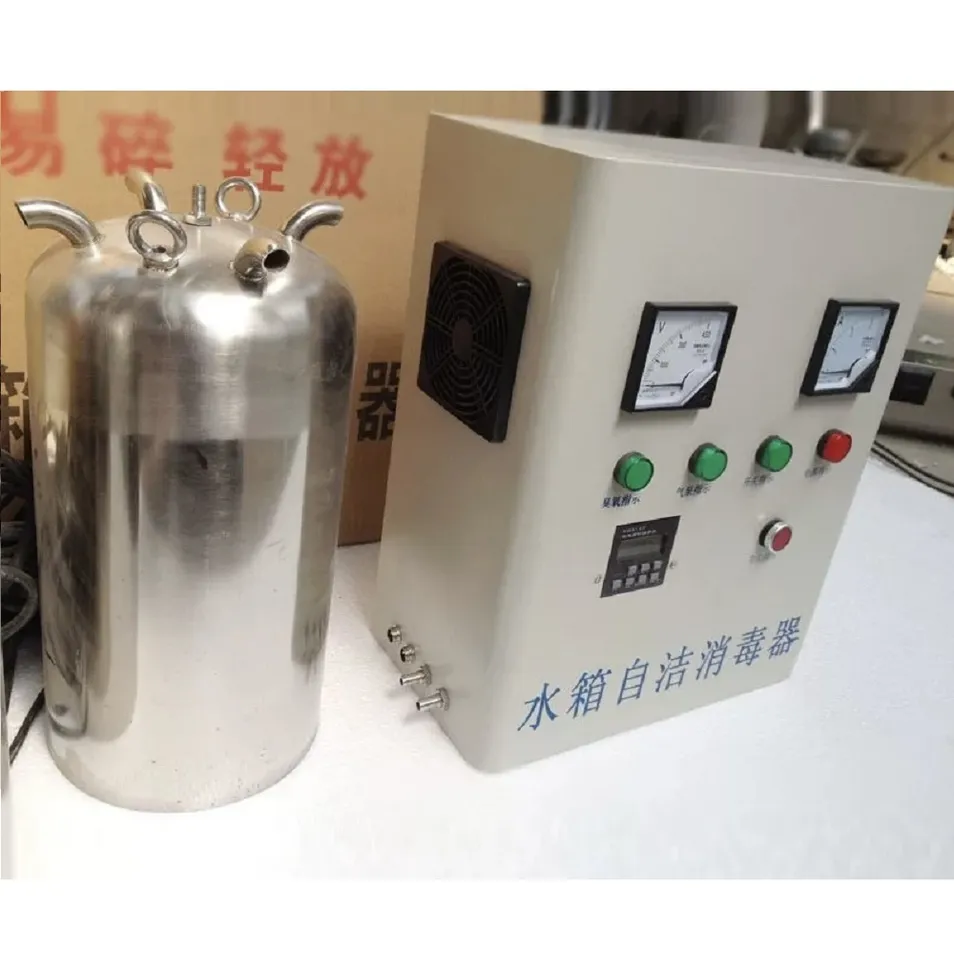

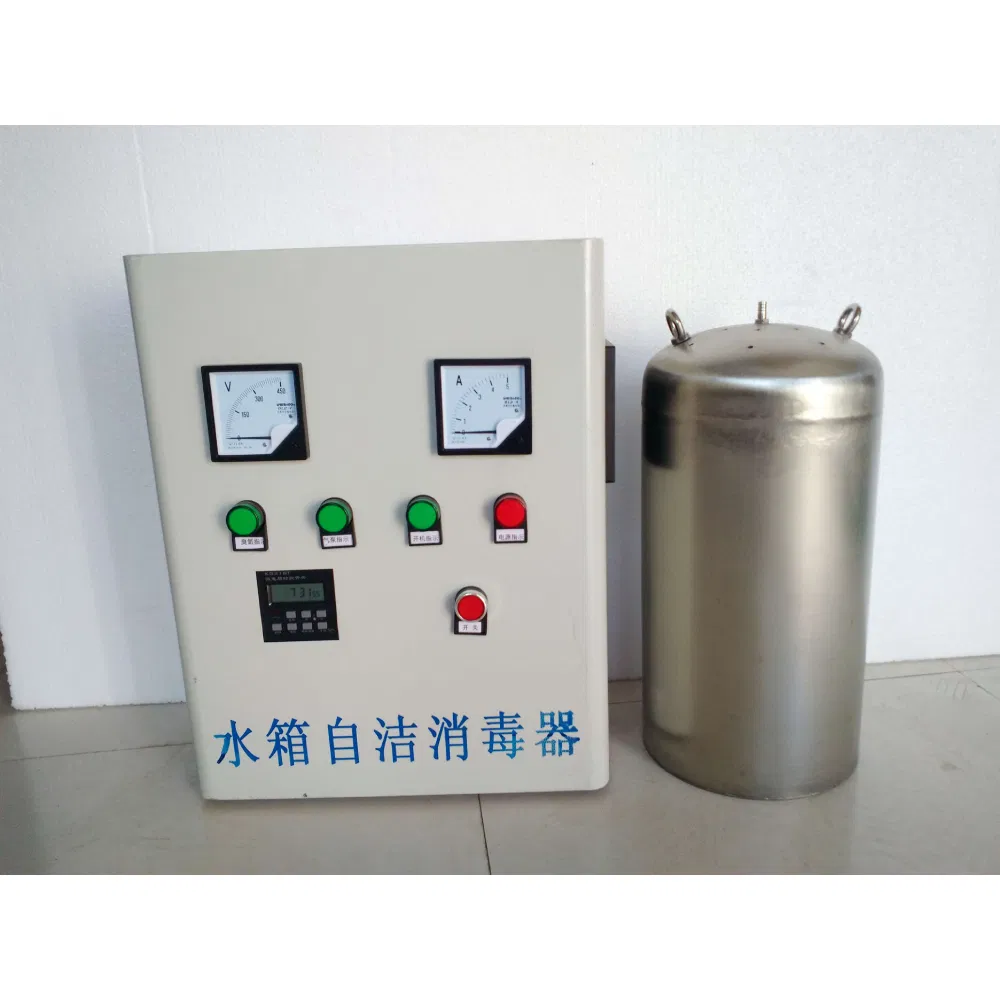

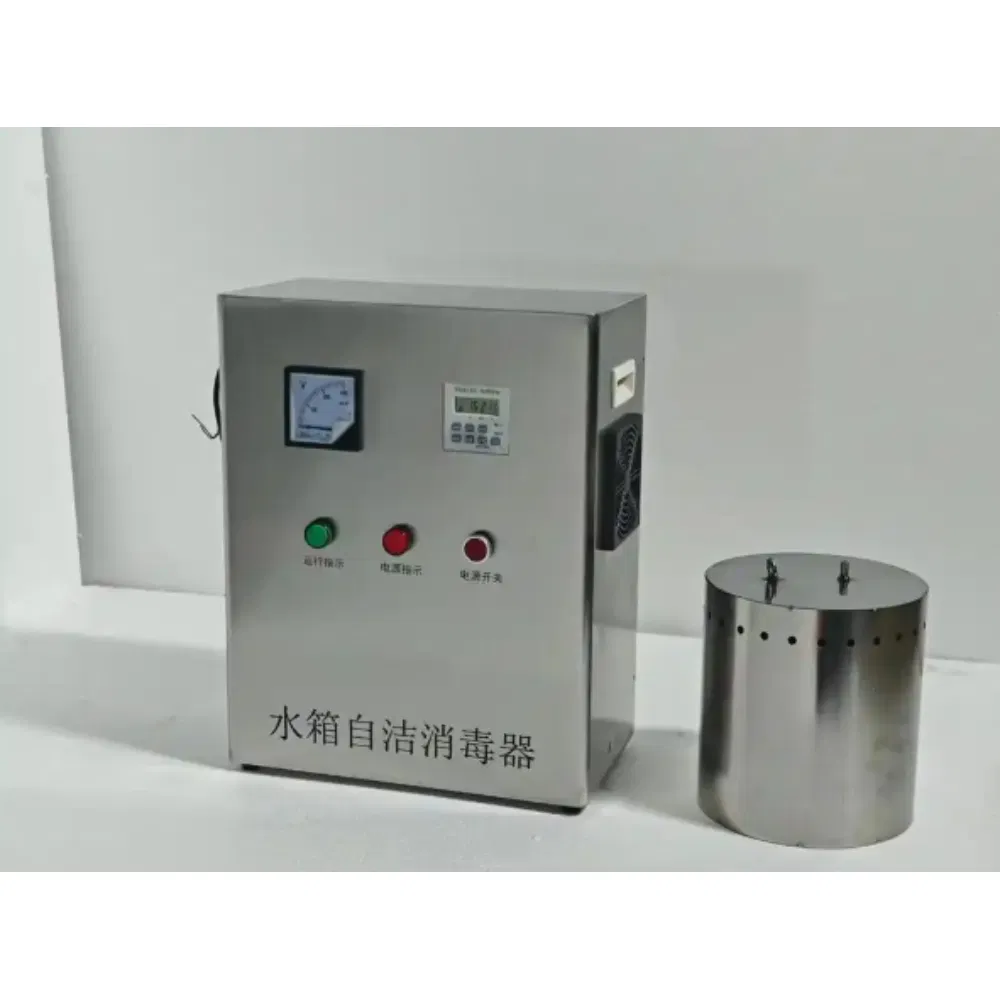

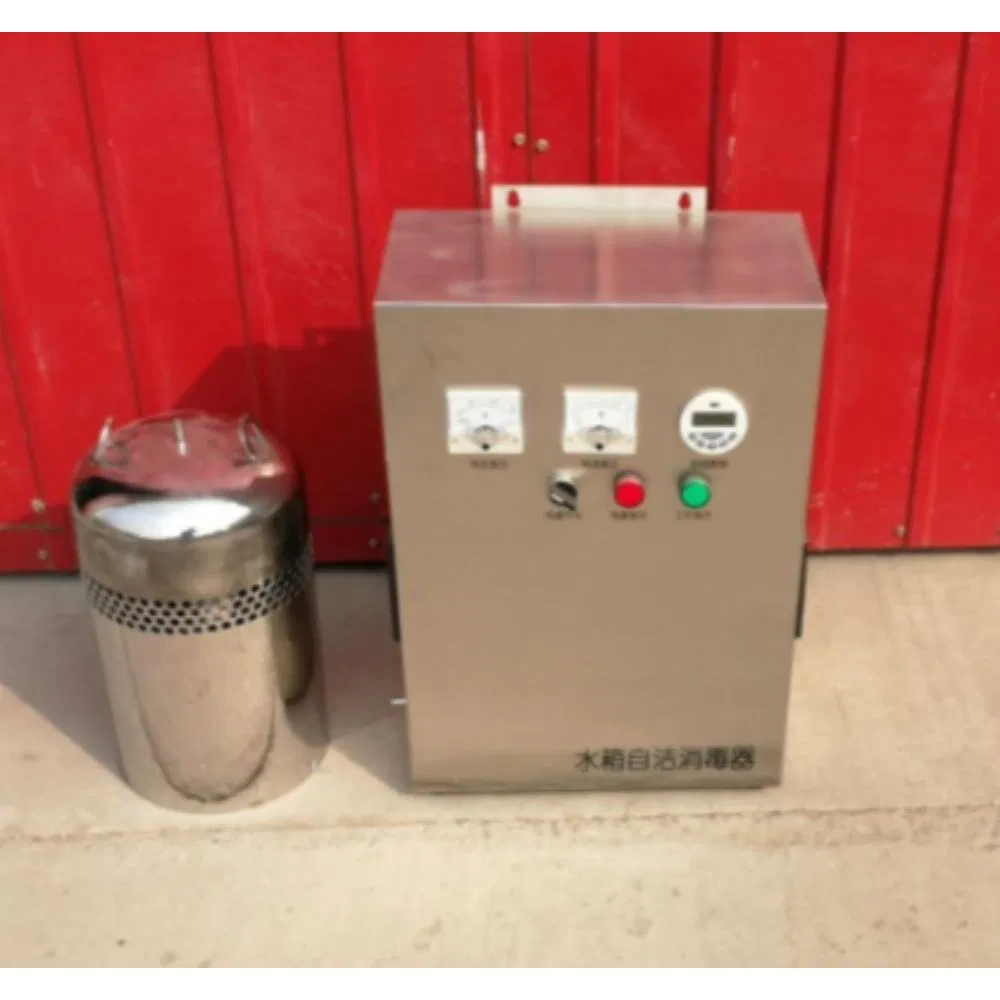

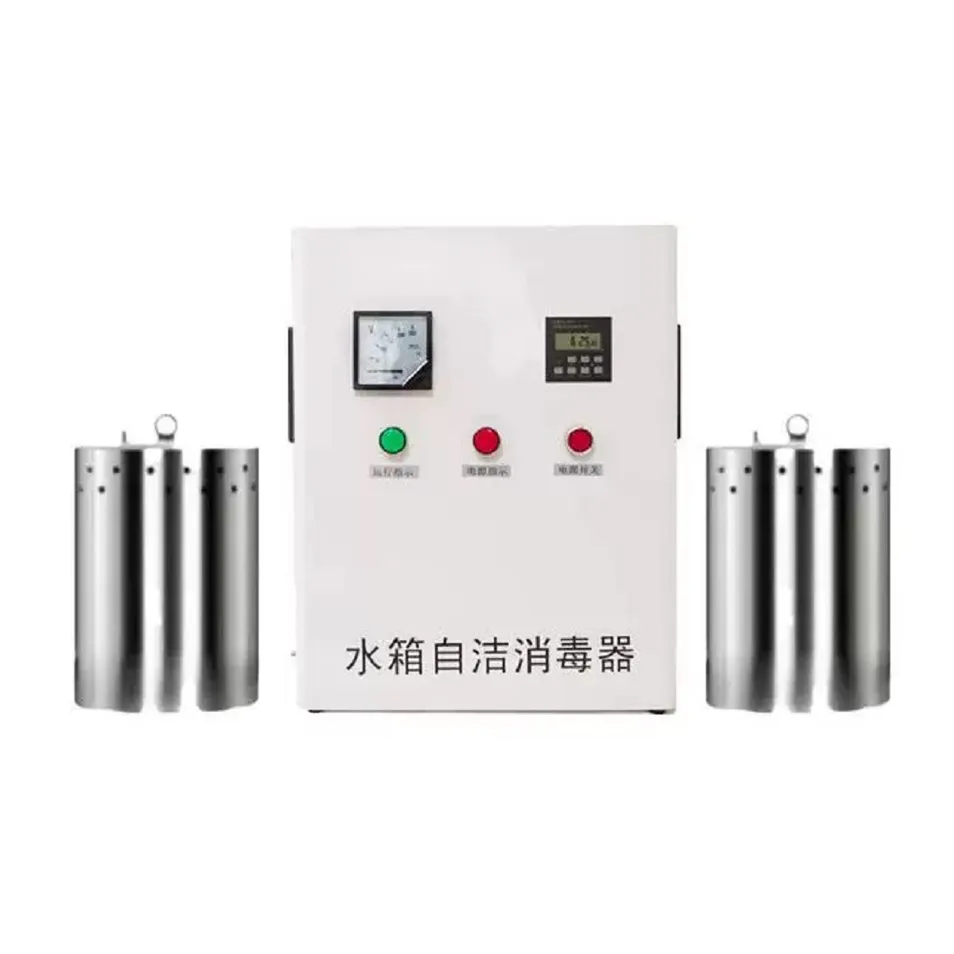

Tank Sterilizer (Internal Type)
The tank sterilizer employs micro-electrolysis technology to generate disinfection factors in water, effectively eliminating all microorganisms and breaking down residual toxic components without adding any chemicals. Simultaneously, it incorporates electrode activation technology to thoroughly disinfect the water while utilizing a high-frequency oscillating electromagnetic field to break large water molecule clusters into smaller clusters or individual molecules.
Working Principle:
The tank sterilizer utilizes electrochemical reactions to generate oxidizing substances from chloride ions and water molecules dissolved in water. These oxidizing substances treat all water within the tank/reservoir and its inner walls through diffusion and circulation, destroying bacteria and algal microbial cells both in the water and on the surfaces, thereby achieving disinfection and algal eradication.
Key Features & Benefits
Rapid sterilization and algae eradication with broad-spectrum effectiveness.
Powerful disinfection capability: Sterilization rate >99.8%, Algae eradication rate >99.9%.
Disinfects not only water but also tank interiors, reservoir walls, and pipeline systems.
Provides sustained disinfection effect, overcoming limitations of UV and chemical dosing.
Non-toxic, harmless, and pollution-free operation.
Easy installation and low maintenance requirements.
Technical Specifications
| Model |
Ozone Production |
Total Power |
Applicable Tank Volume |
| Domestic Water |
Fire Water |
| ECH-SN-1 | 10g/h | 300W | 60m³ | 120m³ |
| ECH-SN-2 | 20g/h | 600W | 120m³ | 240m³ |
| ECH-SN-3 | 30g/h | 900W | 180m³ | 360m³ |
| ECH-SN-4 | 40g/h | 1200W | 240m³ | 480m³ |

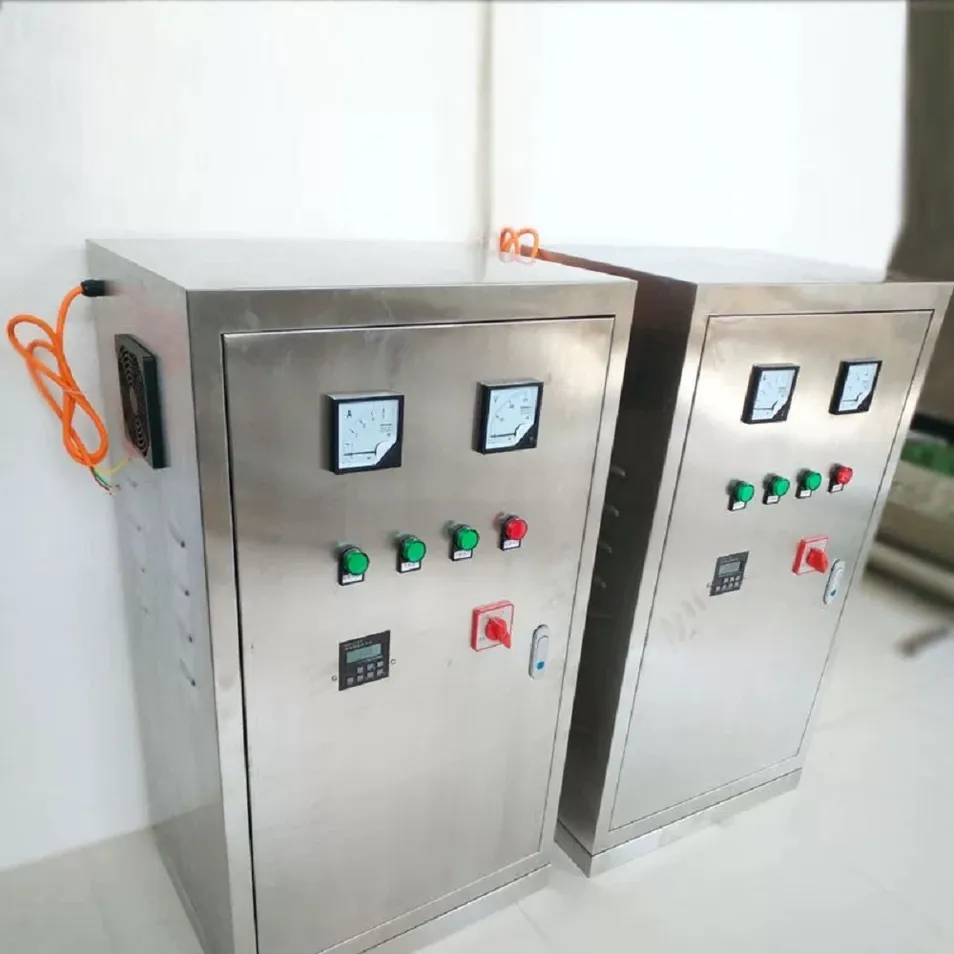

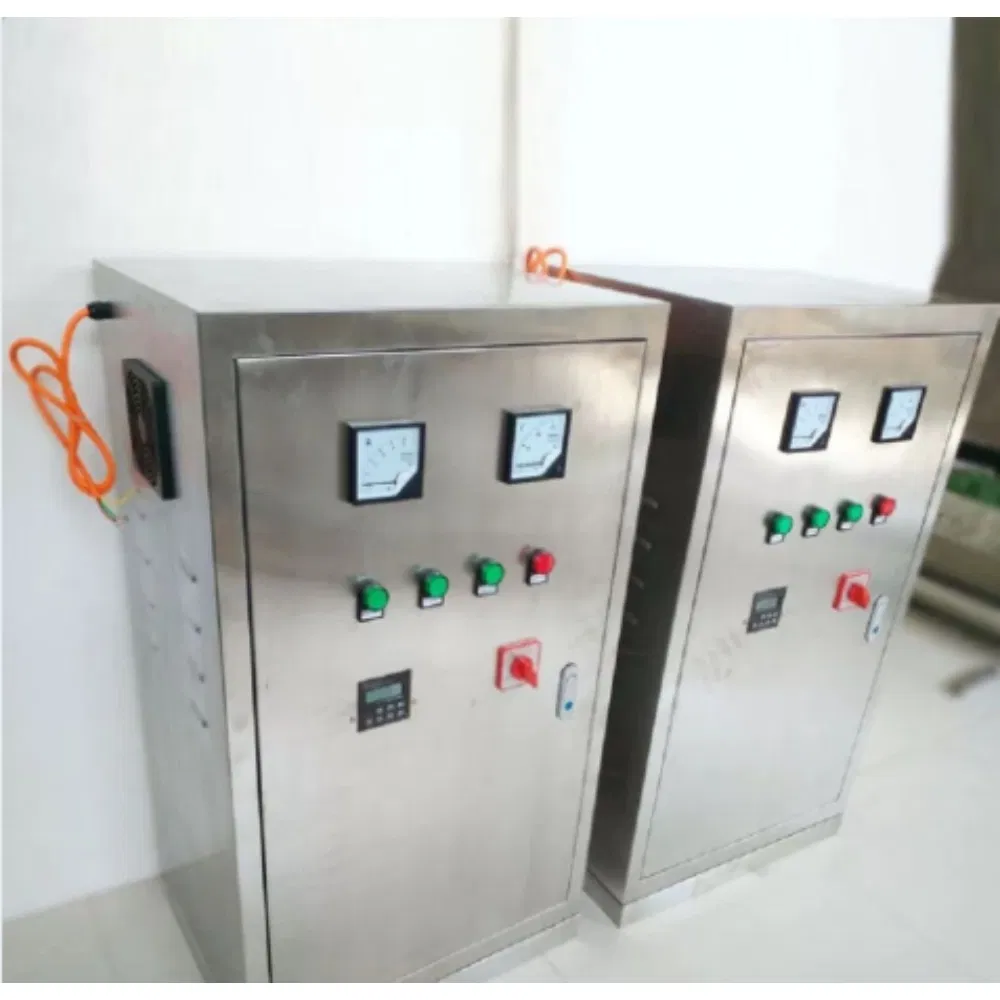

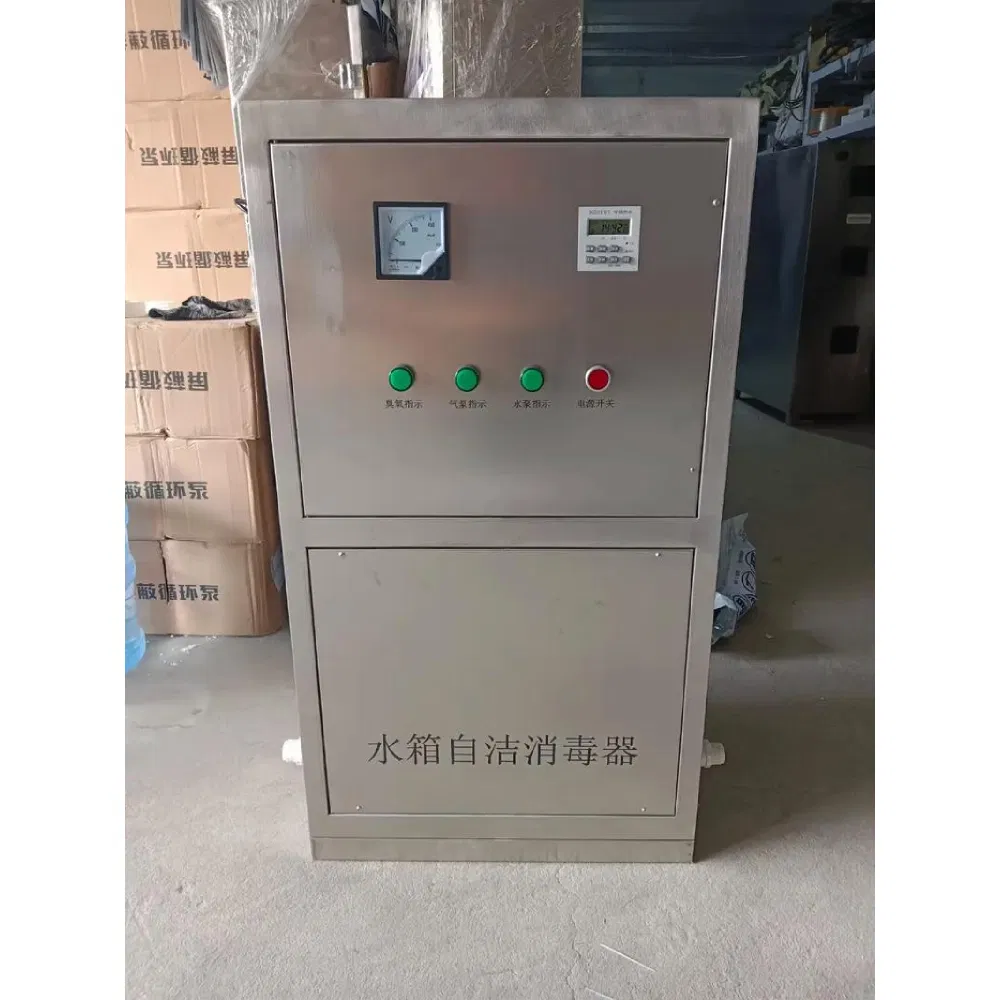

Product & Facility Display
Expertise & Quality
Our company is a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. We hold multiple qualifications including safety production permits and certifications for quality, environment, and health management systems. We are recognized as a National Torch High-tech Enterprise and a listed company in the water treatment industry.
As of 2024, our team holds a total of 126 authorized patents, including 60 invention patents and 38 software copyrights, covering special chemicals, process methods, and advanced equipment for various water treatment operations.
Frequently Asked Questions
Q1: What are the primary application scenarios for tank sterilizers?
A1: They are ideal for domestic water tanks in residential buildings, hotels, and schools; secondary water supply systems in hospitals and malls; and storage facilities like fire water tanks and swimming pools.
Q2: What parameters are required to get an accurate quote?
A2: Buyers need to provide the effective dimensions of the water tank/cistern and the reserved area available for equipment installation.
Q3: Does the system support customization?
A3: Yes, we offer full OEM/ODM customization services to meet specific industrial or project requirements.
Q4: Is this method more effective than UV sterilization?
A4: Unlike UV which only treats water passing the lamp, our system generates oxidizing factors that circulate throughout the entire tank, disinfecting both the water and the inner walls.
Q5: Are any chemicals required for operation?
A5: No, the system uses micro-electrolysis of existing water molecules and ions to create disinfection factors, making it a chemical-free and eco-friendly solution.
Q6: What is the maintenance cycle for this equipment?
A6: The equipment is designed for high durability with SS304/SS316 components. Routine inspections are minimal due to the automated electrochemical process.
