Ultrasonic Sensor Car Parking Guidance System

Customization:	Available
Warranty:	12 Months
Viewing Distance:	20 Meters

Technical Specifications

Model NO.HQ-UD10AB

Detection Distance1-4 M (Adjustable)

Status DisplayRed, Green, Blue Supported

Debugging ModeInfrared & PC Debugging

CommunicationPower Line Carrier Bus

InstallationClip Installation (Φ 22)

TypeParking Camera / Sensor

Production Capacity200 Sets/ Month

Product Overview

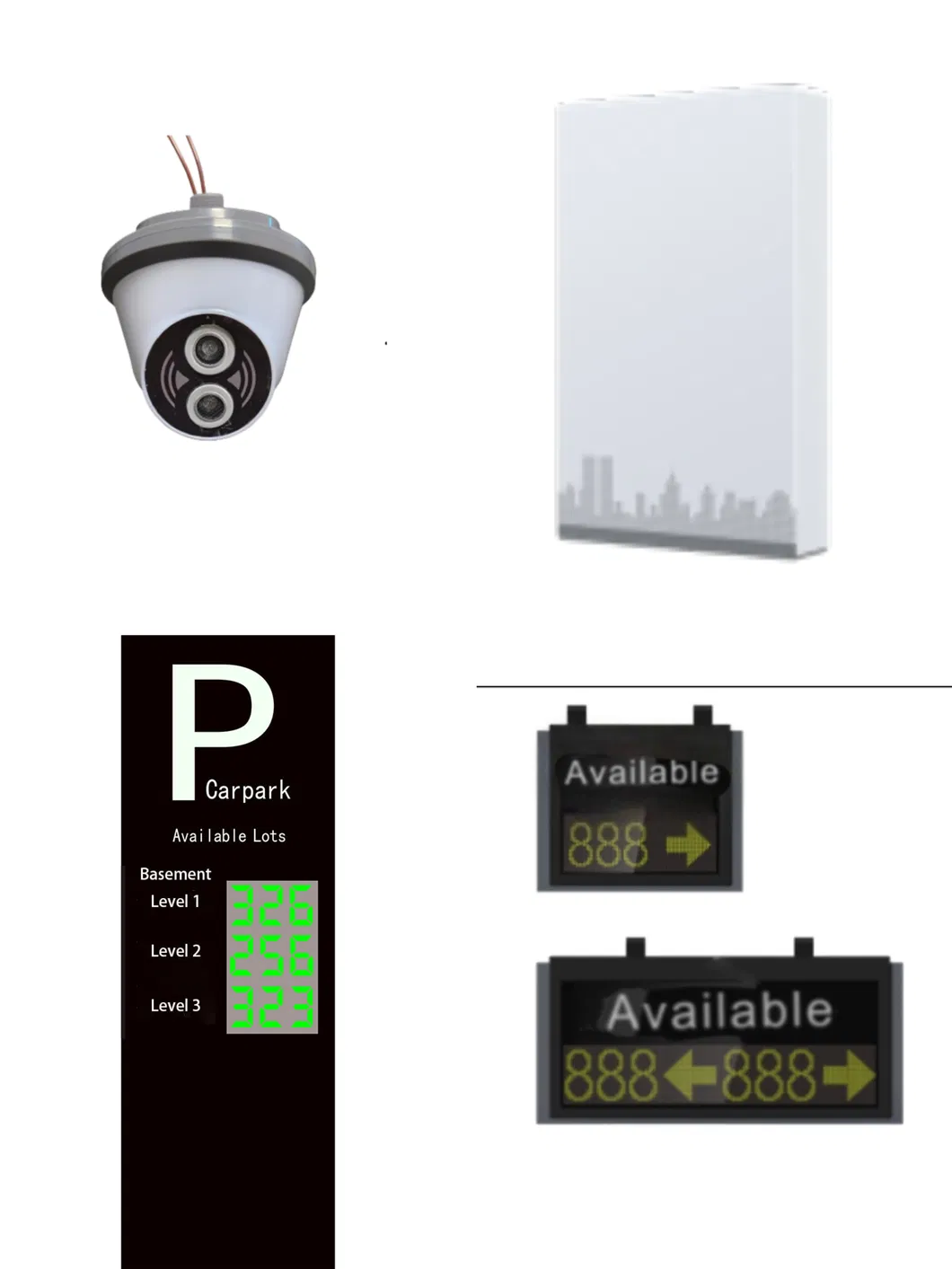

The complete system includes:

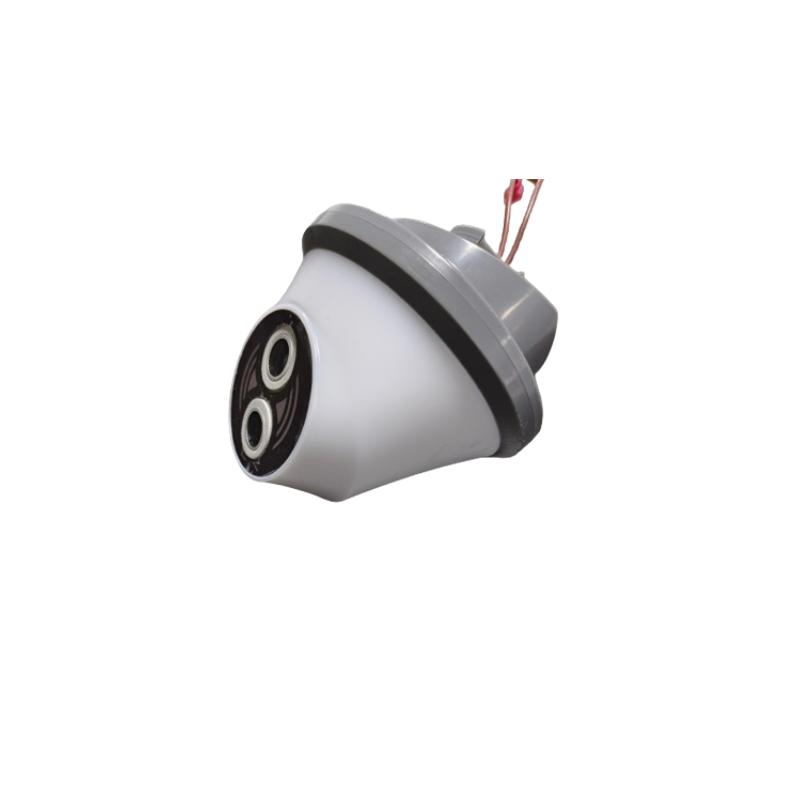

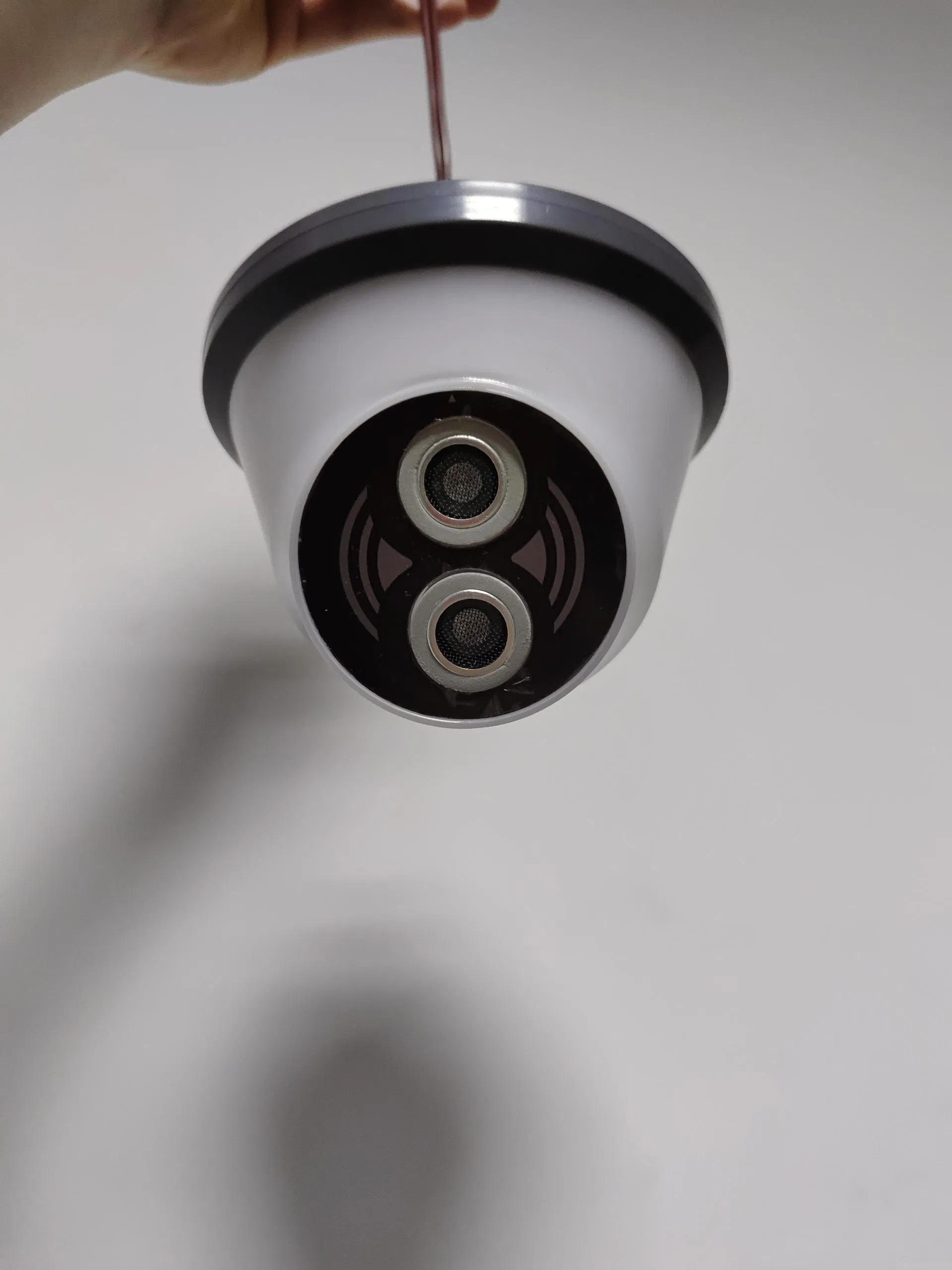

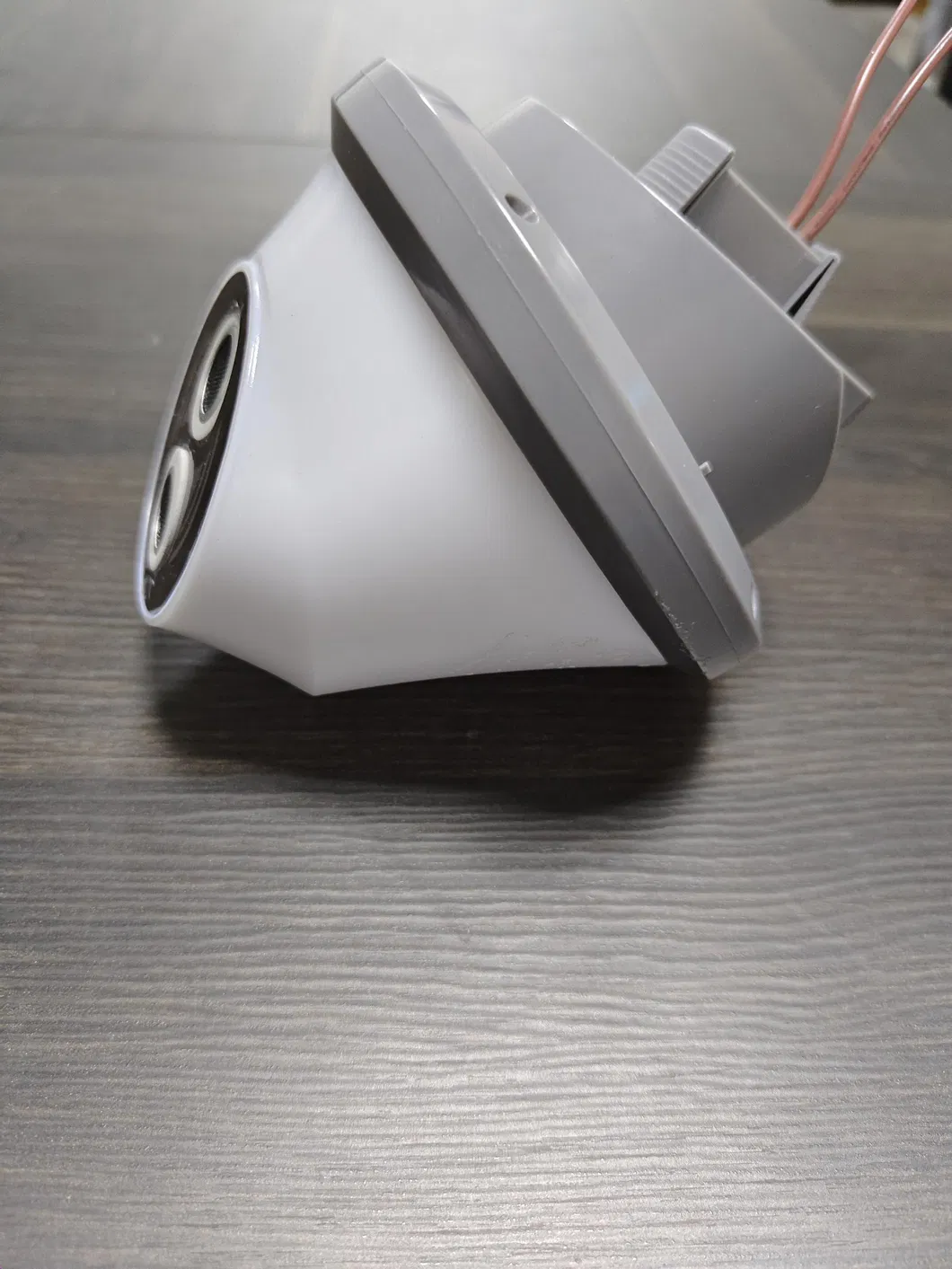

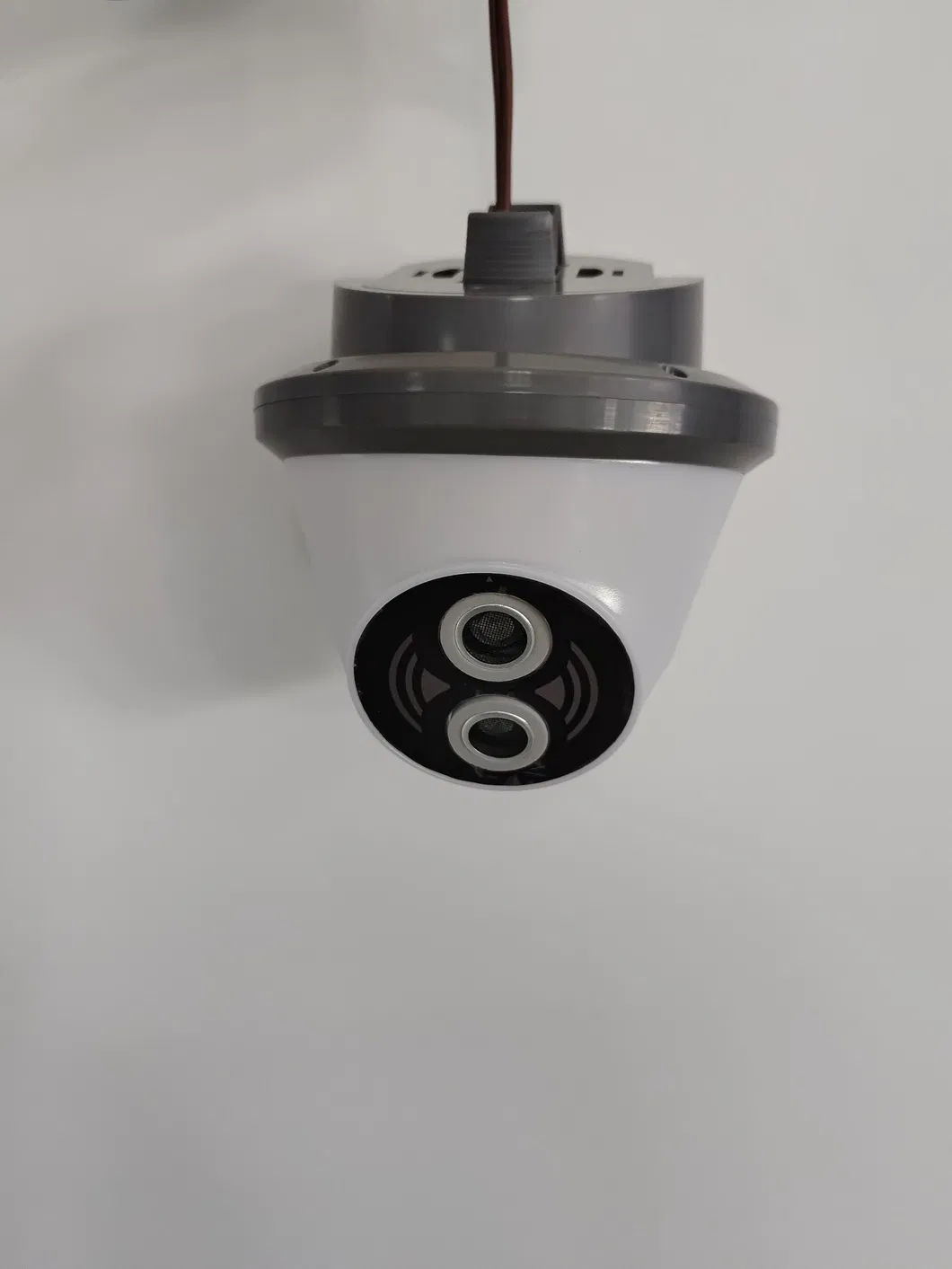

Ultrasonic detector
System Gateway

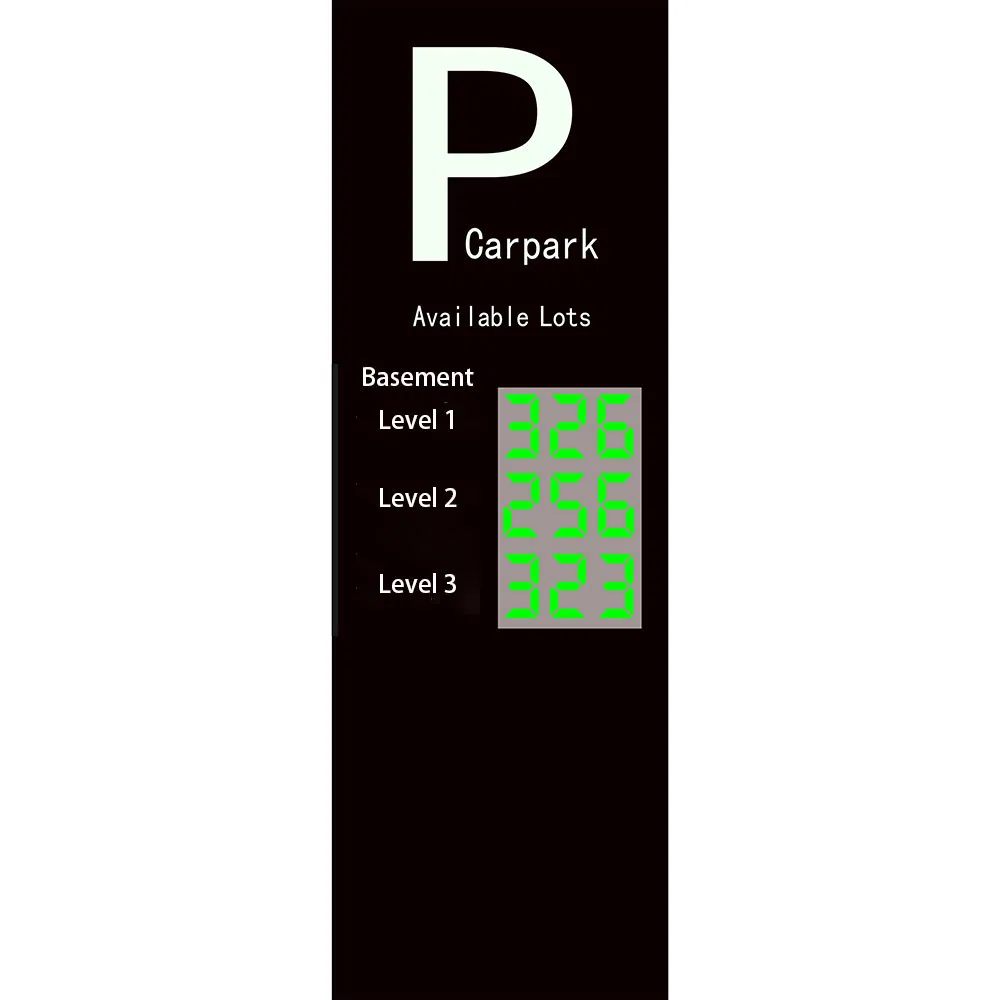

Indoor guidance screens

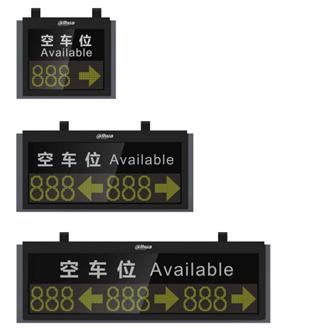

Outdoor available spaces display
Management software and PC server

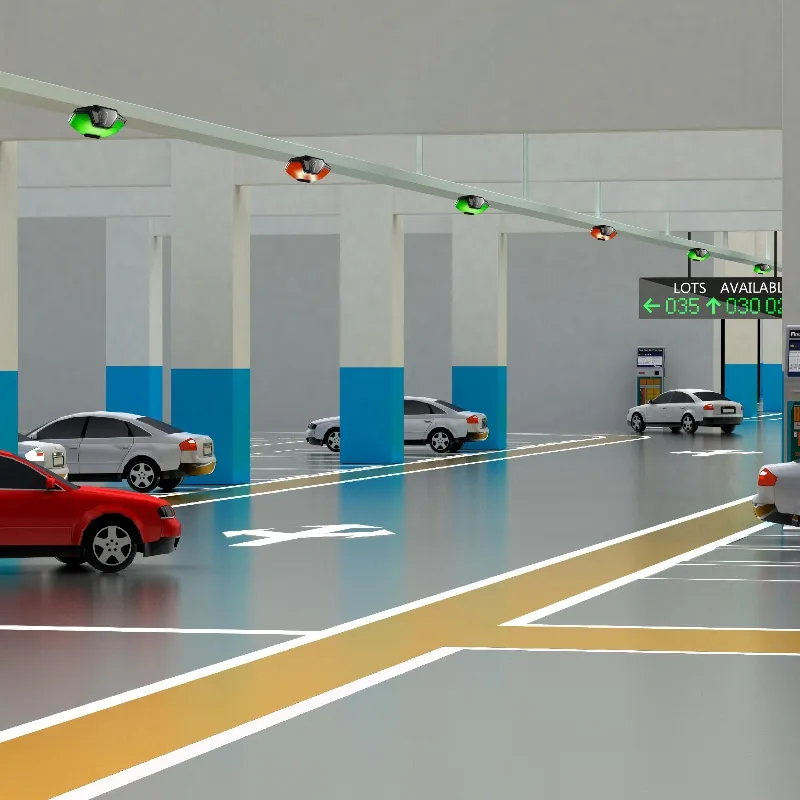

System Workflow:

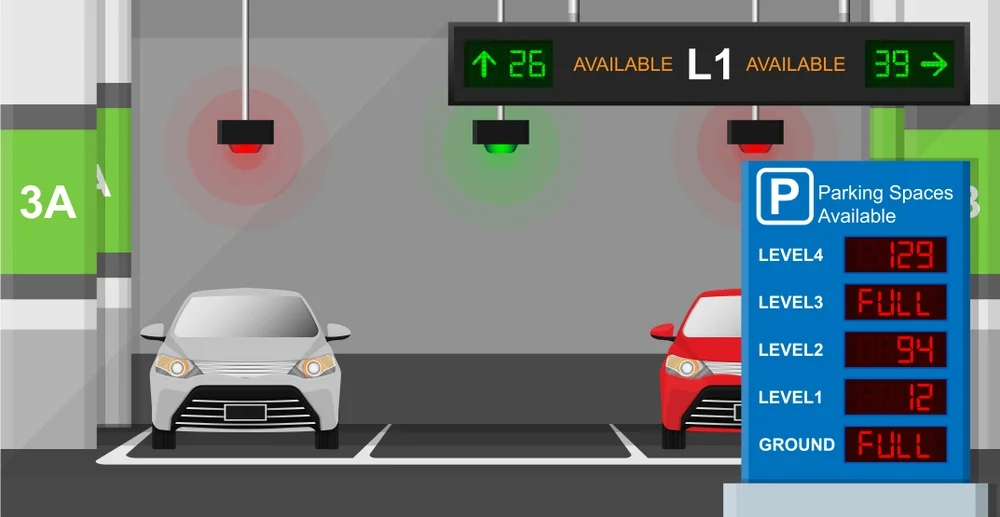

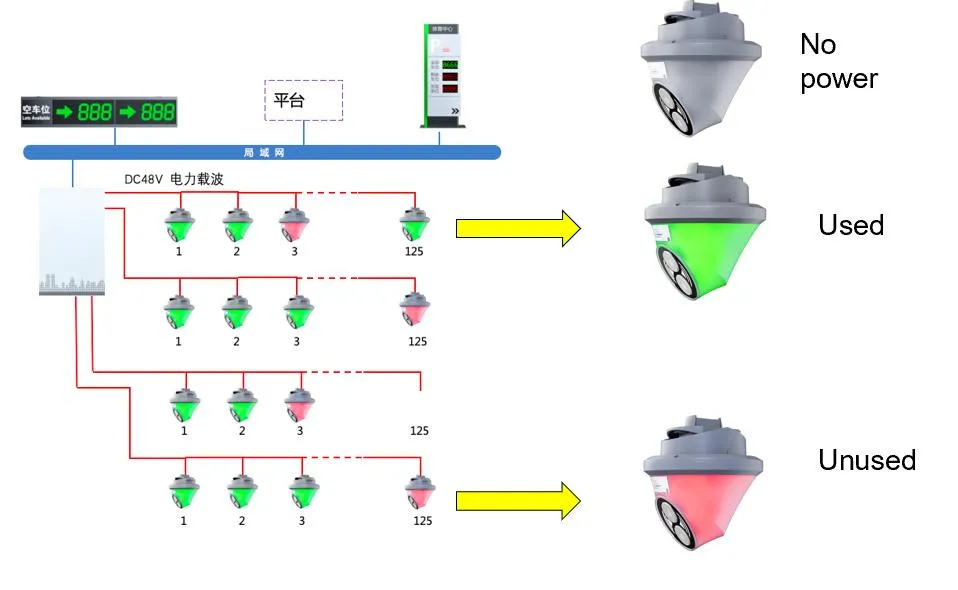

The ultrasonic detector is installed above each parking space to detect real-time status. It transmits data (occupancy, entry time, space number) to the gateway via electric power signals. The gateway processes this and reports to the PC Server for centralized management and display on guidance screens.

Detailed Parameters

Parameter	Specification
Viewing Distance	20 meters
Detection Distance	1-4 m (Configurable)
Power Supply	DC48V Hand-in-hand supply
Communication Method	Power Line Carrier Bus
Adjustable Angle	Horizontal/Vertical ±15 degrees (Damping Design)
Indicator Colors	Red, Green, Blue

Core Characteristics:

Dual independent transmit/receive ultrasonic probes for high accuracy.
Integrated design of sensors and indicator lights.
Wire-free T-type connector for simple bus connection.
Built-in infrared for easy parameter configuration.

System Working Principle

Ultrasonic Detection Logic:

Automatic check every 4 seconds when space is empty.
High-frequency detection (500ms) when a vehicle is entering.
Status light changes immediately after 5 consecutive car signals.
Continuous monitoring of vehicle exit status post-occupancy.

Product Gallery

Packaging & Shipping Info

Bare Device Size	116.4mm x 129.6mm (D x H)
Package Size	120mm x 120mm x 135mm
Bare Weight	175g ±15g
Total Product Weight	230g ±15g
