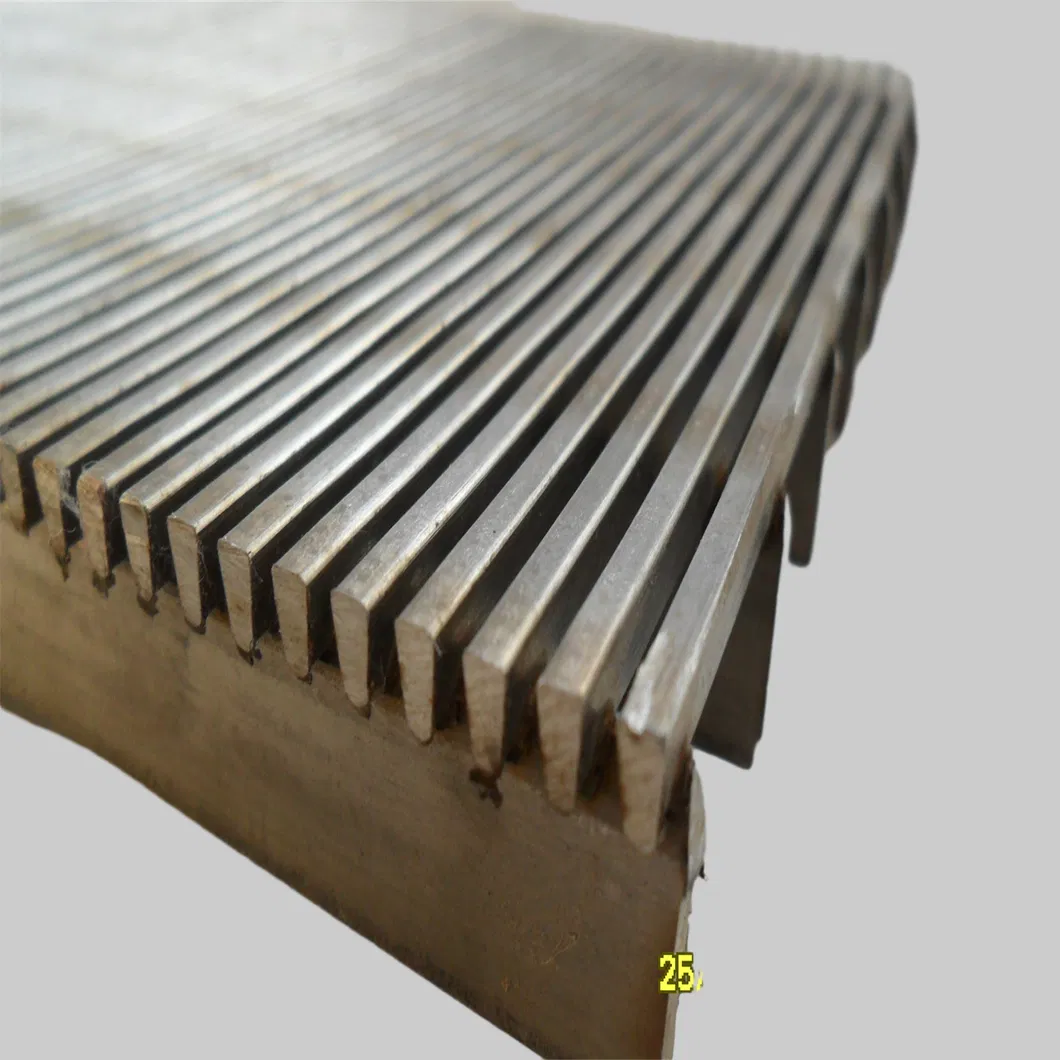

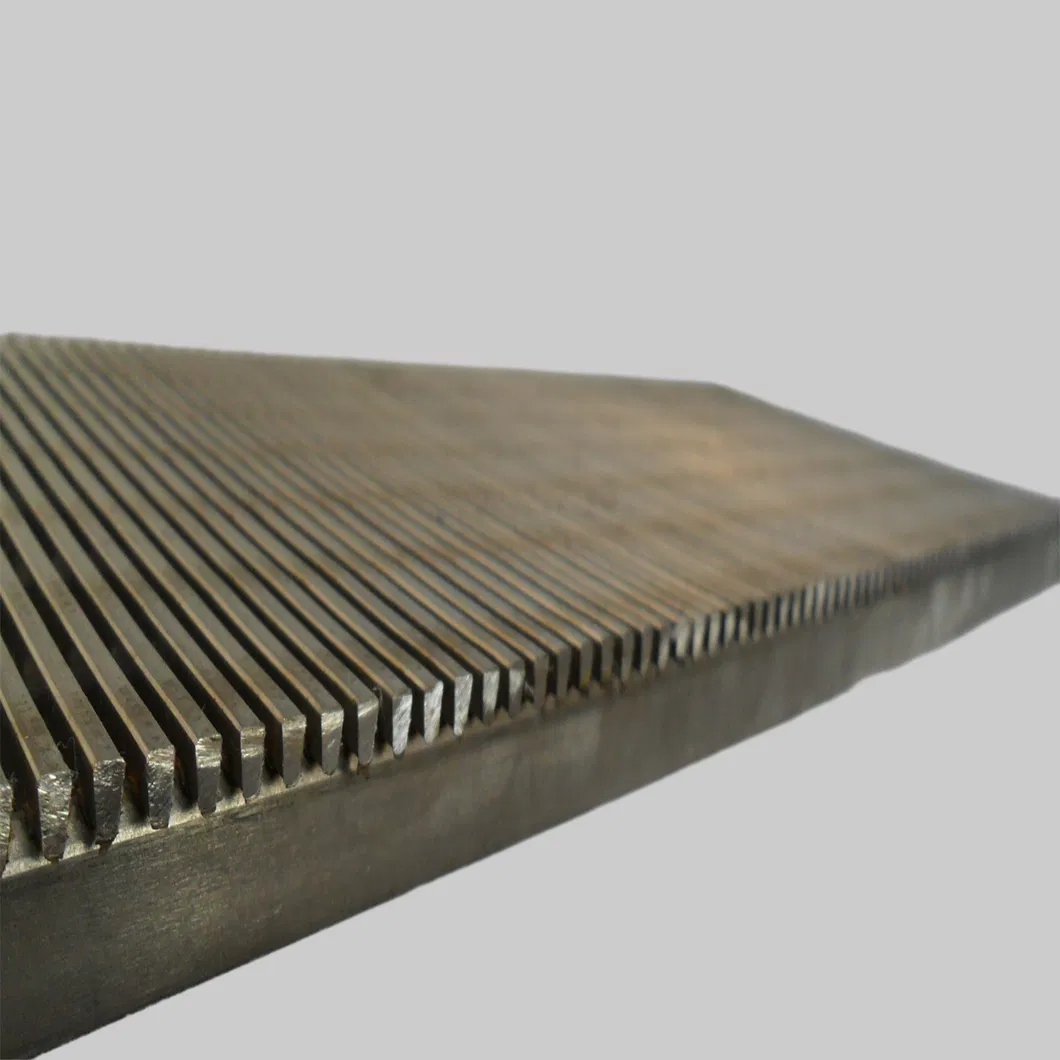

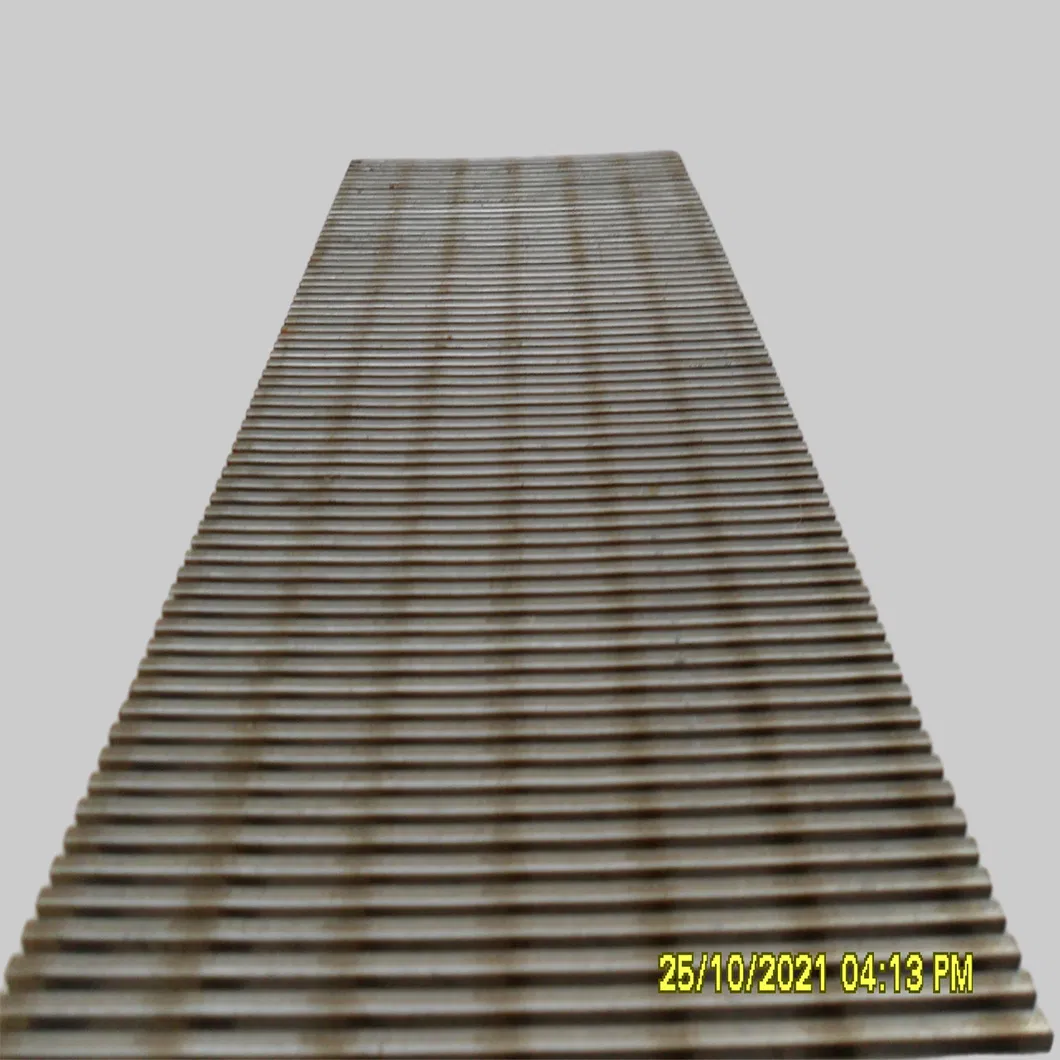

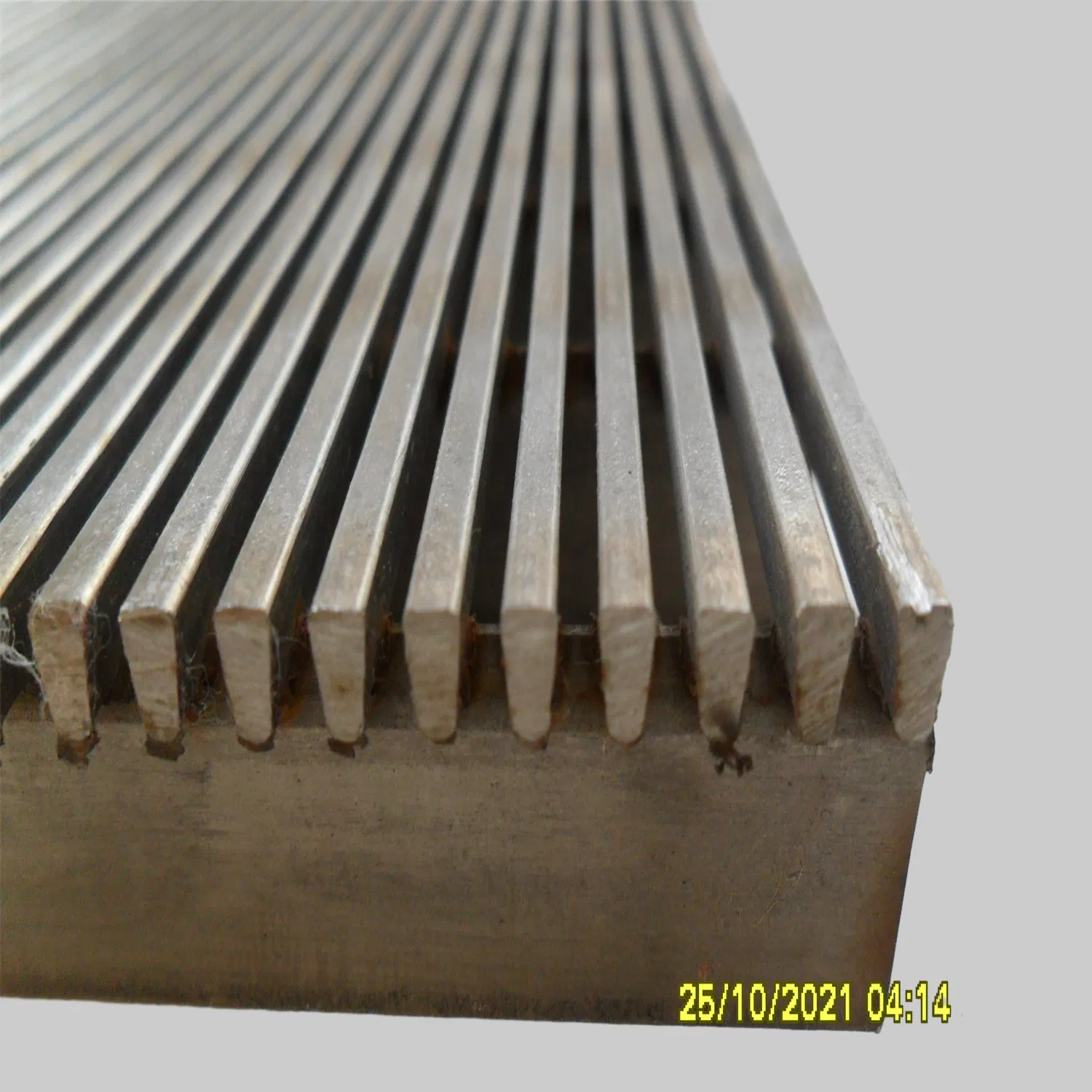

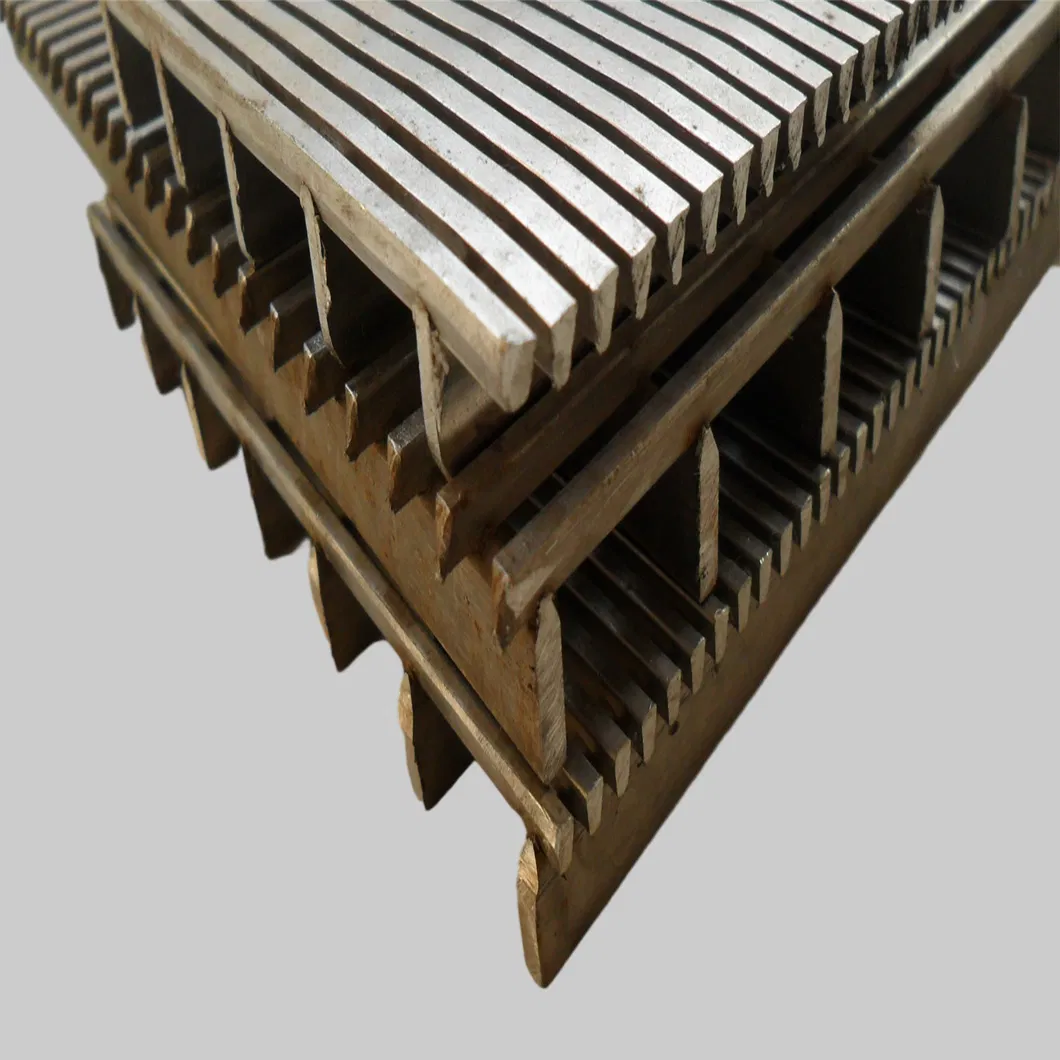

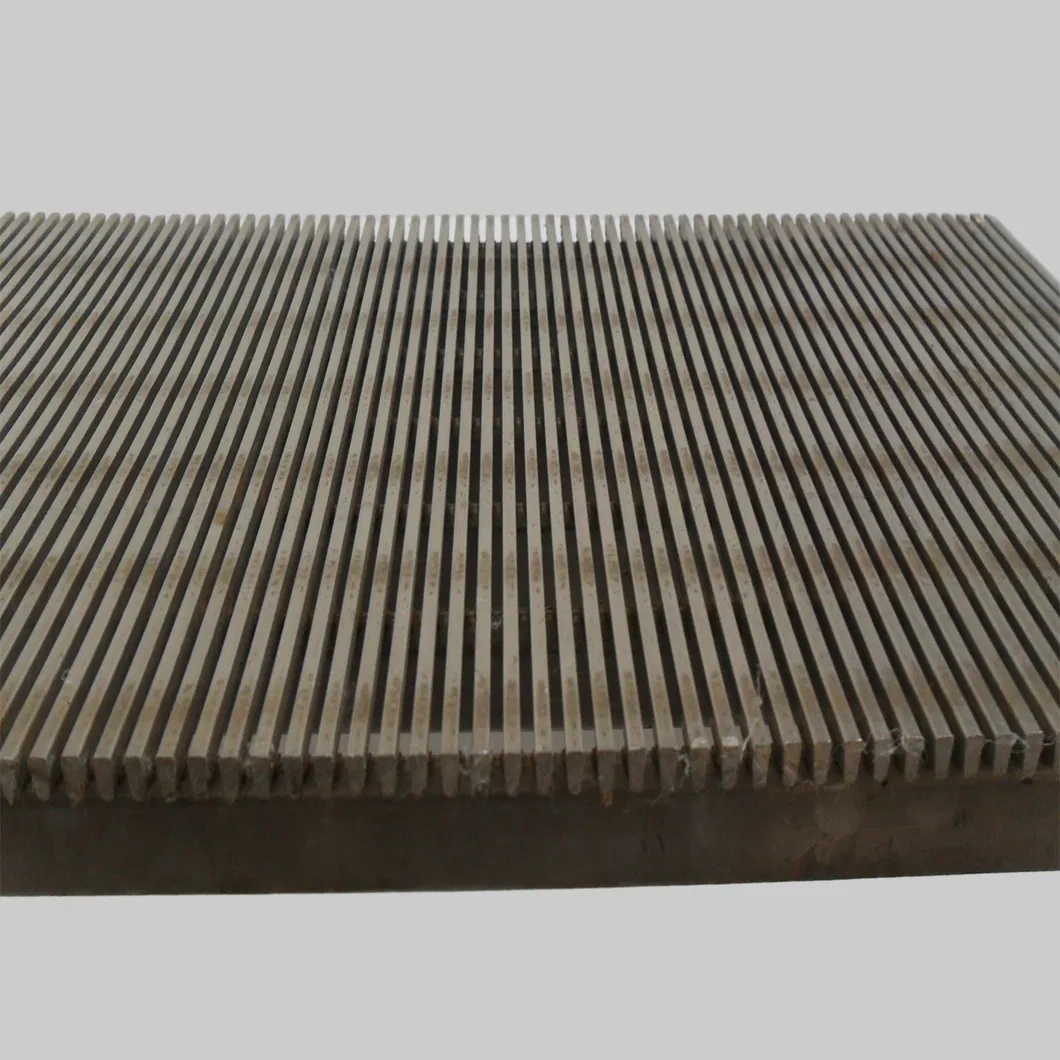

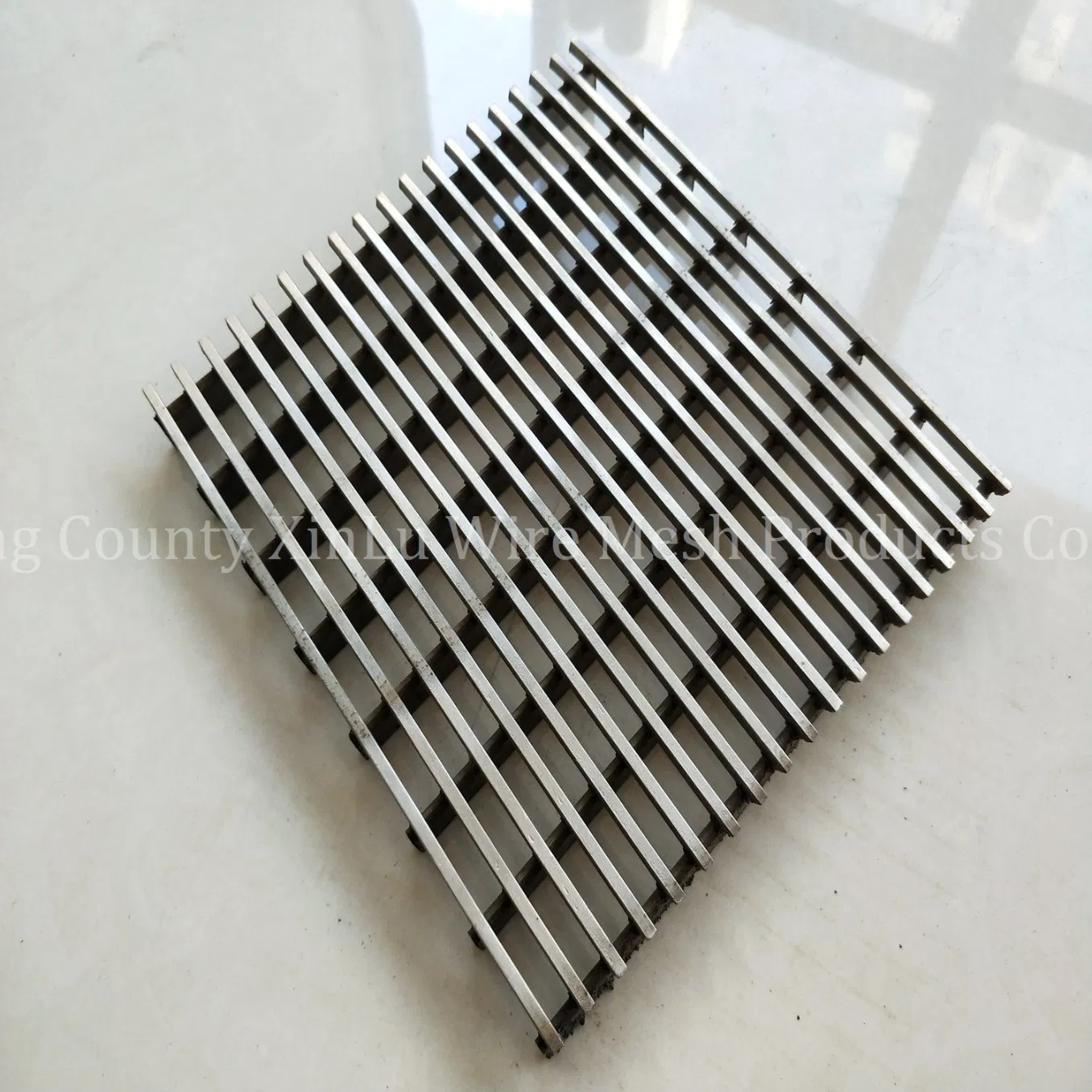

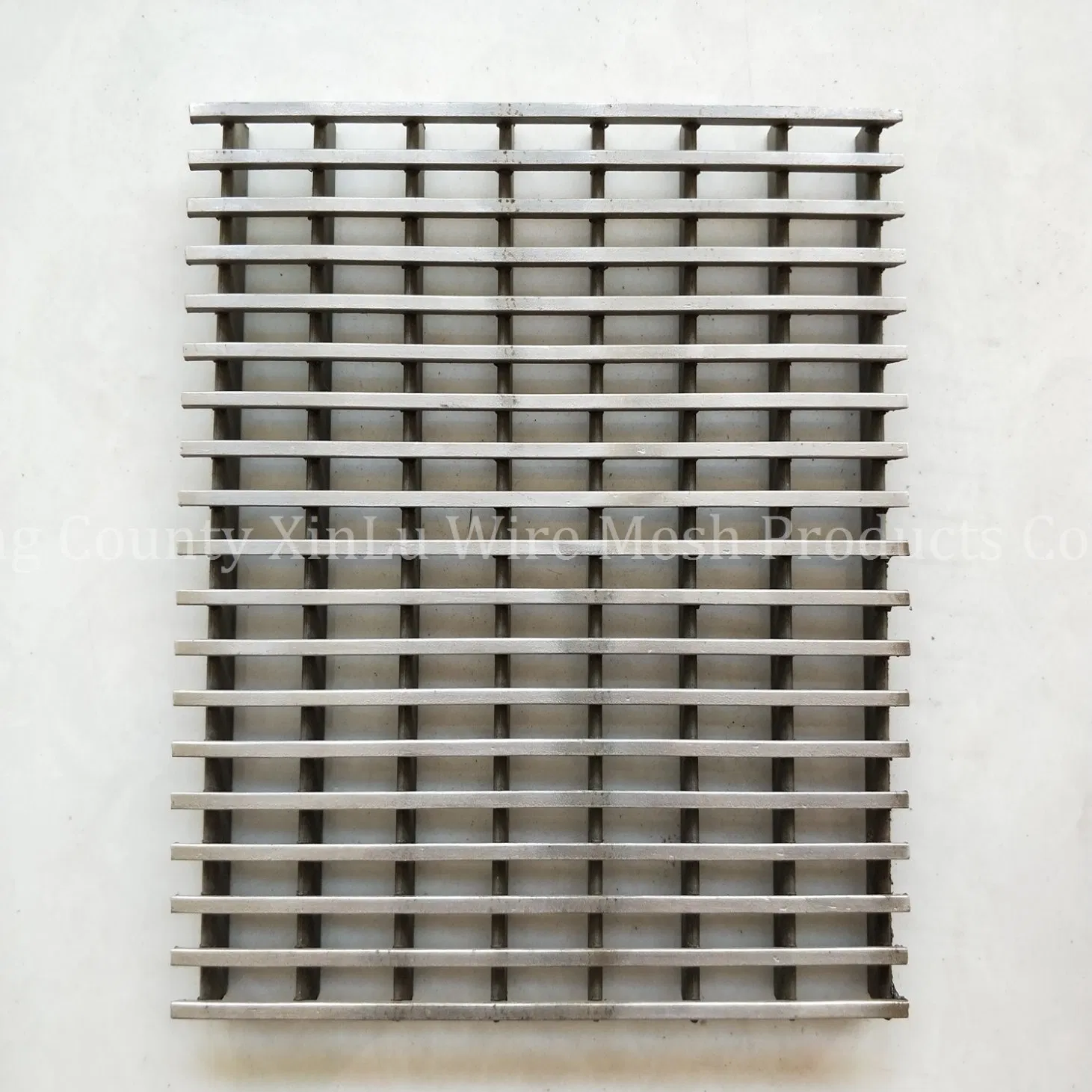

Reinforced wedge wire screens are flat panels of pressure welded screens, forged in frames and prepared for assembly. These screens are designed to meet the demands of dynamically working segments in vibrating sifters. They provide proper strengthening depending on screen load and come with a frame that guarantees proper fixing of the screen to the sifter's frame, ultimately extending its lifespan.
For segments working statically, such as bottoms and beds in tanks or storage and sewage reservoirs, special strengthening is not required.
| Profile Wire | Wedge shape, Width(mm): 0.75 1.00 1.50; Height(mm): 1.50 2.00 3.00 |
| Diameter / Length | Diameter: 25.40mm; Length: 1000mm (Up to 1500mm) |
| Material | Stainless steel 304, 316, Monel, Hastelloy, Inconel, Nickel, etc. |
| Cleaning Method | Back flush, easy to clean |
| Min Slot Size | 25 micron |
| Microns | 10 | 25 | 50 | 100 | 200 | 400 | 800 | 1500 | 3000 |
| Mesh | 1500 | 650 | 300 | 150 | 80 | 40 | 20 | 10 | 5 |
| MM | 0.01 | 0.025 | 0.05 | 0.1 | 0.2 | 0.4 | 0.8 | 1.5 | 3.0 |
Wedge screens are widely used in industries such as mining, coal, petroleum, fertilizer, grain, salt, and environmental protection. They are essential for sieving liquids, powders, and other materials, and are critical for pharmaceutical purification and drilling fluid management.

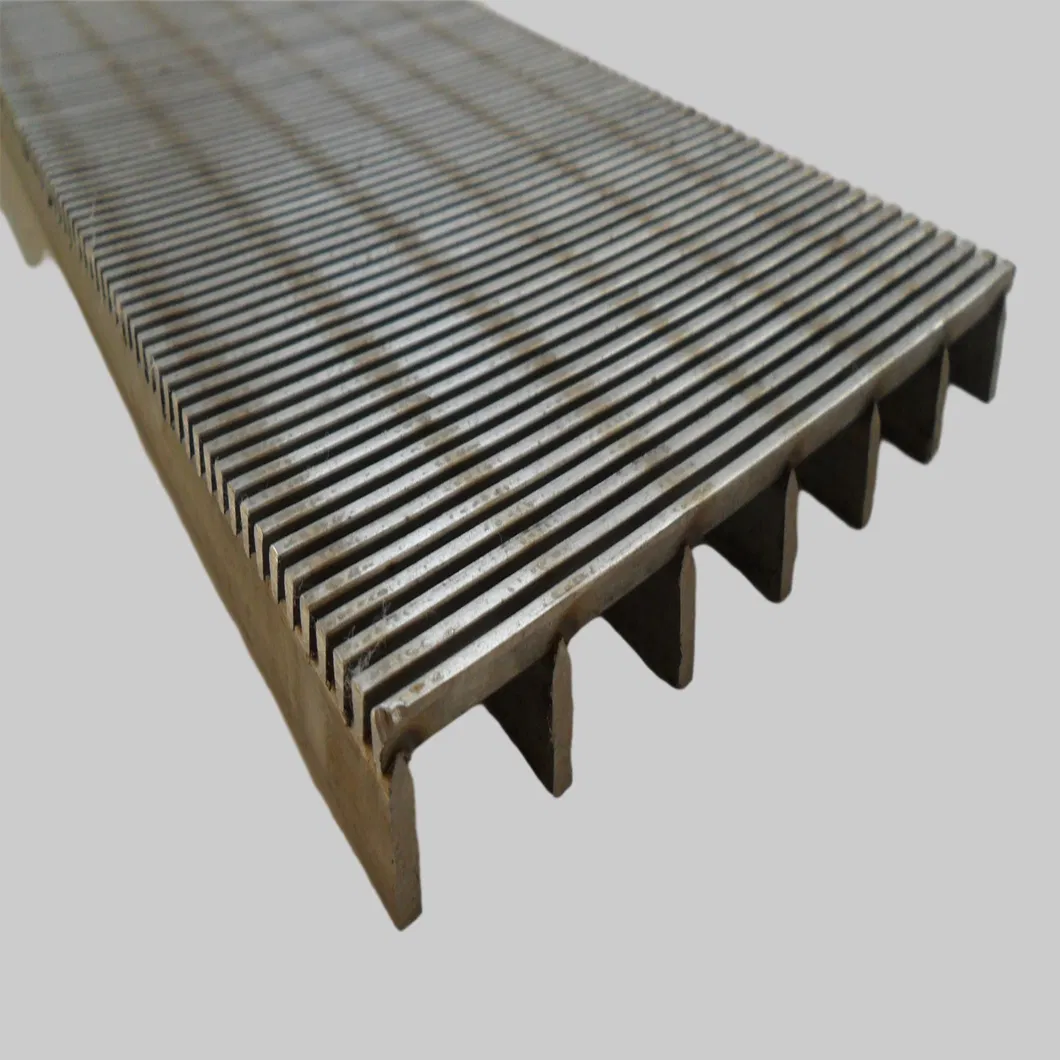

Reinforced screens are specifically forged in frames to handle dynamic loads in vibrating sifters, providing superior strength and a longer lifespan compared to static screens.

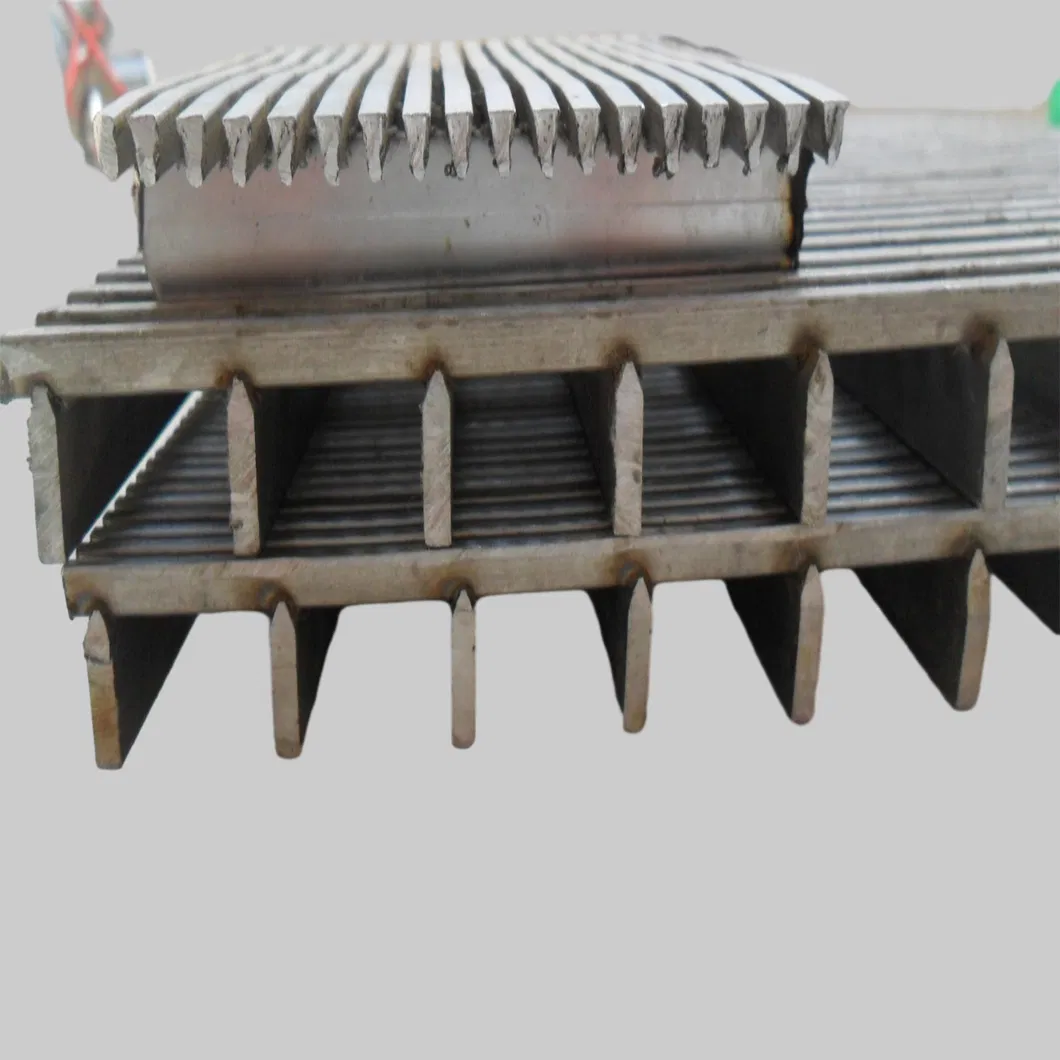

The V-shaped opening minimizes contact area, reducing the risk of clogging and ensuring efficient liquid-solid separation with a high open area.
We offer various high-grade materials including Stainless Steel 304, 316, Monel, Hastelloy, and Nickel to suit different corrosive environments.
The minimum slot size can reach 25 microns, making it suitable for high-precision industrial filtration requirements.
Yes, the smooth surface and wedge-shaped slots allow for easy cleaning through back-flushing, maintaining high operational efficiency.

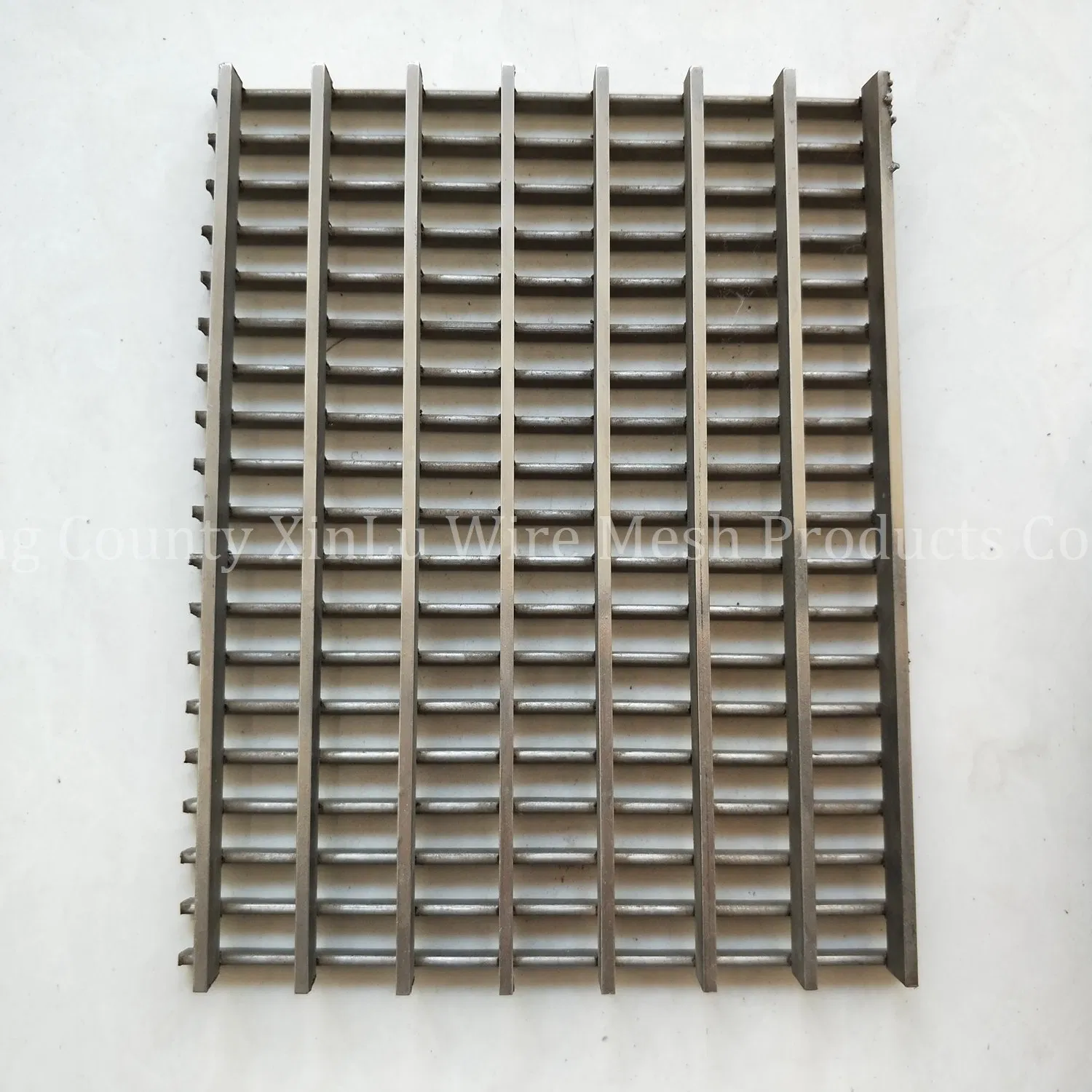

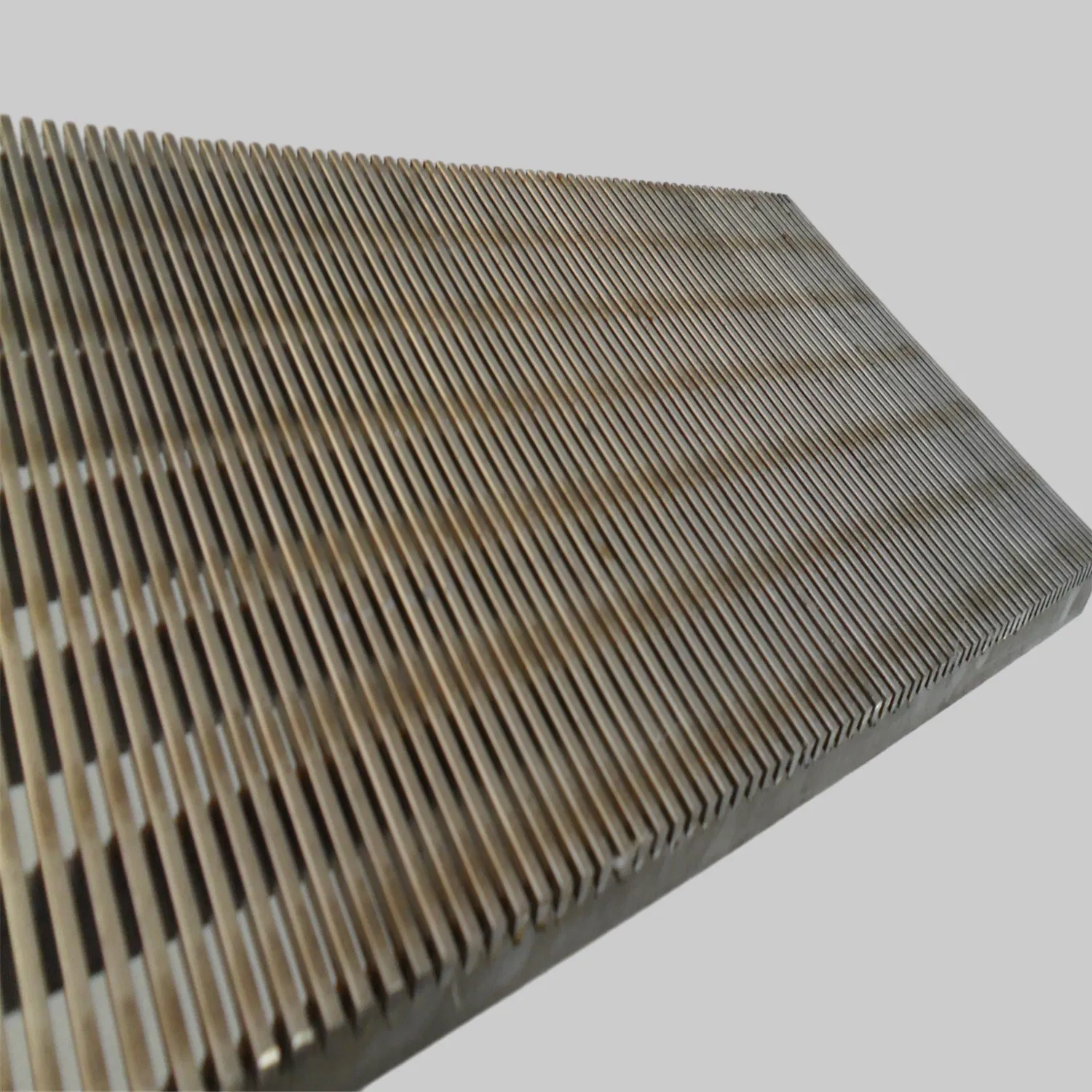

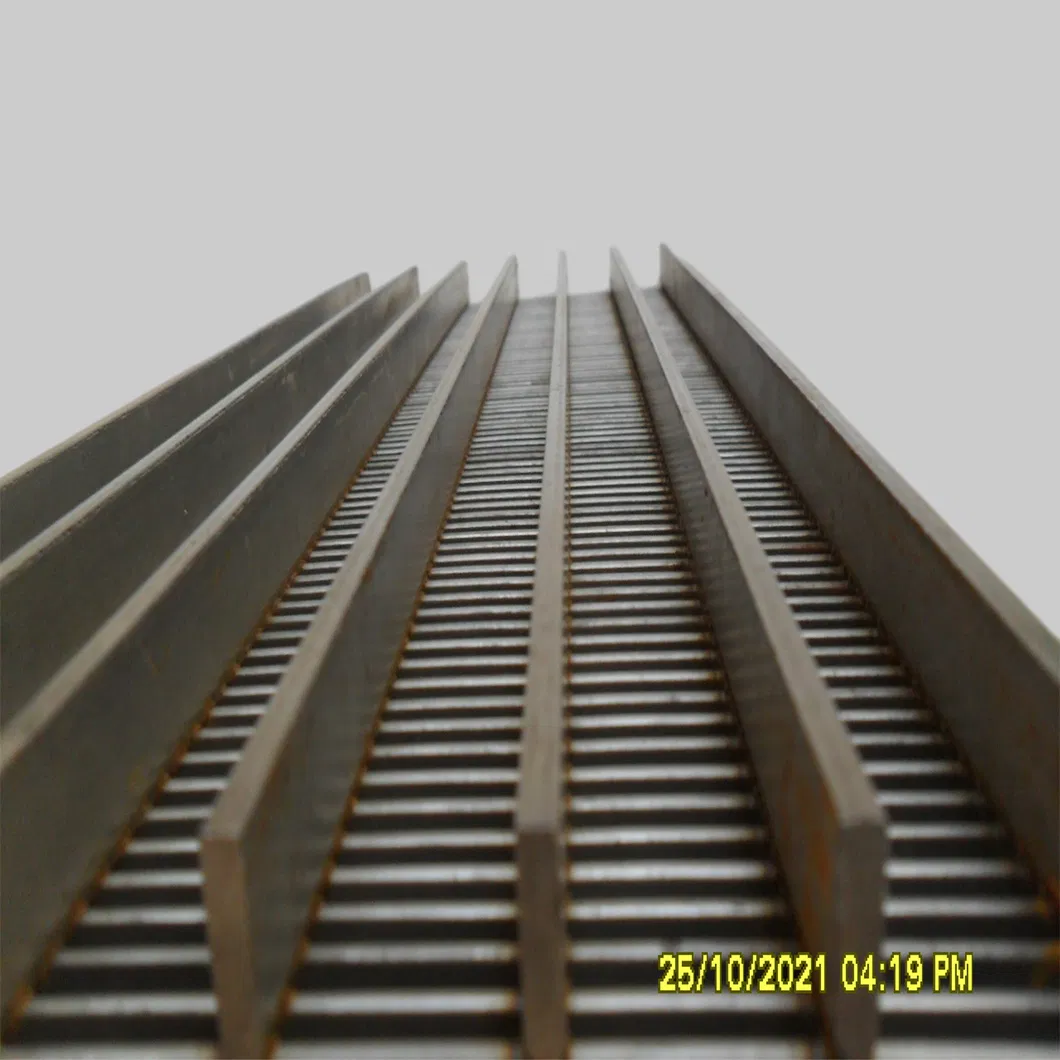

Absolutely. Support bars come in various sizes (e.g., 2.0x10, 3.0x10) and can be arranged to meet specific compressive strength needs.
