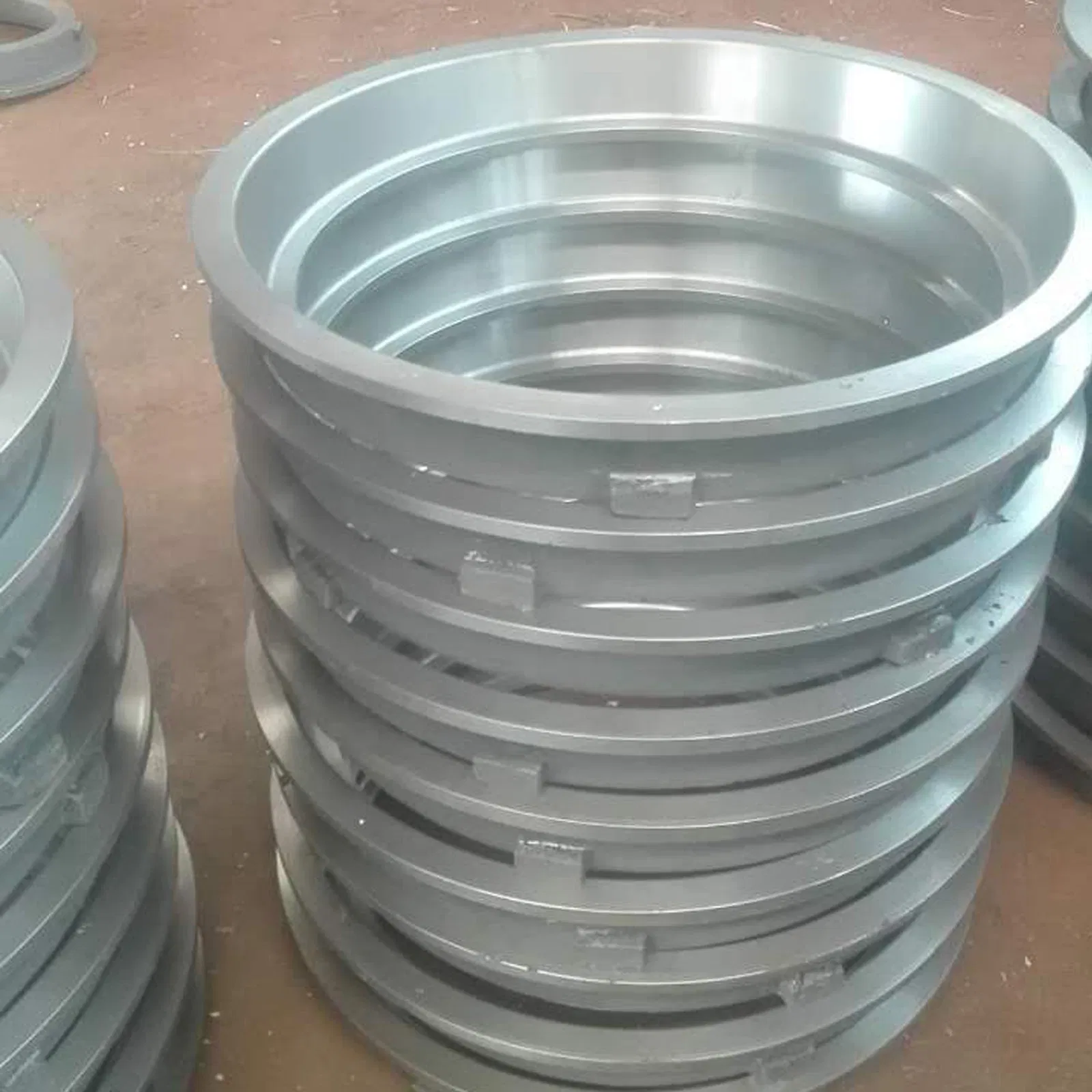

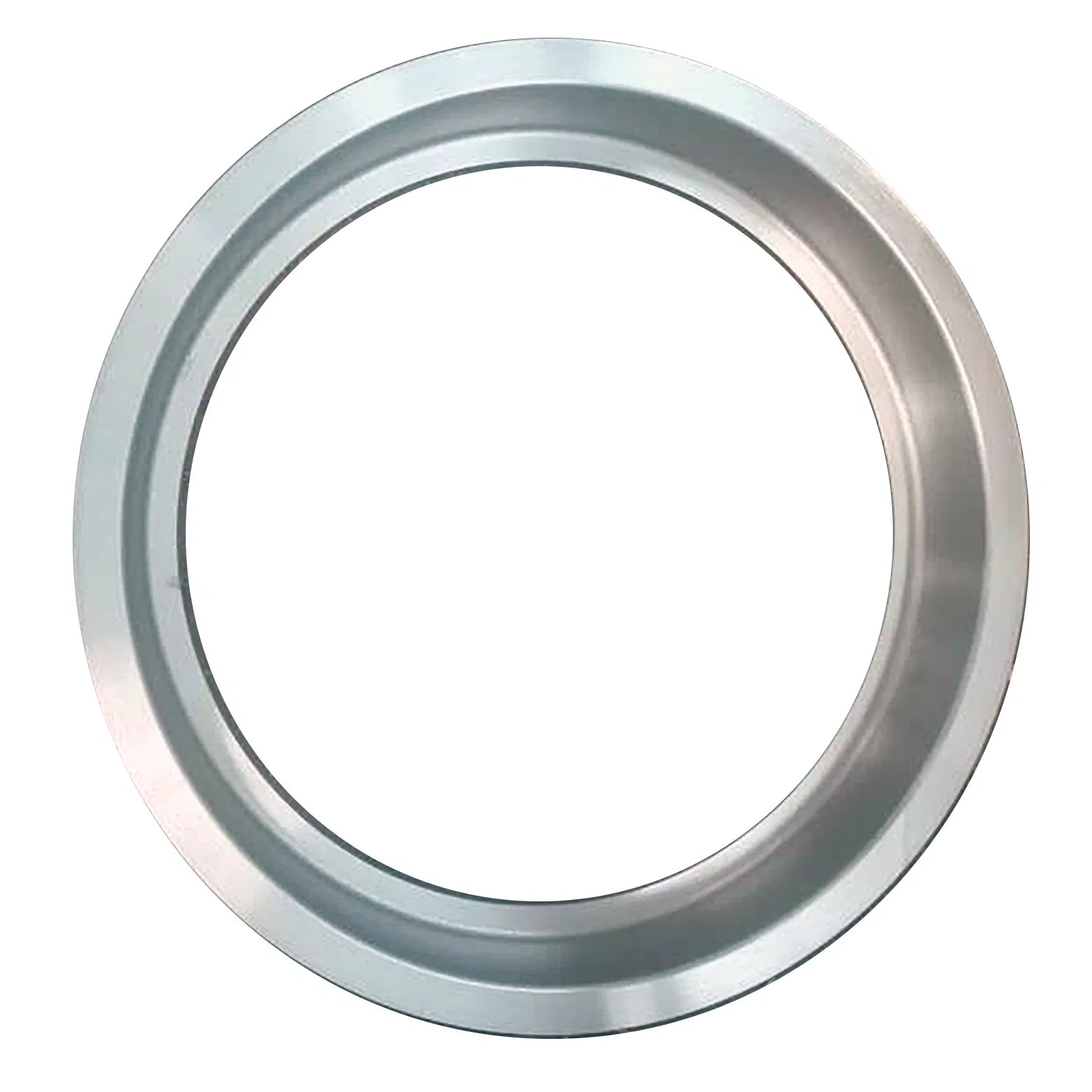

RCP PHC PCCP ductile iron concrete pipe mold formwork base plate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DN300

Sand Core Type

No sand core

Application

Concrete pipe mould part

Machining

CNC Machining

Material

Iron / Cast Steel

Surface Treatment

Polishing

Roughness

Ra3.2

Standard

Customer Defined

Joint Type

Flexible tongue & groove flush joint

Size Range

DN 225-1800mm

Production Capacity

3000 pieces/Year

HS Code

84802000

Product Description

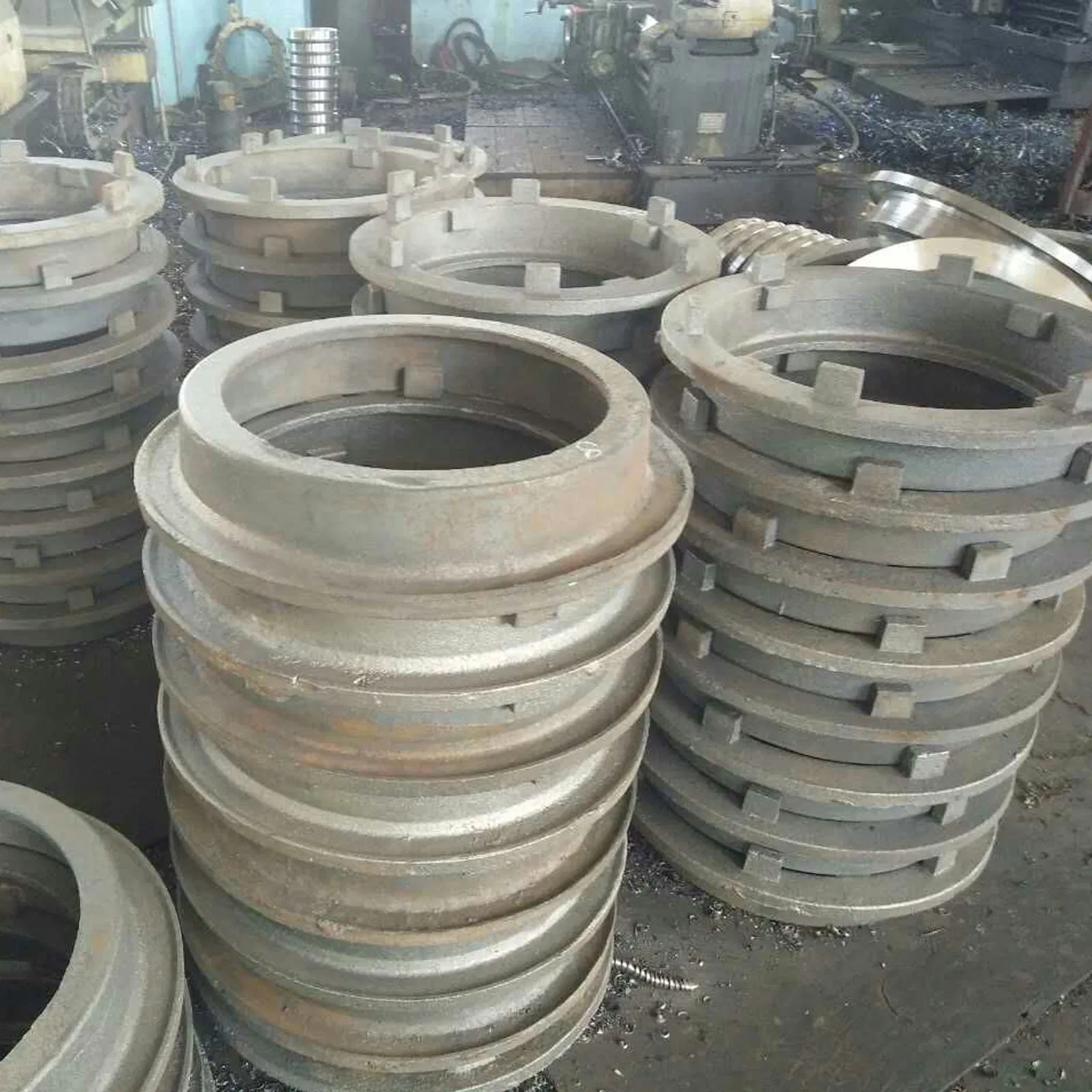

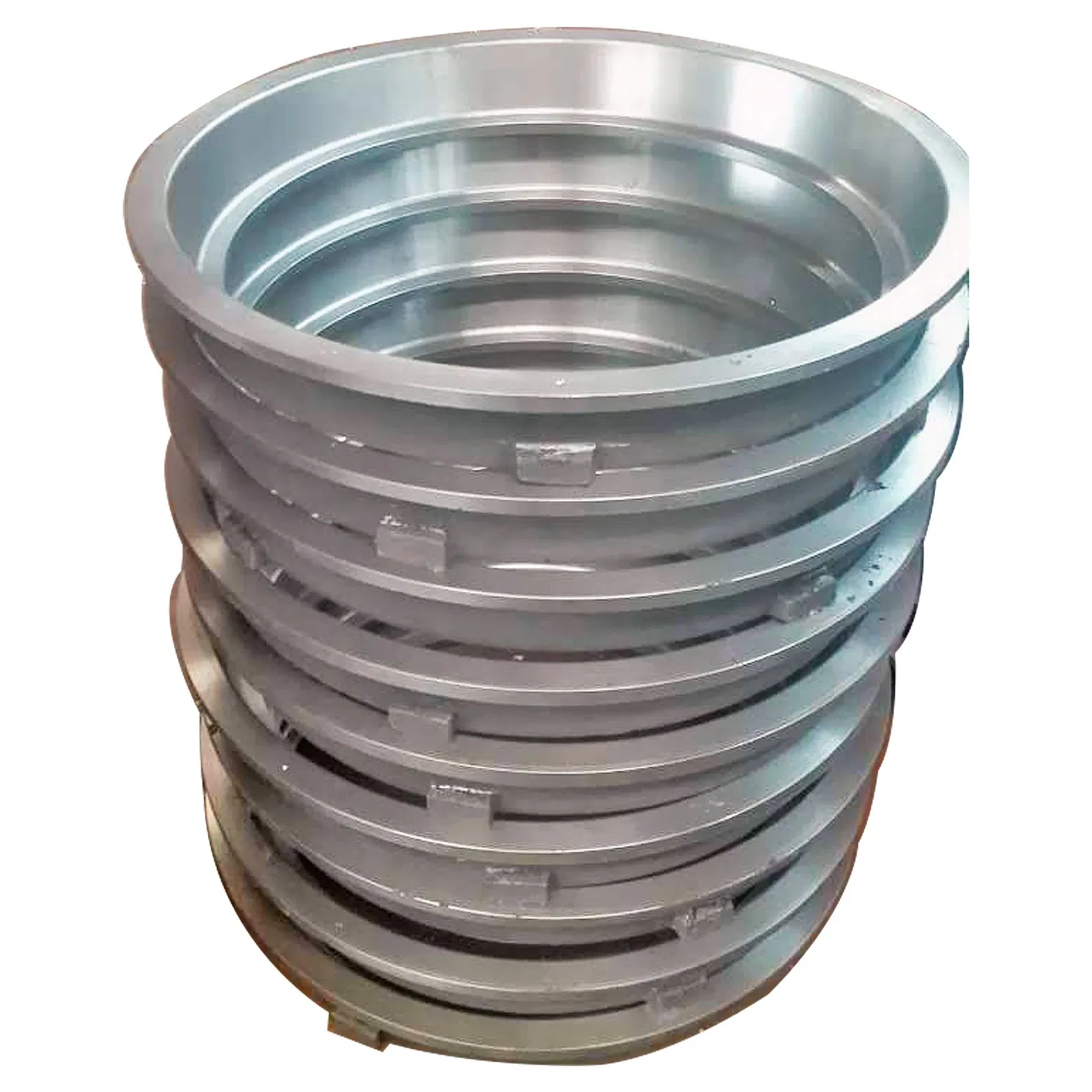

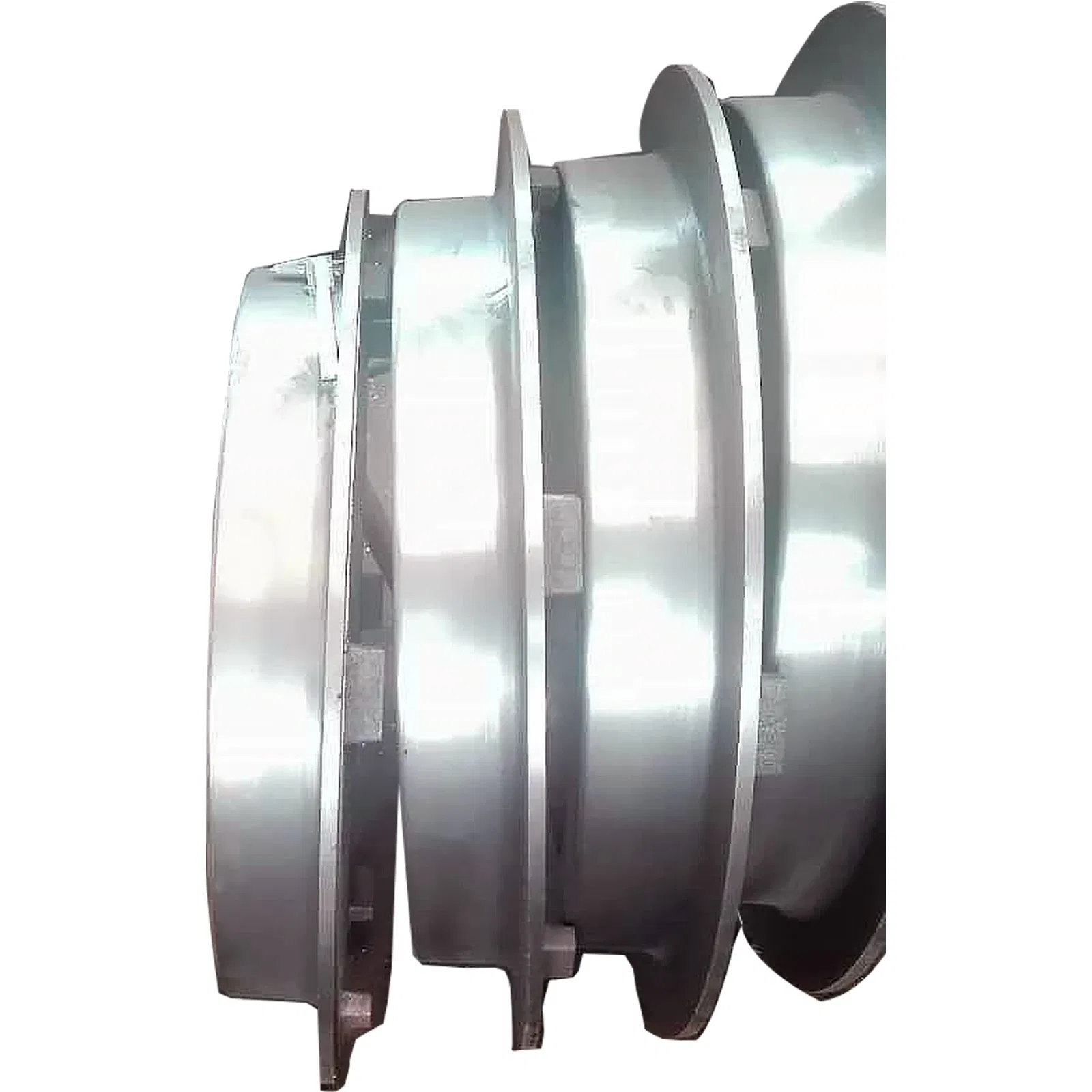

The pallet is a vital component of a reinforced concrete pipe mould used in vertical extrusion concrete pipe making lines. Crafted from premium cast steel, these pallets undergo a rigorous process of casting, annealing, and both rough and fine CNC machining. This ensures exceptional wear resistance, rigidity, and tenacity. With a surface roughness maintained below Ra3.2, the resulting concrete pipes feature a smooth, high-quality finish.

Material	Casting Tolerance	Melting Furnace	Machining Finish (Ra.)
30MnSiMo; ZG45#	+-0.5	Electric-arc furnace	≤3.2

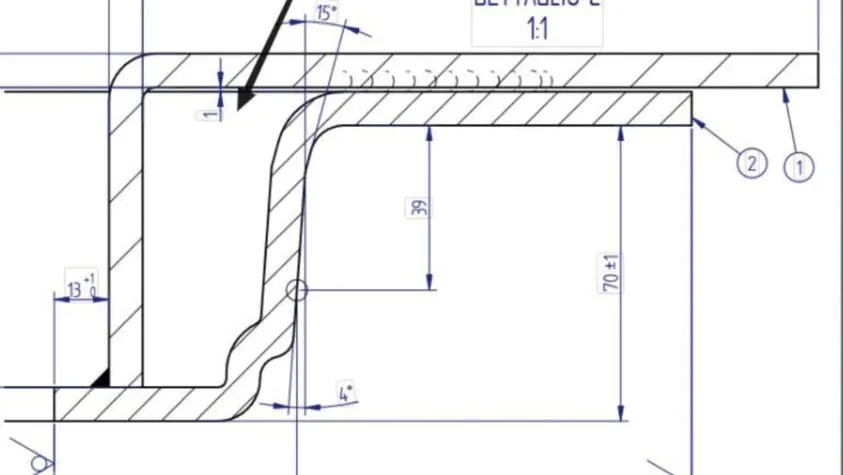

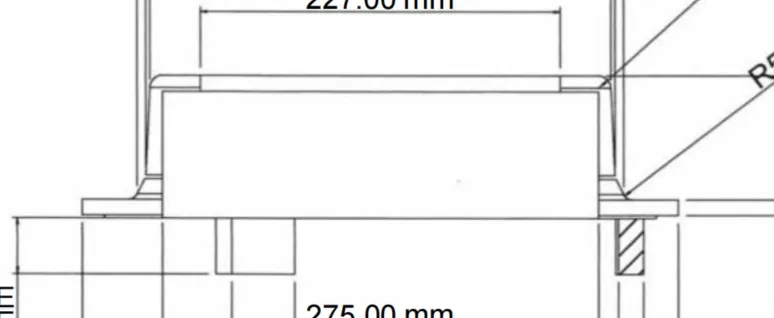

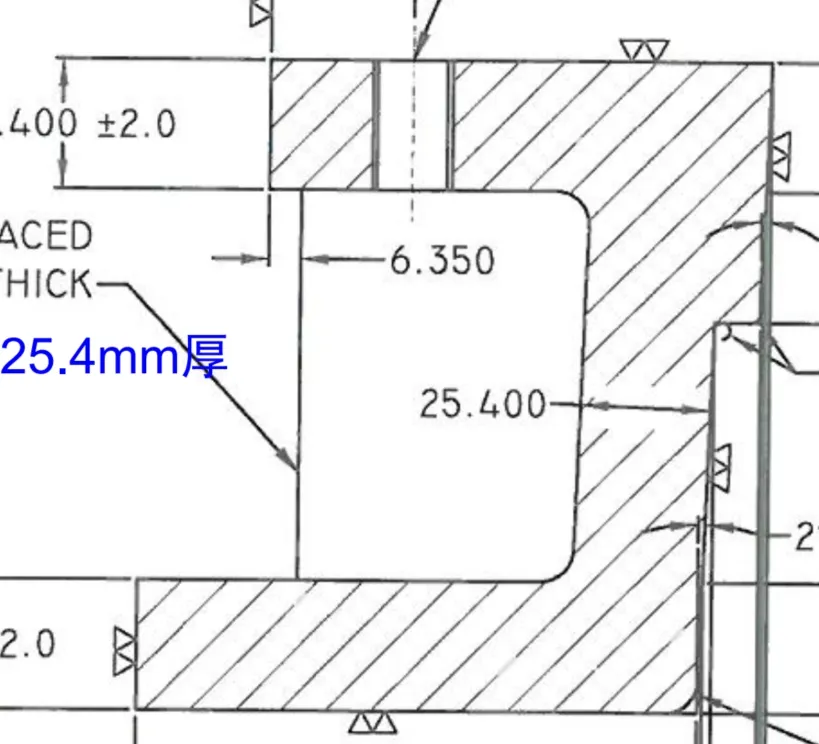

Customized Solution: Send us your dimension drawings for perfect pallets, bottom rings, and joint rings.

Available Specifications

Over 7,000 PCS produced and delivered to international customers.

Flush Joint		Rubber Ring Joint		Flush Joint (Oversize)
FJ225-S	225	RRJ225	225	FJ750-OS	750
FJ300-S	300	RRJ300	300	FJ900-OS	900
FJ450-S	450	RRJ450	450	FJ1200-OS	1200
FJ600-S	600	RRJ600	600	FJ1500-OS	1500
FJ900-S	900	RRJ900	900	FJ1800-OS	1800
FJ1200-S	1200	RRJ1200	1200	-	-
FJ1800-S	1800	RRJ1800	1800	-	-

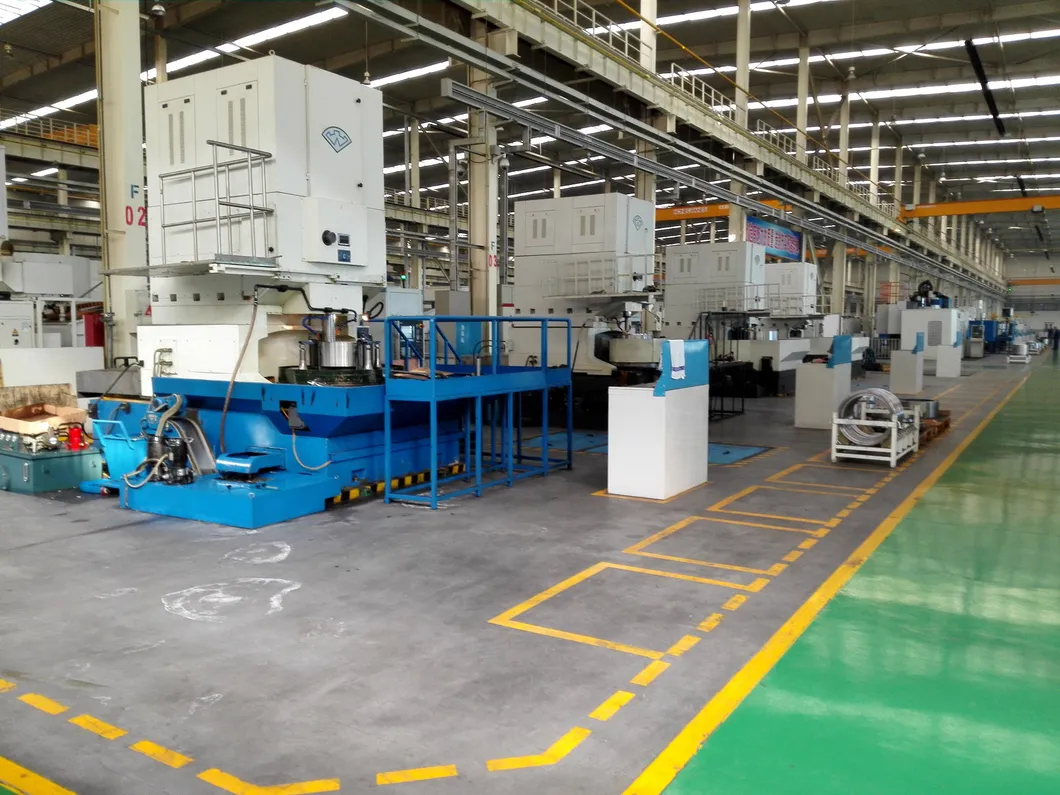

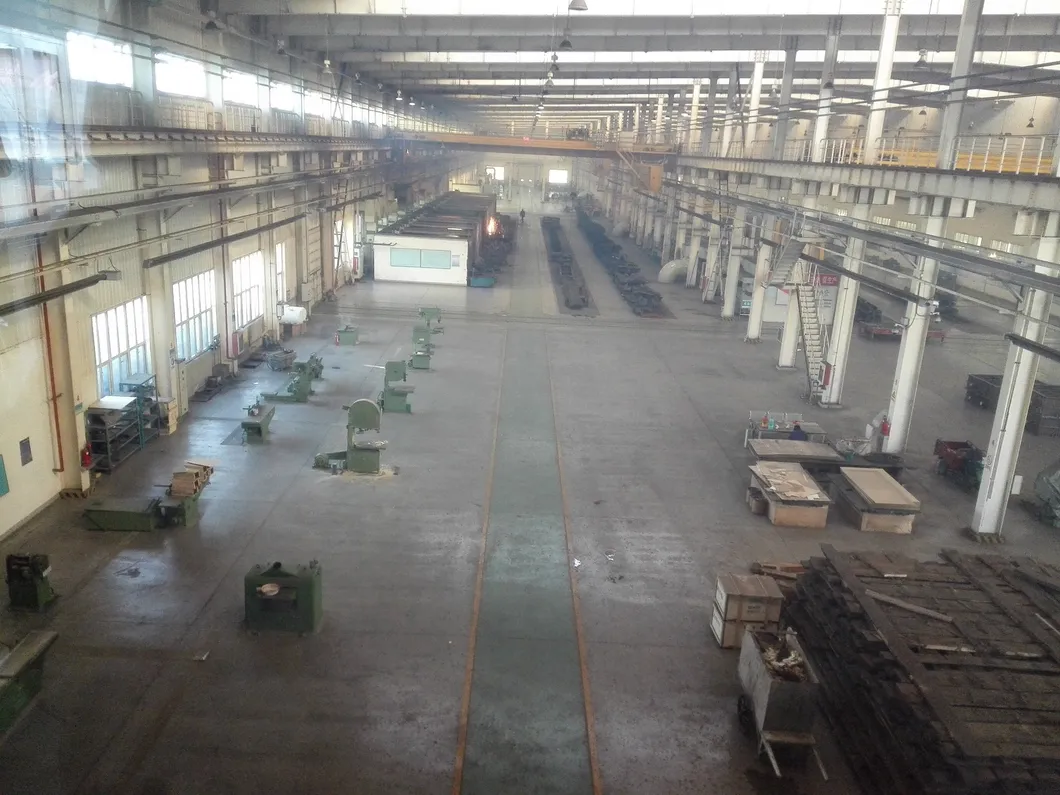

Factory Facilities

Application Field

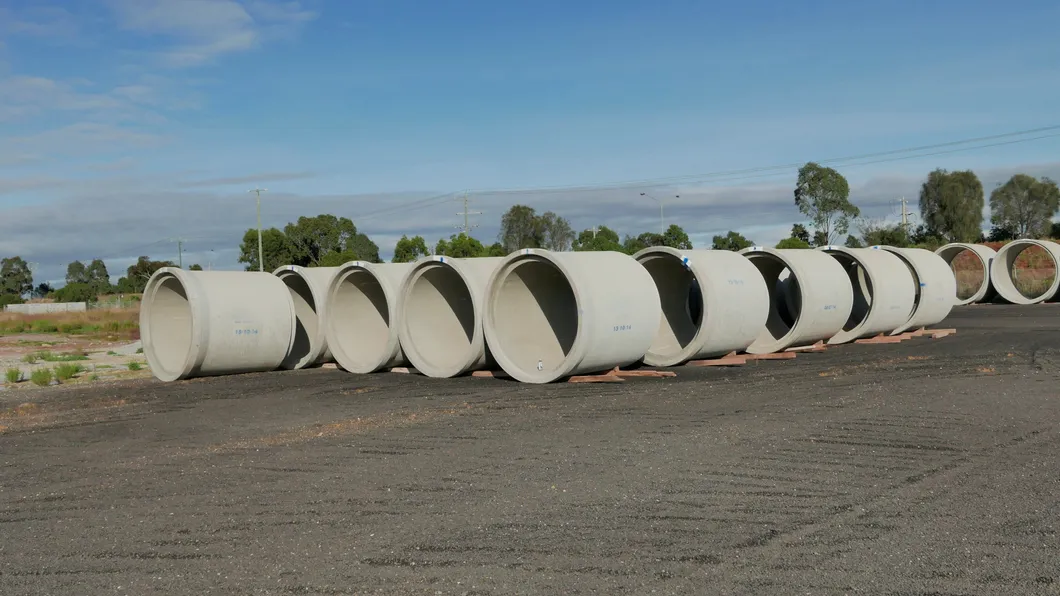

Display of finished reinforced concrete pipes produced using our precision moulds and pallets.

Frequently Asked Questions

What materials are used for the concrete pipe pallets?

Our pallets are manufactured using high-quality cast steel, specifically 30MnSiMo or ZG45#, ensuring durability and wear resistance.

What is the surface roughness of the finished product?

Through fine CNC machining, we achieve a surface roughness of less than Ra3.2, resulting in smooth concrete pipe surfaces.

Can you customize the pallets based on specific drawings?

Yes, we specialize in custom manufacturing. You can provide your dimension drawings, and we will produce pallets or joint rings to your exact specifications.

What is your annual production capacity?

We have a production capacity of approximately 3,000 pieces per year to meet international demand.

What joint types do the moulds support?

We provide solutions for various joint types, including flexible tongue and groove, flush joints, and rubber ring joints.

Are the pallets heat-treated?

Yes, all pallets undergo an annealing process after casting to enhance their rigidity and tenacity.
