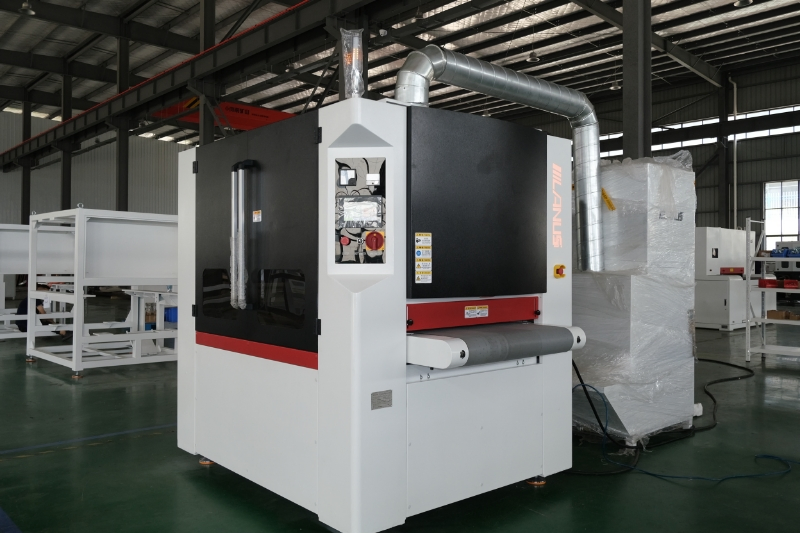

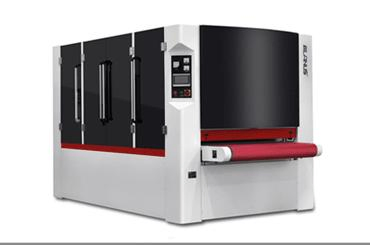

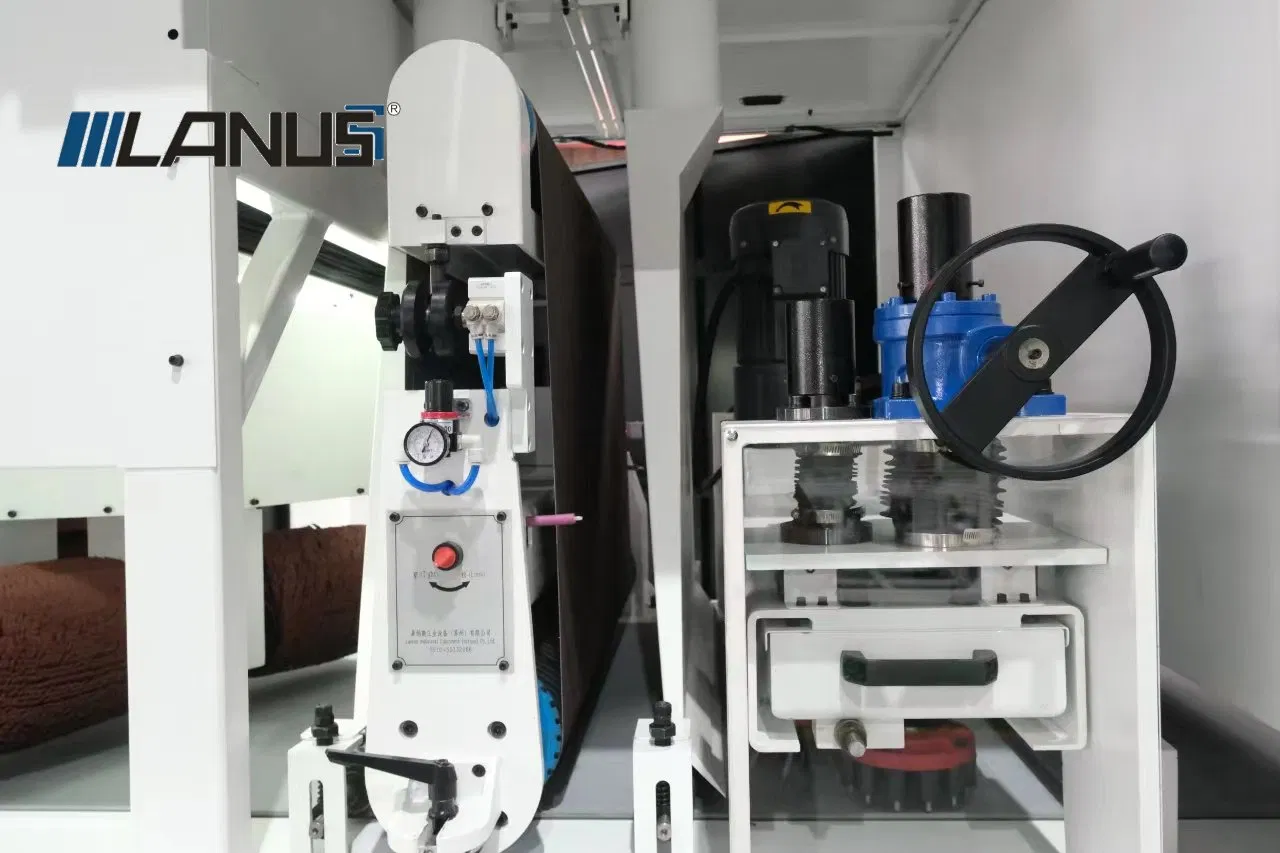

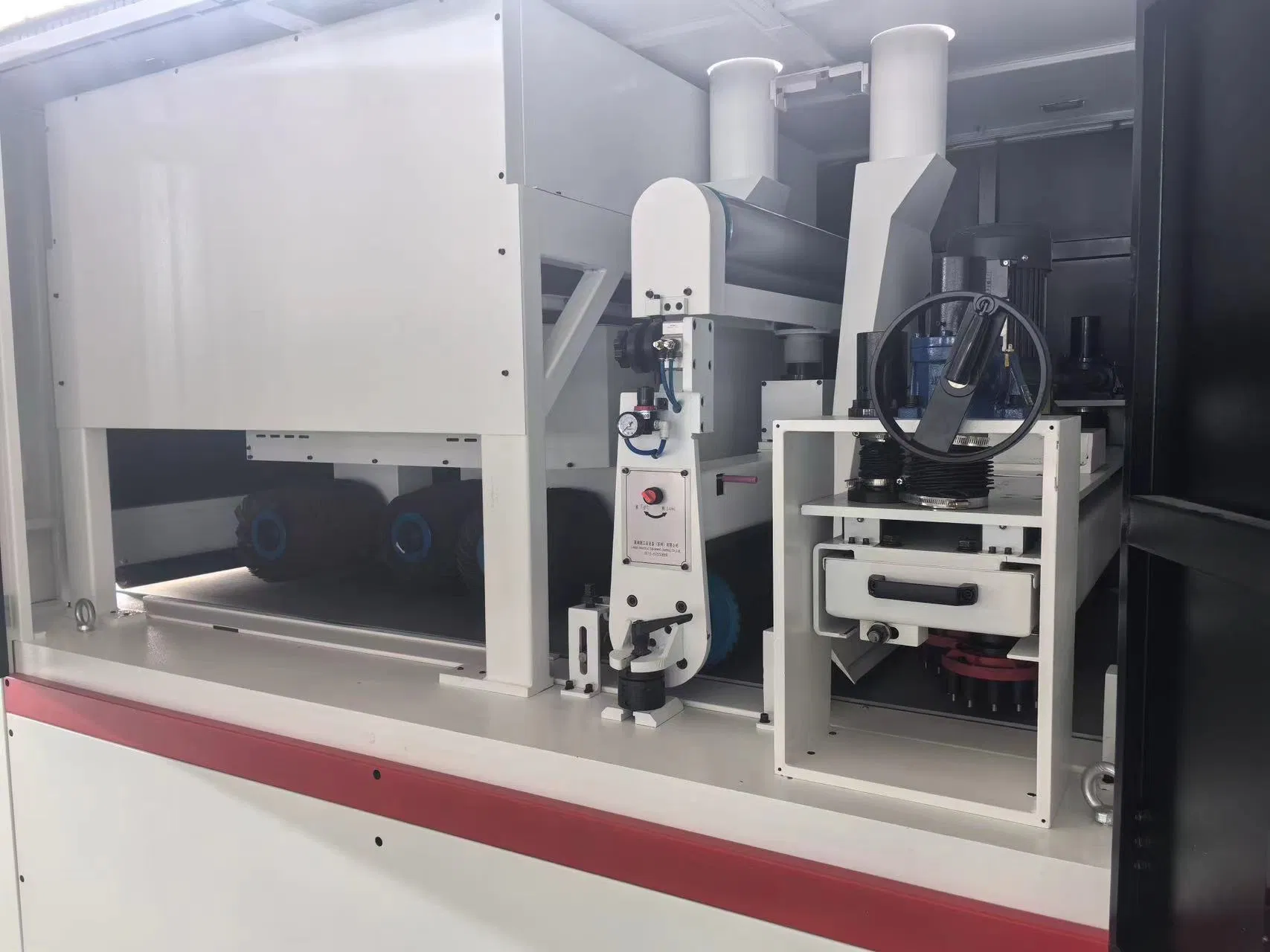

33 Series Metal Deburring Machine

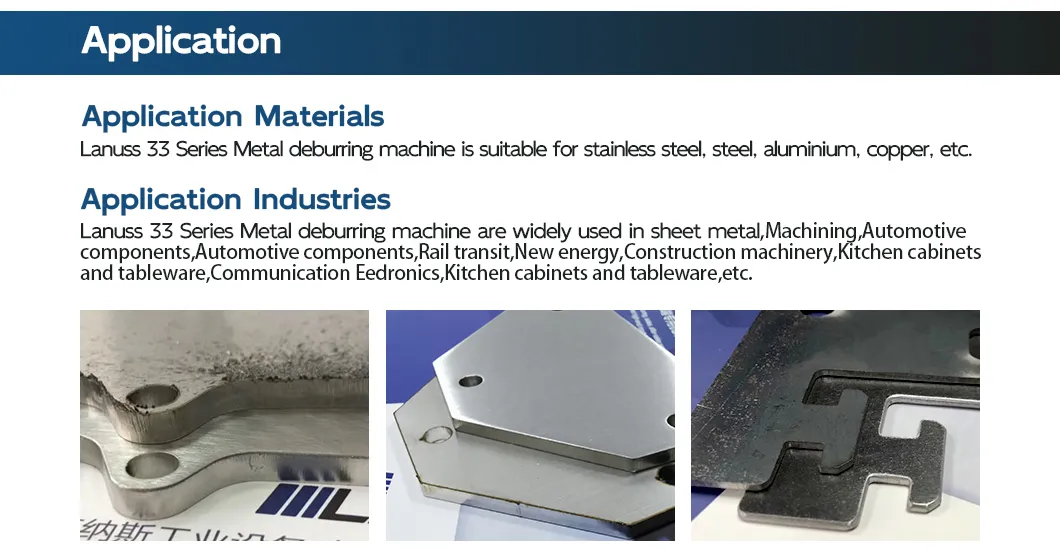

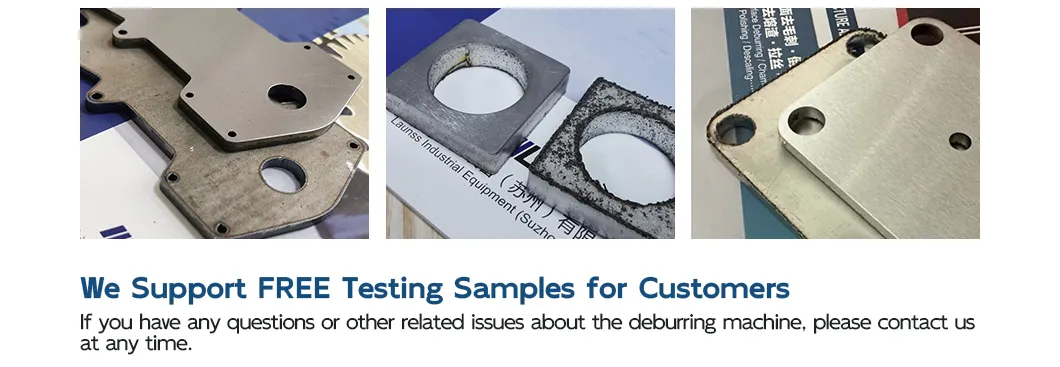

1. Applicable scope of equipment: Suitable for flat plate parts, carbon steel plate, stainless steel plate, aluminum plate, copper plate, titanium alloy, all kinds of non-ferrous metals, rubber and plastic materials.

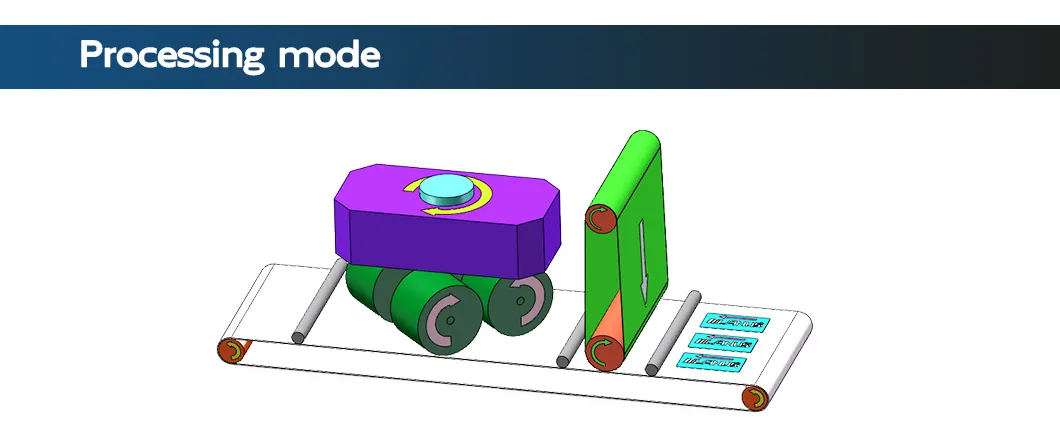

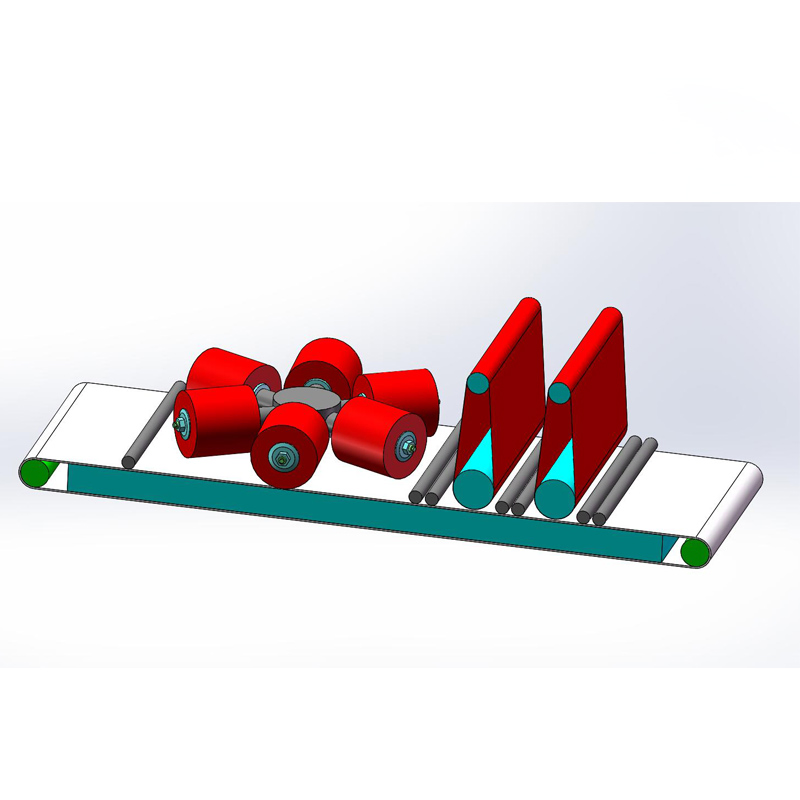

2. Equipment function: Pre-grinding, drawing, polishing, scratching, deburring, chamfering, etc. for laser cutting, shearing, punching, cutting, and plasma cutting.

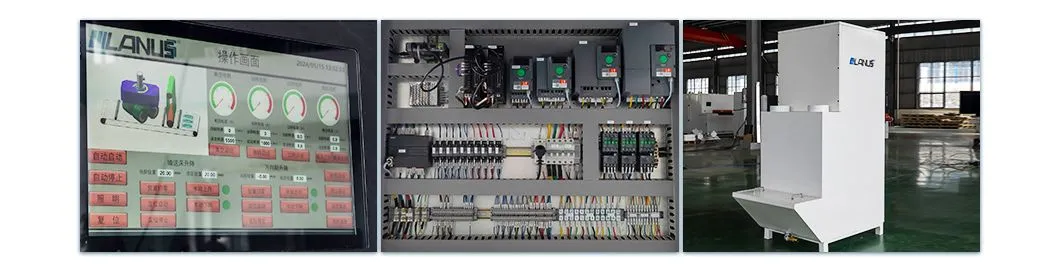

1. Siemens PLC Touch Screen: Support English interface.
2. Famous Brand Components: Electric Systems, NSK bearings, etc.
3. Dust Collector: Specially designed for deburring and polishing processes.
| Specifications | Details |
|---|---|
| Model NO. | 33 Series-H800 |
| Working width | ≤800mm |
| Workable Material Thickness | 0.5-80mm |
| Minimum processing size | 30mmX30mm Holeless workpiece |
| Overall power | 15.25KW (No dust removal) |
| Sanding Belt Size | Φ1910mmX800mm |
| Brush Roller Size | Φ300mmX300mm |
| Conveyor feeding speed | 1~8m/min Variable Frequency Adjustable |
| Abrasive Belt Line Speed | 12m/s |

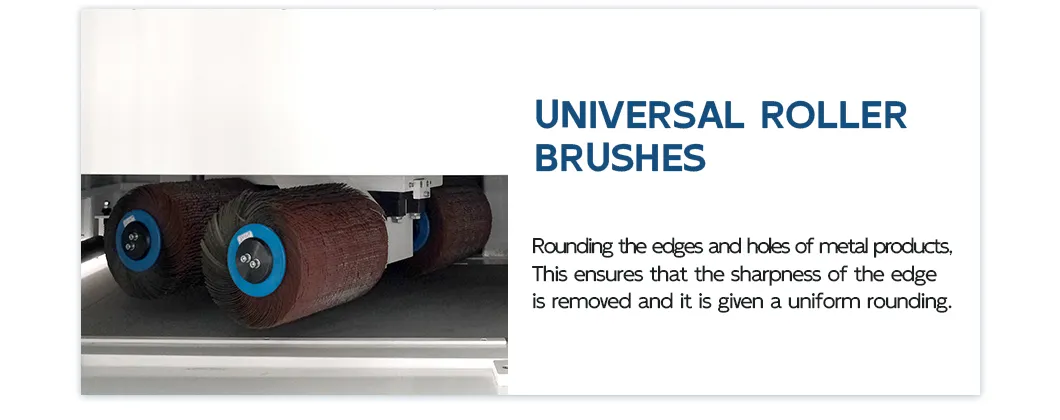

| Number of brushes | 4 |

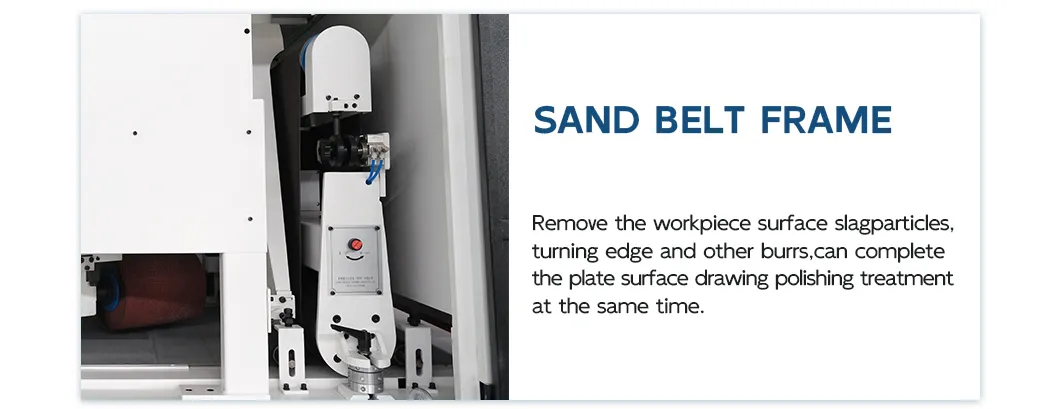

| Number of sanding belts | 1 |
| External dimensions | 2650mmX1750mmX2150mm |
| Dust removal air volume | 4000m³/h |
| Weight of the machine | About 2.5 tons |
1. Overseas after-sales service is available.
2. 1 year warranty.
3. Foundation drawings, manual book, electric wiring diagram, and maintenance book provided.
4. Over 20 agents overseas providing technical services.
