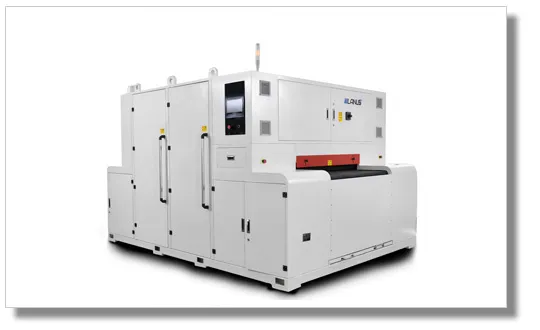

🛠️ Product Overview

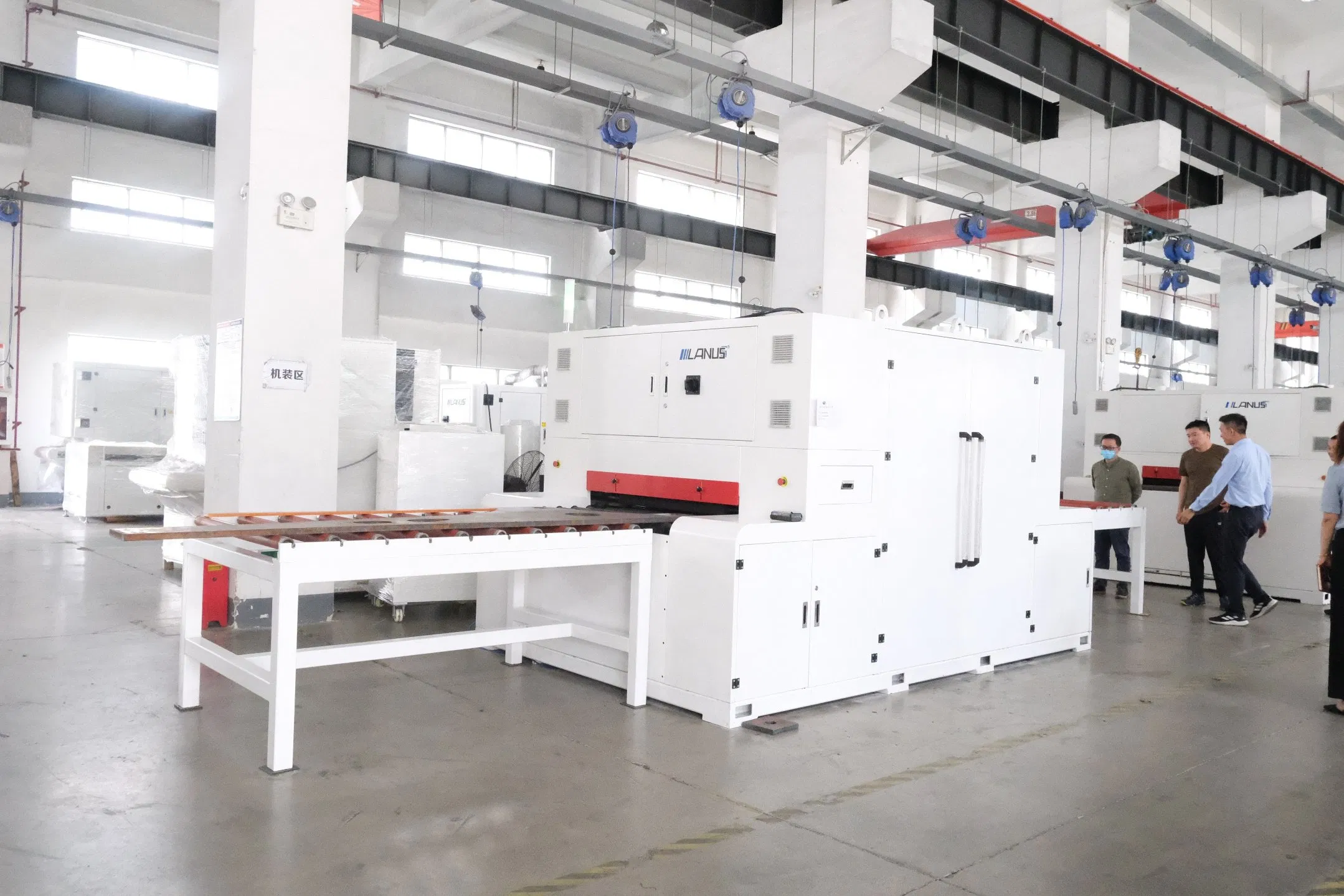

The LSB series includes wide/narrow sand belt and abrasive belt configurations (offering single or double-sided multi-station combined grinding). This equipment is designed to achieve uniform removal of slag burrs formed by various processes including laser cutting, shearing, plasma cutting, flame cutting, and stamping.
📏 Processing Capabilities:
- Available Widths: 800mm, 1000mm, 1350mm, 1600mm, 2000mm, 2200mm
- Workable Thickness: 1 - 100 mm
- Applications: Surface pre-grinding, hole deburring, edge corner rounding, and surface drawing.
📥 Feeding Modes

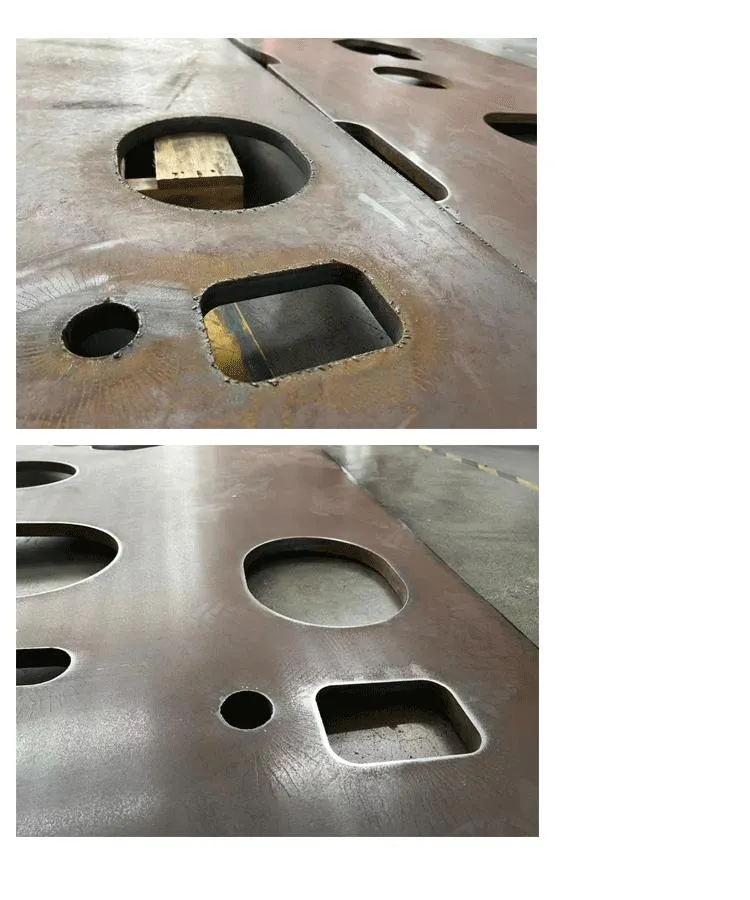

- Conveyor Belt + Rubber Roller Clip: Ideal for ordinary workpieces with a length ≥150 mm.
- Strong Permanent Magnet Adsorption: Specifically for carbon steel workpieces. Supports sizes ≥10 mm × 10 mm.
- Vacuum Negative Pressure Adsorption: Designed for non-magnetic materials like stainless steel, copper, and aluminum plates. Supports sizes ≥50 mm × 50 mm.

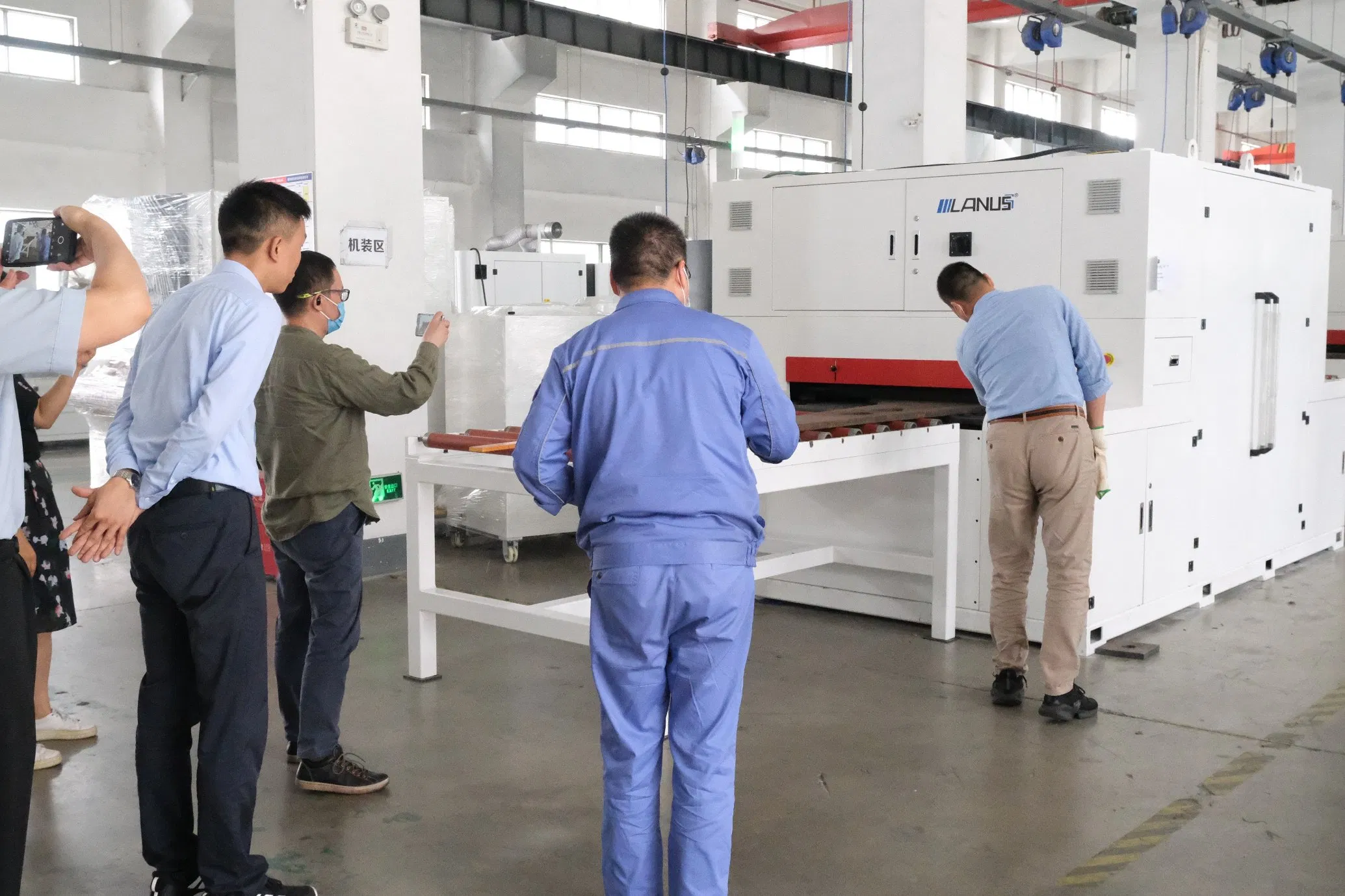

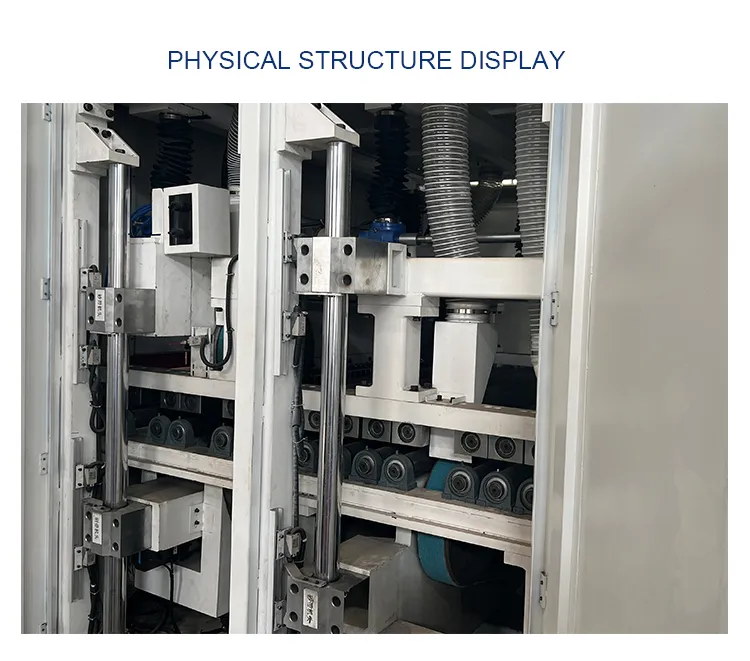

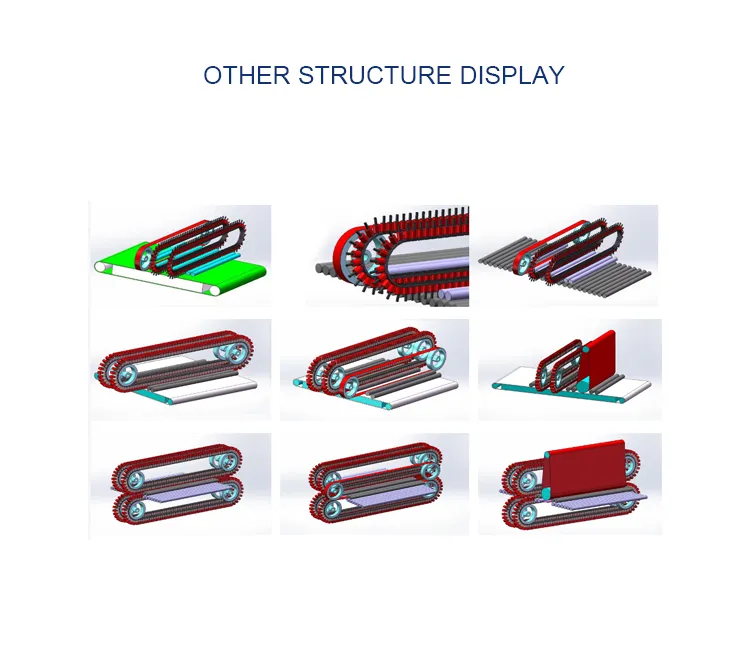

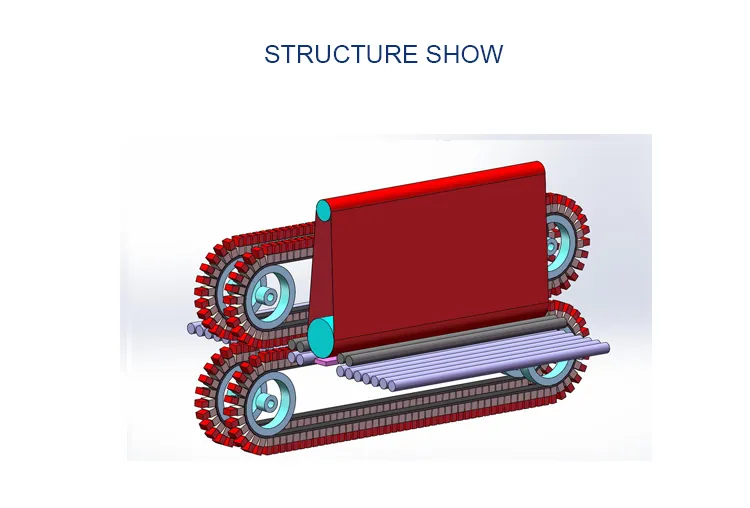

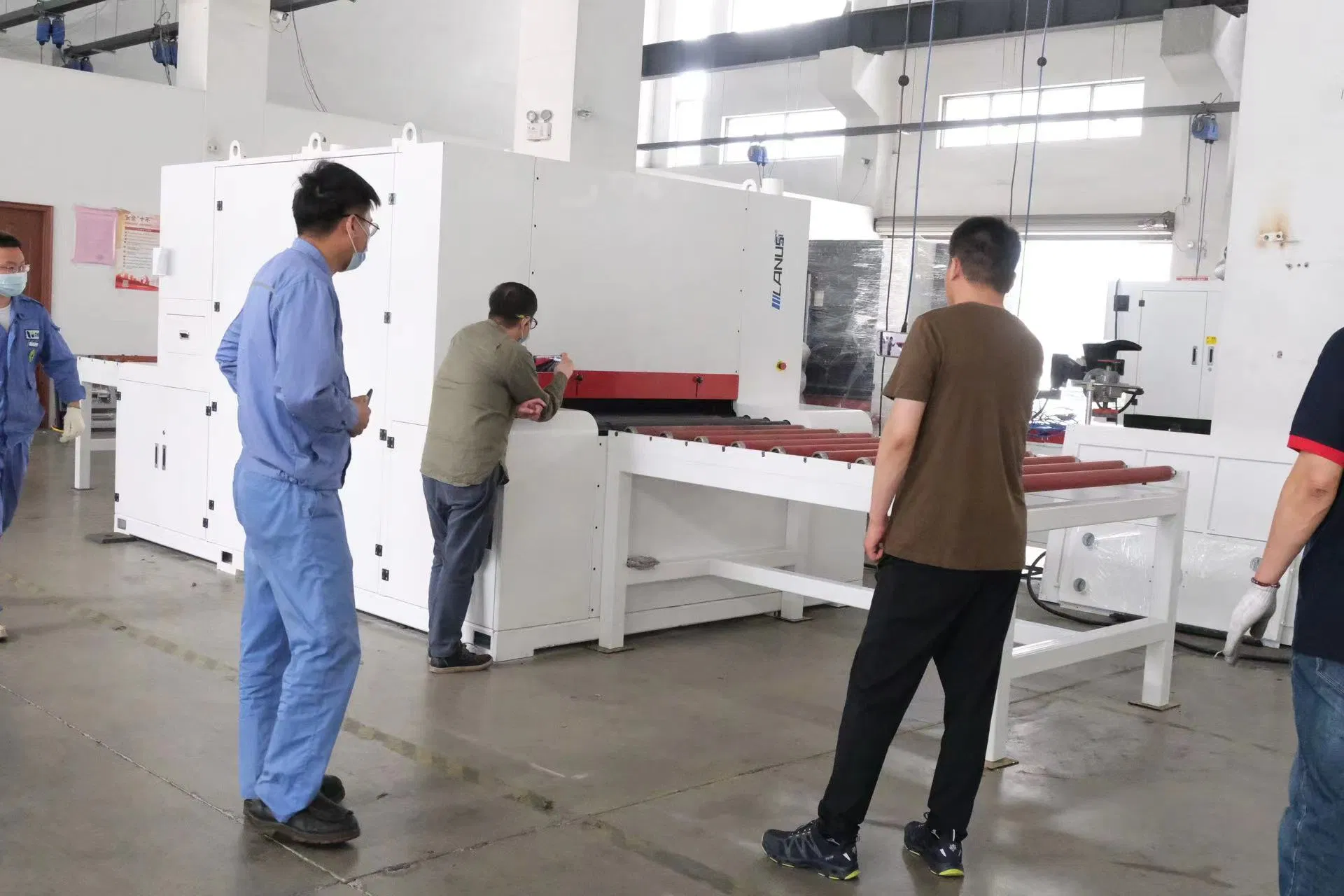

📸 Operation & Component Display
❓ Frequently Asked Questions
What types of burrs can the LSB series remove?
The equipment efficiently removes slag burrs formed by laser cutting, shearing, plasma cutting, flame cutting, and stamping cutting.
What is the maximum material thickness the machine can handle?
The machine is capable of processing materials with a thickness ranging from 1mm up to 100mm.
Does the machine support non-magnetic materials?
Yes, by using the Vacuum Negative Pressure Adsorption feeding mode, it can process stainless steel, copper, and aluminum plates.
What are the available processing widths?
We offer multiple width options: 800mm, 1000mm, 1350mm, 1600mm, 2000mm, and 2200mm.
What certifications does the LSB series have?
The equipment is fully certified with CE and ISO standards, ensuring high quality and safety compliance.
Can the machine perform surface drawing?
Yes, besides deburring and edge rounding, the LSB series is suitable for surface pre-grinding and surface drawing processes.
