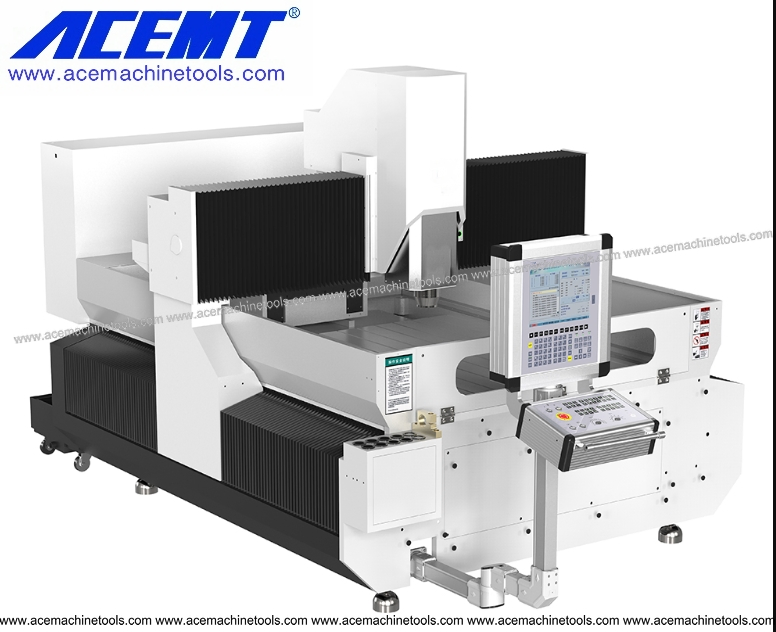

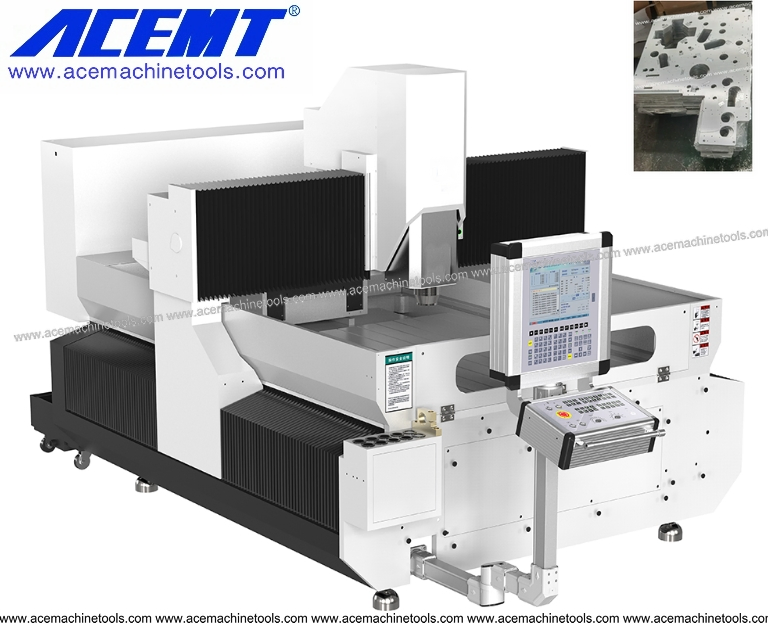

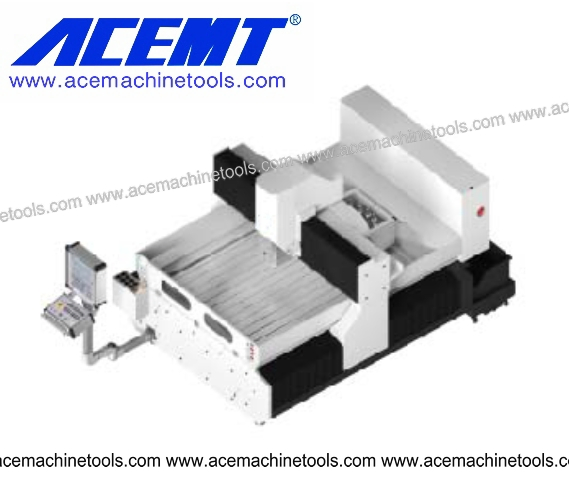

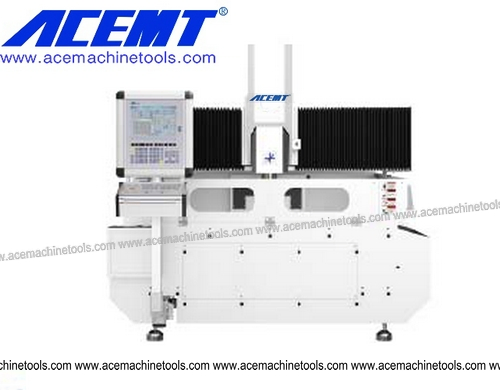

CNC High Speed Aluminum Plate Engraving Router and Milling Machine (LGM-1313)

1 / 5

CNC High Speed Aluminum Plate Engraving Router and Milling Machine (LGM-1313)

Customization:	Available
After-sales Service:	Online Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.LGM-1313

ApplicationMetal

Process UsageMetal-Cutting CNC Machine Tools

Movement MethodLinear Control

Control MethodClosed-Loop Control

Numerical ControlCNC/MNC

PerformanceMid-Range CNC Machine Tools

CertificationCE, ISO 9001

ConditionNew

HS Code8459619000

OriginChina

PackageWood Packing

Product Description

CNC High Speed Aluminum Plate Engraving Router and Milling Machine (LGM-1313)

Through computer simulation and analysis, machine structure design has been optimized to improve assembly processes. By selecting high-quality accessories and undergoing strict quality inspections—including more than 72 hours of test runs—the HGM series delivers exceptional machining performance and accuracy.

The LGM-13 series is a comprehensive high-speed CNC machine tool capable of drilling, tapping, grinding, polishing, and high-gloss milling. It is widely utilized in large substrate processing automation, insulating material processing, aluminum alloy chassis, large glass grinding, photovoltaic graphite plate processing, acrylic and PC panel processing, and precision fixture stamping mould processing.

Processing Capabilities:
• Non-metallic materials: ~60mm thickness

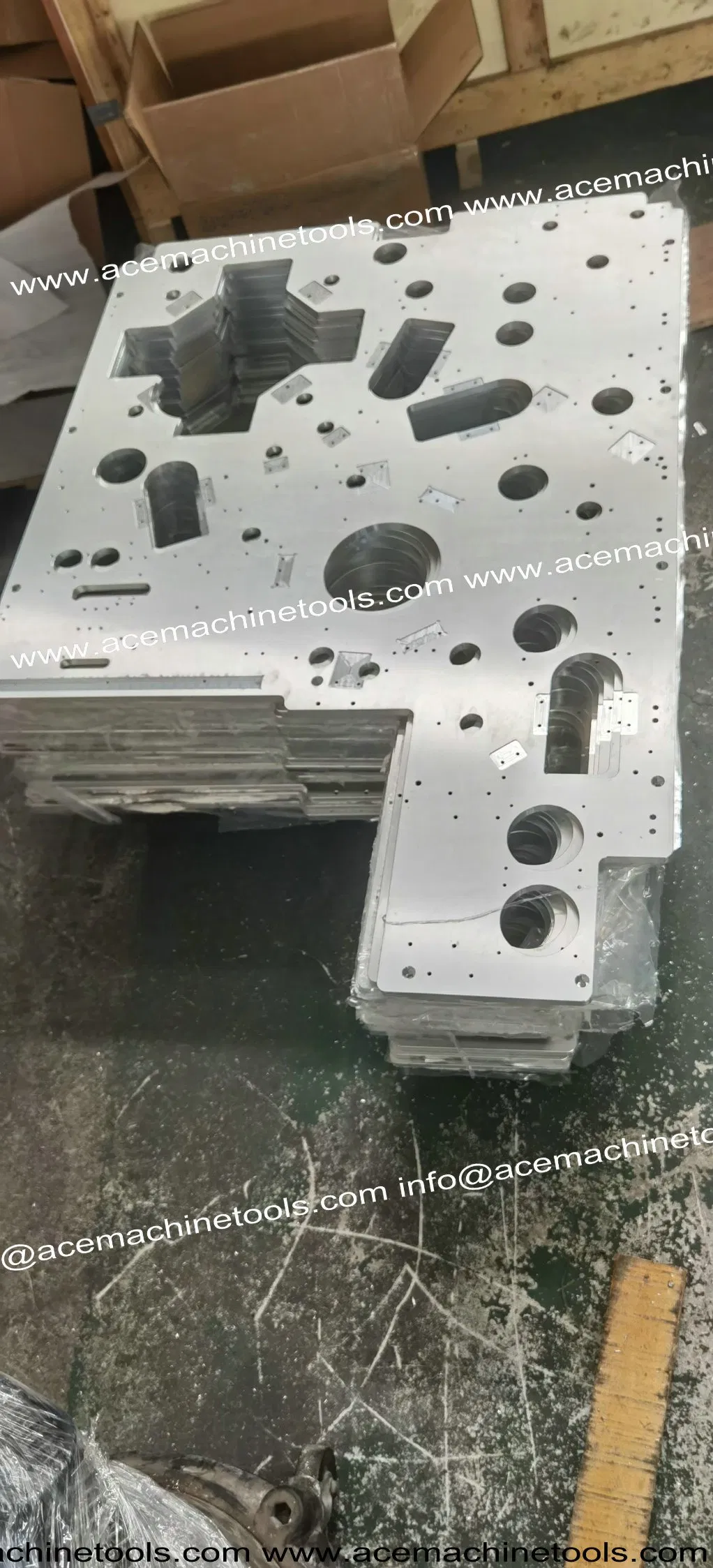

• Aluminum alloy and copper plates: ~30mm thickness
• Steel plate materials: ~10mm thickness
*(Data may vary based on specific product requirements)

Technical Index

Specification	LGM-1313	LGM-1320	LGM-1326
X/Y/Z Axis Motion Positioning Accuracy	0.02/0.02/0.01mm-300mm	0.025/0.025/0.01mm-300mm	0.02/0.03/0.01mm-300mm
X/Y/Z Repositioning Accuracy	0.015/0.015/0.008mm-300mm	0.015/0.020/0.008mm-300mm	0.015/0.025/0.008mm-300mm
X/Y/Z Axis Working Stroke	1300/1350/200mm	1300/2650/200mm	1500/3050/200mm
Table Size	1300*1350	1300*2650	1500*3050
Spindle Power	ISO25-3.0KW/BT30-4.5KW	ISO25-3.0KW/BT30-4.5KW	ISO25-3.0KW/BT30-4.5KW
Spindle Speed	120-30000rpm (Motor spindle) / 120-12000rpm (Mechanical)
Tool Magazine Capacity	10 (Servo sector magazine)
Max Cutting Speed	12m/min	12m/min	12m/min
Total Weight	3500kg	4200kg	5000kg

Standard Configuration

Sodium gram system electric spindle
Oil cooler & Enclosed servo tool house
Double flush bottom flush chip system
Wheel controller
Three-color alarm buzzer system
Tool setting system

Selectable Configuration

Micro oil and gas cutting lubrication
Cutting liquid cooling system
On-line inspection control system
Chain-plate chip removal system
Oil-water separation system
Central vacuum table system

Frequently Asked Questions

Q1: What materials can the LGM-1313 process? The LGM-1313 is highly versatile, capable of processing non-metallic materials (up to 60mm), aluminum alloys and copper plates (up to 30mm), and steel plates (up to 10mm).

Q2: What are the primary industrial applications for this machine? It is widely used for aluminum alloy chassis, photovoltaic graphite plates, acrylic panels, medical engineering plastics, metal sculptures, and stamping mould processing.

Q3: How accurate is the positioning of the HGM series? The machine offers high precision with an X/Y/Z axis motion positioning accuracy of approximately 0.02mm and repositioning accuracy as fine as 0.008mm.

Q4: Does the LGM-1313 support automatic tool changes? Yes, it comes equipped with a servo sector tool magazine with a 10-tool capacity to facilitate efficient, automated workflows.

Q5: What are the power and air supply requirements? The machine requires a triphasic 380V/50HZ operating voltage and an air supply pressure of ≥0.6MPa.

Q6: How is the machine durability ensured during production? Each unit features a pure cast iron structure, undergoes computer-simulated structural optimization, and completes a rigorous 72-hour continuous test run before shipment.
