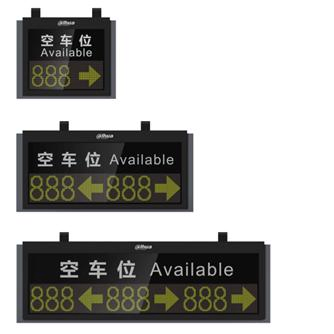

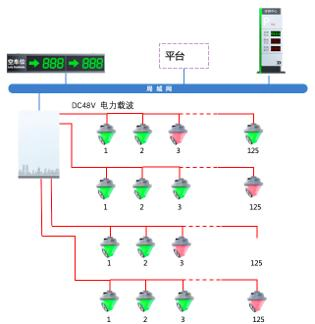

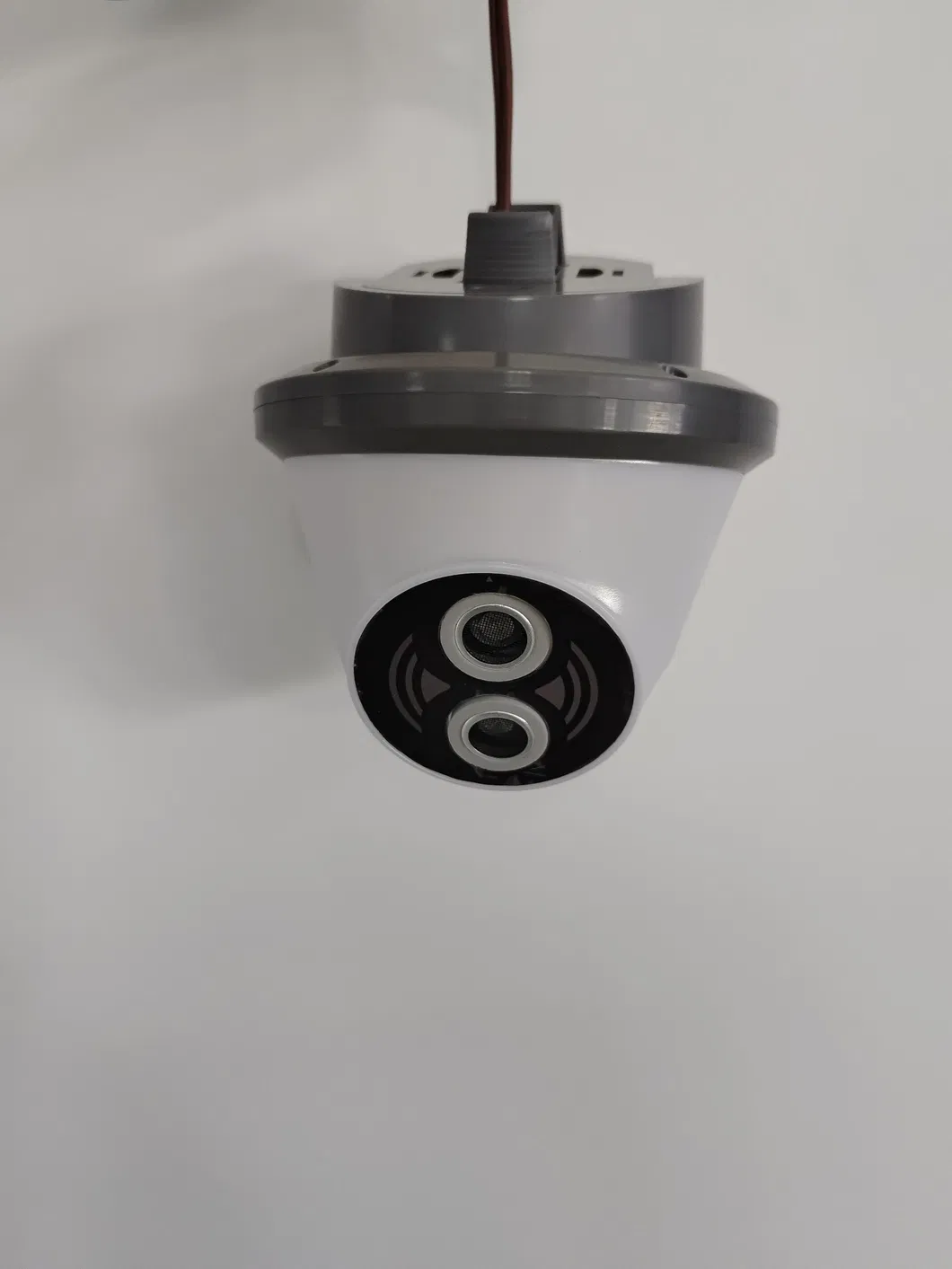

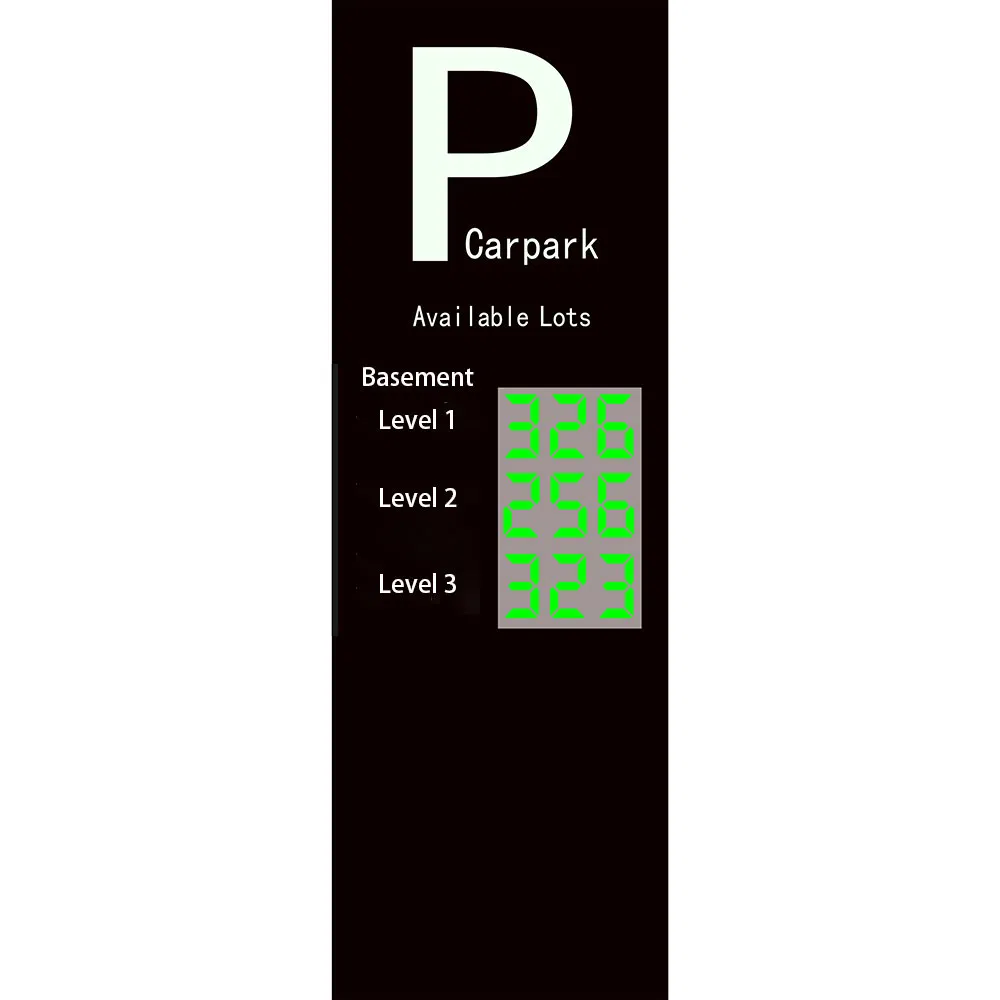

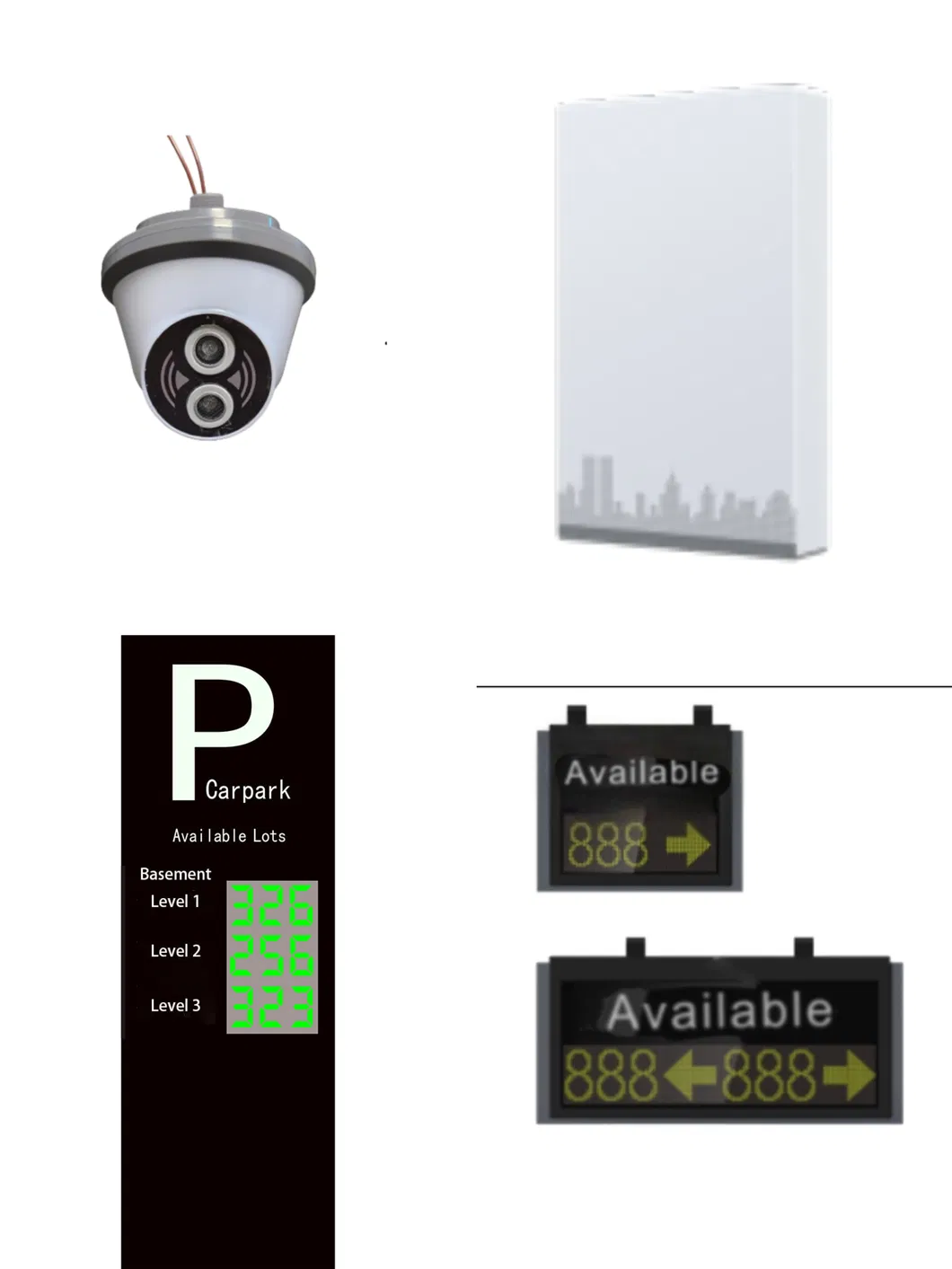

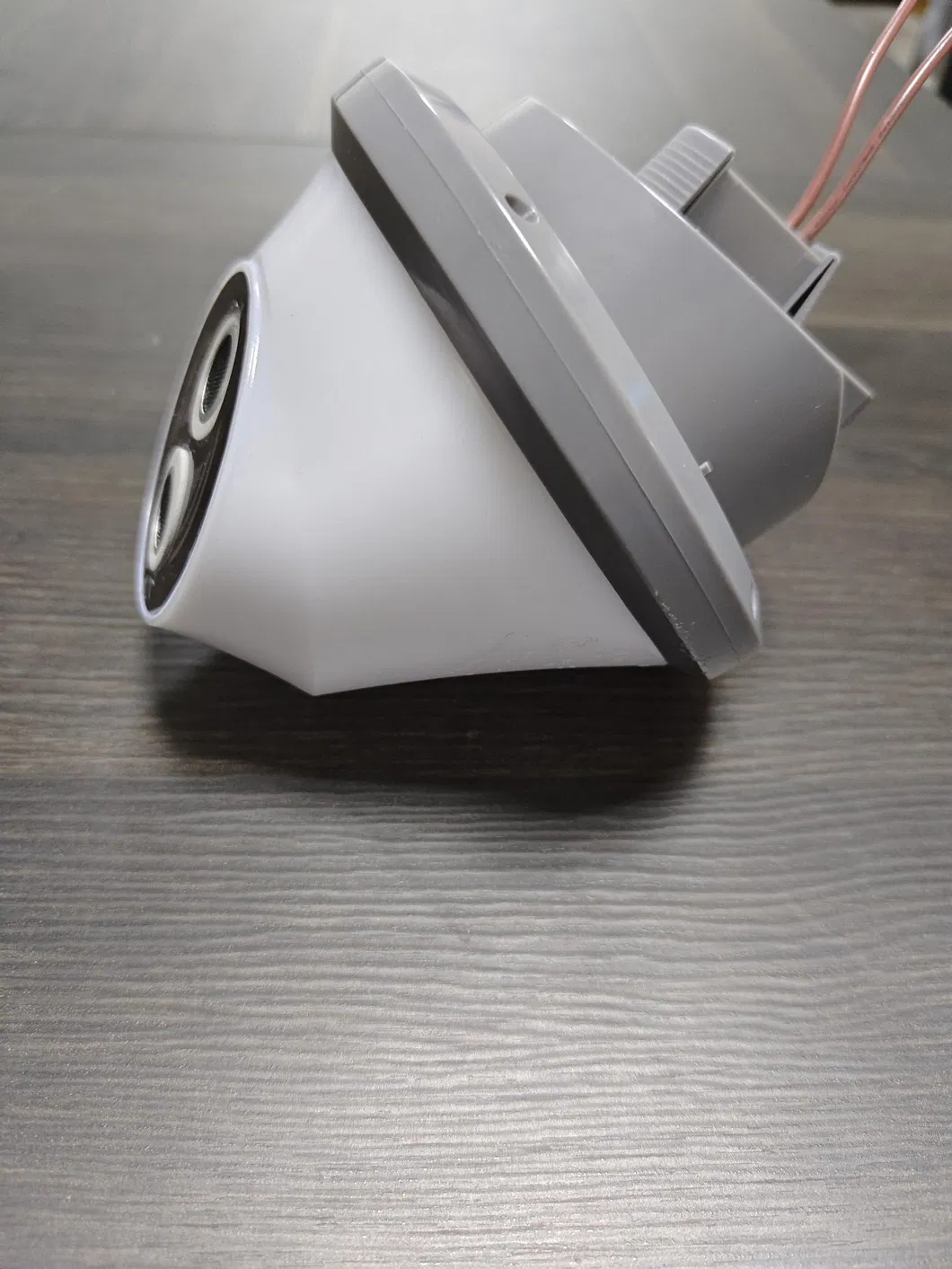

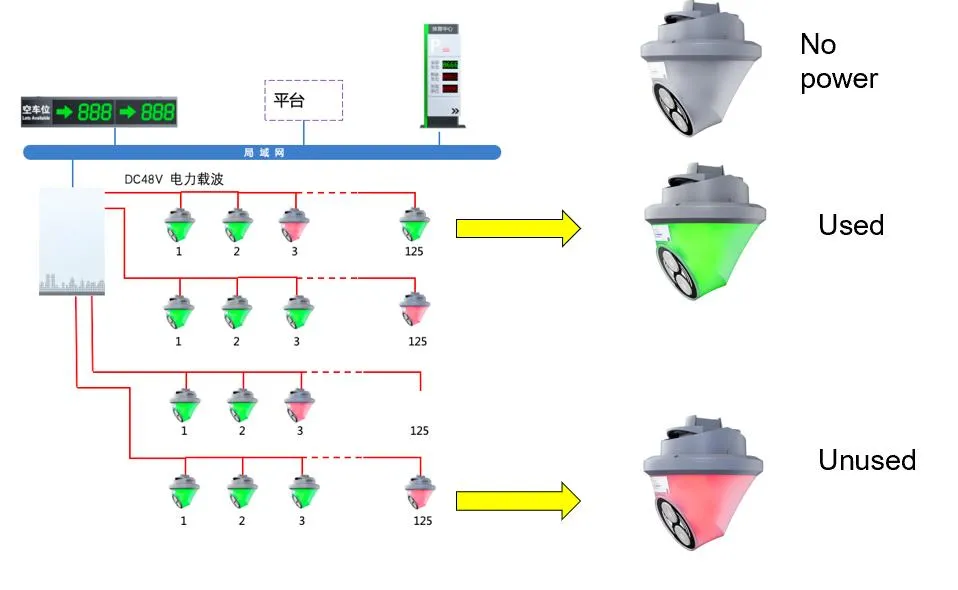

The ultrasonic detector is installed above each parking space to detect real-time status and transmit data to the gateway via electric power signals. The system realizes overall management by reporting to the PC server, controlling guidance screens for drivers.
| Parameter Item | Specifications |
|---|---|
| Viewing Distance | 20 meters |
| Detection Distance | 1-4 m (Configurable) |
| Status Display | Red, Green, Blue Supported |
| Debugging Mode | Infrared, PC debugging |
| Power Supply | DC48V Hand-in-hand |
| Communication | Power Line Carrier Bus |
| Installation | Bridge Opening Φ 22, Clip |
| Adjustable Angle | ±15 degrees (Horizontal/Vertical) |
| Bare Device Size | 116.4mm * 129.6mm (D x H) |
| Package Size | 120mm * 120mm * 135mm (L x W x H) |
| Bare Weight | 175g ± 15g |
| Product Gross Weight | 230g ± 15g |
We are a high-tech enterprise specialized in parking automation equipment research, development, and production. Our core strength lies in providing customized machine modules and platform-level project development for intelligent urban parking solutions.
Entry/Exit systems, LPR/ANPR technology, Parking Meters, Guidance Systems, and Auto Pay Stations used in commercial complexes, residential quarters, and government agencies worldwide.
